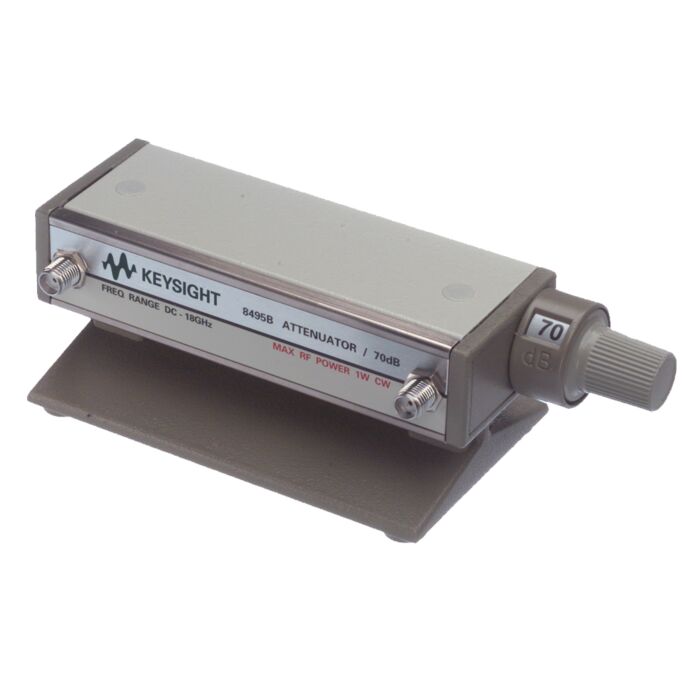

Keysight 8495B Manual Attenuator, 18GHz, 70dB, 10dB Steps
Manual Attenuator,18GHz,70dB 10dB Steps

Order #: 8495B

Mfg #: 8495B

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,759.00

Keysight 8495B Manual Attenuator, 18GHz, 70dB, 10dB Steps

Manual Attenuator,18GHz,70dB 10dB Steps

Order #: 8495B

Mfg #: 8495B

$1,759.00
Availability: Ships in 4-6 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This item is available as RENTAL at
Call for price
Shop now
This item is available USED at
$499.00
Shop now

Product Highlights

  • Frequency Range: dc to 18 GHz
  • Insertion Loss at 0 dB: 0.4 dB + 0.07 dB/GHz
  • Maximum SWR: 1.35 to 8 GHz, 1.5 to 12.4 GHz, 1.7 to 18 GHz
  • Repeatability life: 0.03 dB max 5 million cycles per section, typical
  • 5 million cycles per section
  • Maximum RF Input Power: 1 W (average), 100 W (peak)
  • Connector Type: choice of Type-N female, SMA female, APC-7
  • Connect in series with 11716A Attenuator Interconnect Kit, Type-N
  • Connect in series with 11716C Attenuator Interconnect Kit, SMA
