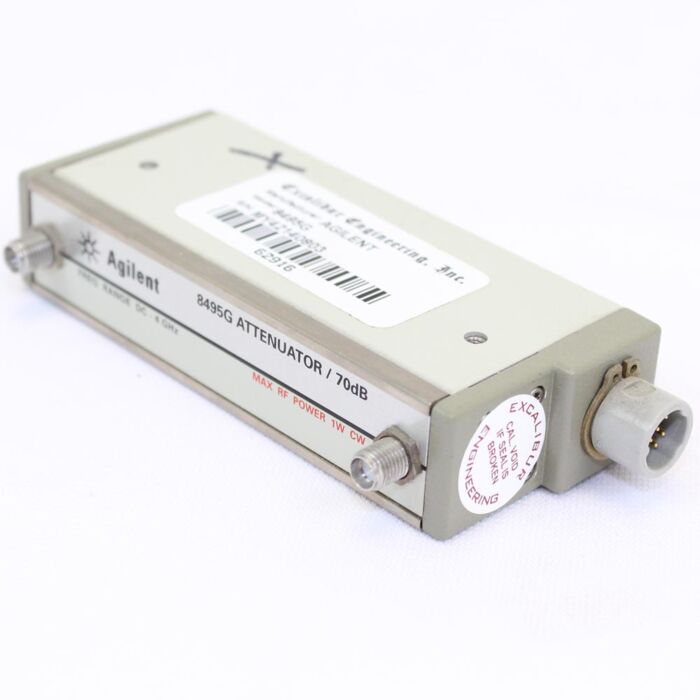

Used Keysight / Agilent 8495G Programmable Step Attenuator, DC to 4 GHz, 0 to 70 dB
Programmable Step Attenuator, DC to 4 GHz, 0 to 70 dB

Order #: 8495G-USED

Mfg #: 8495G

Questions about availability or need help? Contact Us:

(800) 633-0561
$499.00

Used Keysight / Agilent 8495G Programmable Step Attenuator, DC to 4 GHz, 0 to 70 dB

Programmable Step Attenuator, DC to 4 GHz, 0 to 70 dB

Order #: 8495G-USED

Mfg #: 8495G

$499.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Ships in 3-4 weeks
This item has NEW version starting at
$1,801.00
Shop now

Product Highlights

The Keysight 8495G dc to 4 GHz programmable step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 70 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator/switch combinations are possible. The Keysight 11716A/B/C interconnect kits provide quick connection of Keysight 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

  • Frequency range: dc to 4 GHz
  • Insertion loss at 0 dB: 0.4 dB + 0.07 dB/GHz
  • Maximum SWR: 1.35
  • Repeatability and Life Span
    • Repeatability life: 0.03 dB max 5 million cycles per section, typical
    • 5 million cycles per section
  • Power Handling
    • Maximum RF input power: 1 W (average), 100 W (peak)
  • Features
    • Connector type: choice of type-N female, SMA female, APC-7
    • Programming connector: 12-pin Viking, optional 14-pin DIP
