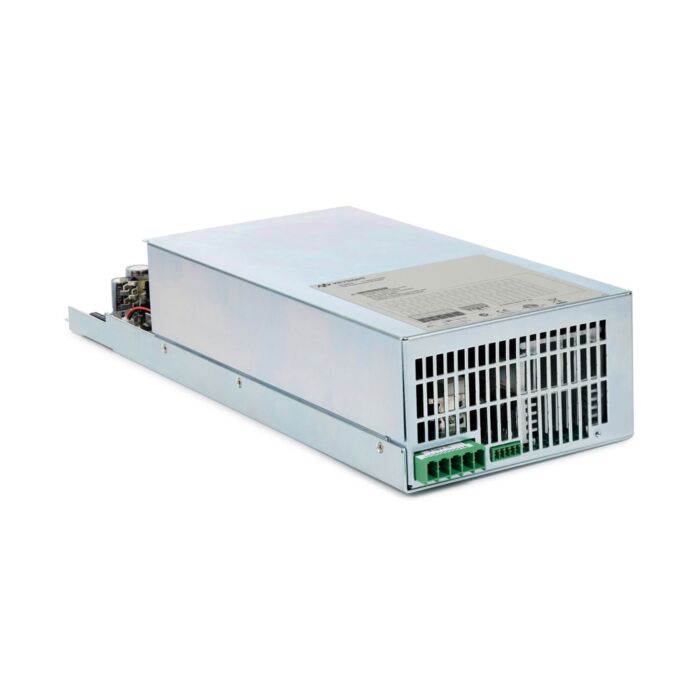

Keysight E4362A for Rent Solar Array Simulator DC Module - 130V, 5A, 600W

Product Highlights

Output Ratings (Simulator and Table Modes)

• Max. Power: 600 W
• V_oc Max.: 130 V
• I_sc Max.: 5 A

Output Ratings (Fixed mode)

• Max Power: 600 W
• V rated: 0-120 V
• I rated: 0-5 A

Programming Accuracy at 22°C ±5°C

• Voltage (Fixed Mode): 0.075% + 20 mV
• Current (Fixed Mode): 0.2% + 10 mA

Ripple & Noise (20 Hz to 20 MHz)

• Voltage rms, p-p (Simulator/Table Mode): 24 mV rms, 195 mV p-p
• Voltage rms, p-p (Fixed Mode): 24 mV rms, 150 mV p-p
• Current rms, p-p (Fixed Mode): 2.5 mA rms, 19 mA p-p

The Keysight E4362A is a 600W solar array simulator DC power module that simulates the output characteristics of a solar array. The E4362A is primarily a current source with very low output capacitance. It offers fast I-V curve changes allowing you to accurately simulate the output of different solar arrays under various environmental conditions (ex. temperature, age, eclipse, spin etc.). The E4360 gives you the flexibility to operate it in two ways:

• Input the four key operational parameters (V_oc, _Isc, V_mp, I_mp) needed for the SAS to internally create an I-V curve of a solar array
• Download a user defined table for the I-V curve of the solar array

This module works with the Keysight E4360A Modular Solar Array Simulator (SAS) Mainframe which can hold up to two modules and saves rack space with its 2U high size. LAN, USB, and GPIB interfaces are standard.
