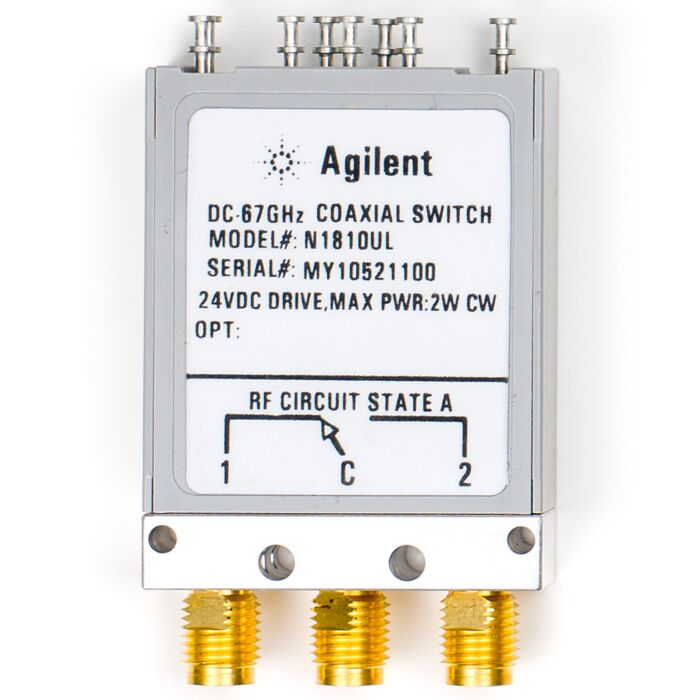

Keysight N1810UL Coaxial Switch, SPDT Unterminated Latching with Current Interrupt
Coaxial Switch,SPDT Unterminatd Latching w/Current Interrupt
Order #: N1810UL
Mfg #: N1810UL
$490.00
Keysight N1810UL Coaxial Switch, SPDT Unterminated Latching with Current Interrupt
Coaxial Switch,SPDT Unterminatd Latching w/Current Interrupt
Order #: N1810UL
Mfg #: N1810UL
$490.00
Availability: Ships in 4-6 weeks
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
- Unterminated single pole double throw EM switch
- Operating frequency from DC to 4, 20, 26.5, 40, 50 or 67 GHz
- Female SMA/2.92 mm/2.4 mm and 1.85 mm connectors
- Built-in current interrupt
- Superior isolation: > 120 dB at 4 GHz and 70 dB at 67 GHz
- Low SWR: < 1.10 at 4 GHz and 1.90 at 67 GHz
- Low insertion loss: < 0.27 dB at 4 GHz and 1.12 dB at 67 GHz
- Excellent insertion loss repeatability: 0.03 dB at 40 GHz, 0.05 dB at 50 GHz and 0.08 dB at 67 GHz
- Long operating life of 5 million cycles guaranteed, 10 million cycles typical
- Coil voltage levels 5 V, 15 V or 24 V
- D-subminiature 9-pin connectors or solder lug terminals
- Standard or TTL/5 V CMOS compatible drive
- Optional position indicators
