Keysight N2820A 2 Channel high sensitivity
2 Channel high sensitivity
Order #: N2820A
Mfg #: N2820A
$6,982.00
Keysight N2820A 2 Channel high sensitivity
2 Channel high sensitivity
Order #: N2820A
Mfg #: N2820A
$6,982.00
Availability: Ships in 4-6 weeks
Product Highlights
- Minimum current range of 50 uA
- Maximum current range of 5 A
- Wide dynamic range of greater than 20,000:1 or 86 dB
- Bandwidth: 3 MHz - zoom-out channel & 500 kHz - zoom-in channel
- Ideal for capturing and analyzing low level current flow in the DUT to characterize sub-circuits or measure current consumption of wireless battery-powered devices or integrated circuits
- Simultaneous high- and low- gain views of the current waveform for more precise wide dynamic range measurement

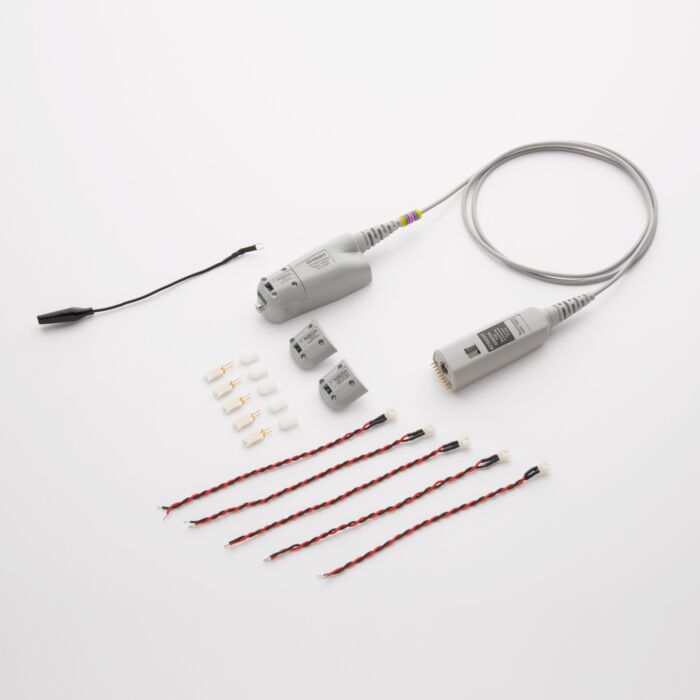

- Probe accessories included with the probe or orderable separately: interchangeable sensor heads, MBB receptacles, headers and hook-up wires.
