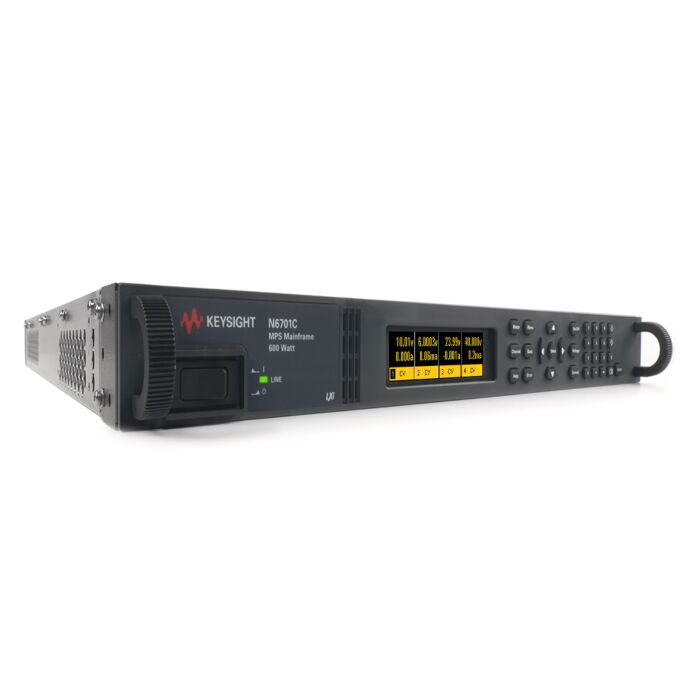

Keysight N6701C Lo-Profile Modular Power System Mainframe, 600W, GPIB, LAN, USB, LX

Product Highlights

The MPS (Modular Power System) power supplies series of N6700C Keysight (formerly Agilent's Electronic Test) is a modular configuration of power supply with a height of only one height unit for multiple applications in laboratory and production environments. Thanks to the wide selection of different power supply modules, the N6700C Modular Power Supply is ideally suited to any user application.

For integration into test benches and remote control applications via a PC, the N6700 power supply can be controlled via the standard USB, GPIB or LAN interface. The N6700 is fully LXI compatible and offers an integrated web server for remote control over LAN.

• Maximum total output power (= Sum of Total Module Output Power)
  • 600 W when operating from 100 - 240 VAC input
• AC input
  • Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
  • Input Range: 86 VAC - 264 VAC
  • Power Consumption: 1500 VA typical
  • Fuse Internal fuse (not customer accessible)
• Protection response characteristics
  • INH input: 5 µs from receipt of inhibit to start of shutdown
  • Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)

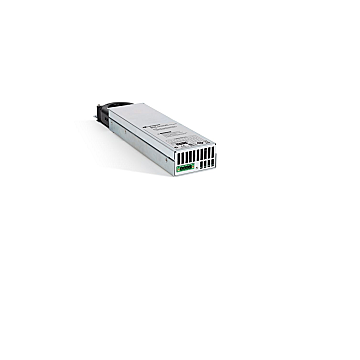

• Modular design, max. 4 DC power supply modules possible
• Maximum output power 400W for all outputs common
• Over 30 DC power modules up to max. 150V / 50A available
• 4 outputs with fine sense (sense) for the test voltage supply
• Parallel / serial switching of outputs possible
• Readback of current and voltage (integrated in power supply modules)
• Memory for device settings
• Synchronization to other measuring devices via trigger inputs and outputs
• Protection functions can be set for all outputs (overvoltage, overcurrent and overtemperature protection)
• Off / On Switch for outputs (optional for the individual DC power modules)
• Temperature controlled fan
• Interfaces: USB 2.0, GPIB interface, LAN interface
• LXI Class C compatible
• Built-in web server for remote control
• Dimensions: B432.5 x D 549.7 x H44.45 mm (19 inches - 1HE)
• Weight with 4 DC power supply modules: 12.73 kg
• Warranty: 3 years
• Includes BV0003B Power Supply app
