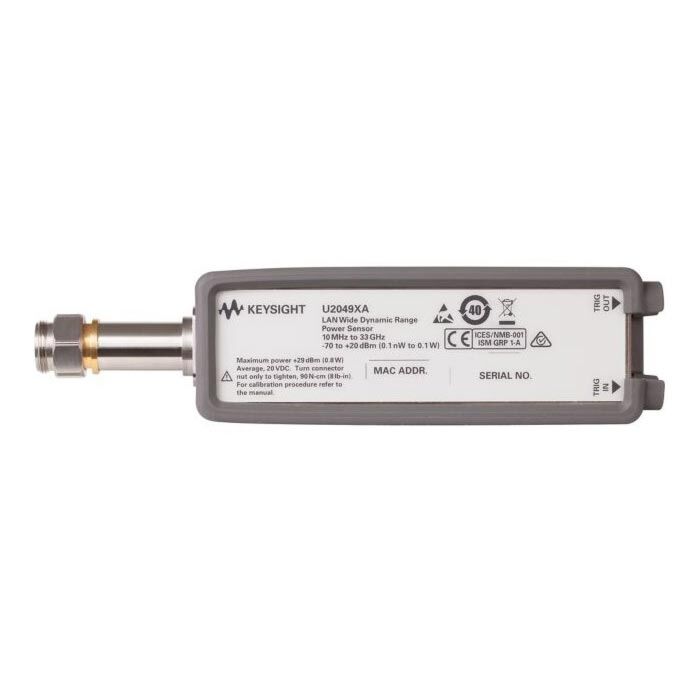

Keysight U2049XA LAN Wide Dynamic Range Power Sensor, 10MHz-33GHz
LAN Wide Dynamic Range Power Sensor,10MHz-33GHz
Order #: U2049XA
Mfg #: U2049XA
$14,129.00
Keysight U2049XA LAN Wide Dynamic Range Power Sensor, 10MHz-33GHz
LAN Wide Dynamic Range Power Sensor,10MHz-33GHz
Order #: U2049XA
Mfg #: U2049XA
$14,129.00
Availability: Ships in 4-6 weeks
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
The U2049XA LAN power sensor, 10 MHz to 6 GHz / 33 GHz, comes with a dynamic range spanning 90 dB, this sensor is ideal for fault detection and monitoring of satellite systems. The U2049XA power sensor comes with optional thermal vacuum compliant option (Option-TVA) for use within a thermal vacuum chamber. Together with internal zero and calibration and best-in-class long term drift performance, the U2049XA enables automated performance monitoring without needing human intervention.
- Wide dynamic range (-70 to +20 dBm) for small signal measurements
- LAN/ Power-Over-Ethernet (PoE) connectivity for long distance remote monitoring (up to 100 meter)
- TVAC compliant for operation in vacuum
- Best-in-class long term drift performance
- Internal zero and automatic calibration saves time and reduces measurement uncertainty
- Easy measurement start-up with new intuitive BenchVue software
- Includes BV0007B Power Meter app
