Order #: VFC2000
Mfg #: 902238-00
MadgeTech VFC2000
Order #: VFC2000
Mfg #: 902238-00
Product Highlights

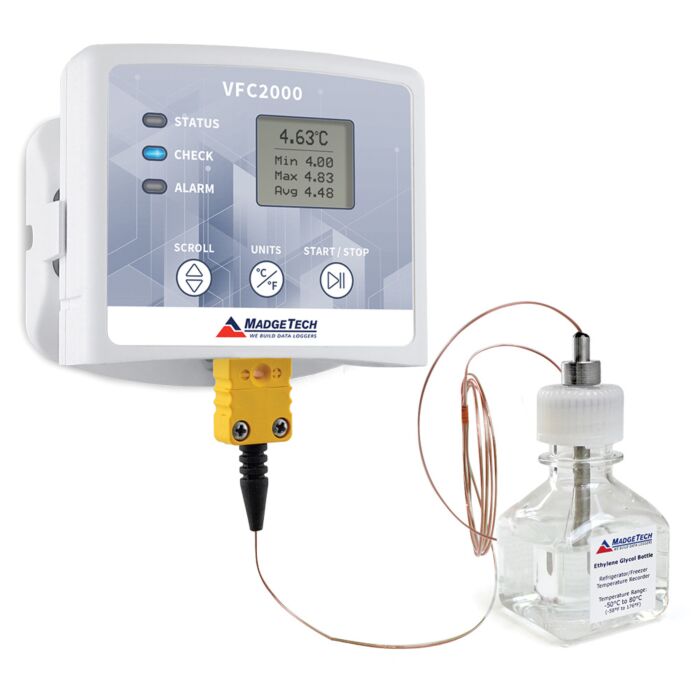

Low-cost vaccine temperature monitoring system w/ 30mL glycol bottle and type K thermocouple
The VFC2000 is a low-cost vaccine temperature monitoring system, recording temperatures as low as -100 °C (-148 °F).
- VFC & CDC Compliant
- Audible & Visual Alarms
- Temperature Check Reminder
- Annual or Biennial Calibration Option
The VFC2000 is a simple, low-cost solution for vaccine temperature monitoring compliance. The VFC2000 is designed to satisfy all CDC and VFC requirements. The VFC2000 also provides precise, continuous temperature monitoring and validation for temperatures as low as -100 °C (-148 °F).

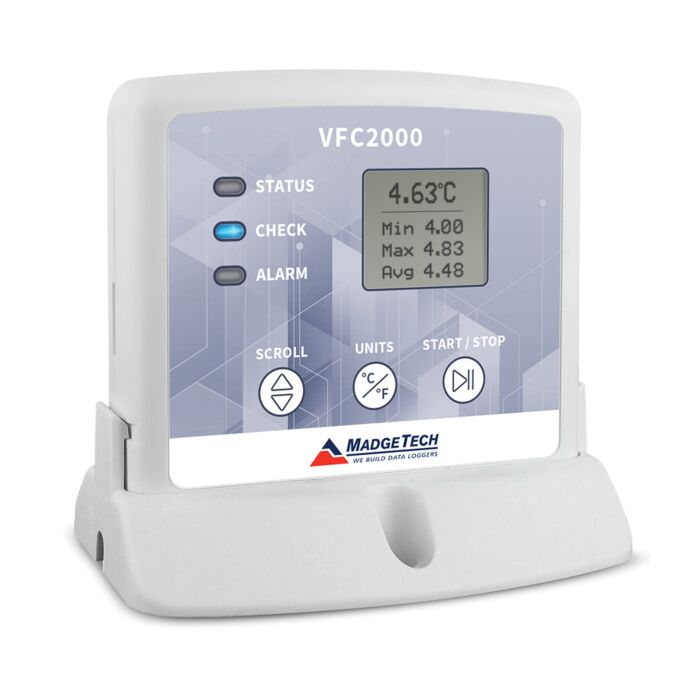

Featuring a convenient LCD screen, the VFC2000 displays current, minimum, and maximum readings as well as a battery level indicator. The VFC2000 is also equipped with an LED reminder to conduct the required 24-hour temperature check. If temperatures fluctuate out-of-range, the VFC2000 triggers an audio and visual alert.
The VFC2000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical and tabular data is provided for analysis and can be viewed using the software which supports customizable engineering units.
Memory | 16,128 readings (all channels enabled) |
Reading Rate | 1 reading every second up to 1 reading every 24 hours |
Cold Junction Compensation | Automatic based on internal channel |
Battery Life | 3 years typical at 1 minute reading rate |
Material | ABS Plastic |
Dimensions | 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only |
Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
Required Interface Package | USB to Mini USB Cable |
Weight | 1.1250 LBS |
Baud Rate | 250,000 |
Internal Channel Temperature Sensor | Semiconductor |
Internal Channel Temperature Range | -20 °C to 60 °C (-4 °F to +140 °F) |
Internal Channel Temperature Resolution | 0.01 °C (0.18 °F) |
Internal Channel Temperature Calibrated Accuracy | ±0.5 °C (0 °C to +50 °C) |

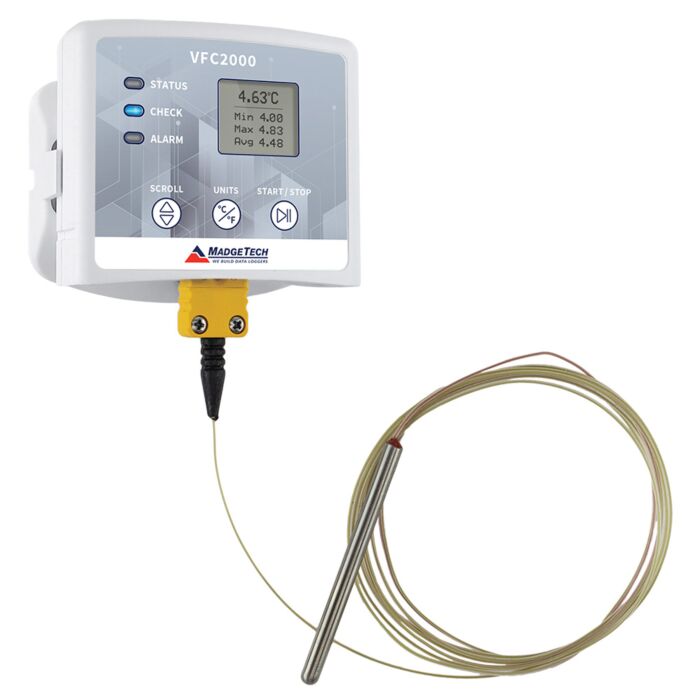

Remote Channel Temperature Sensor | Type K Thermocouple (Included) |
Remote Channel (Thermocouple) Temperature Range | -100 °C to +80 °C (-148 °F to +176 °F) |
Remote Channel (Glycol Bottle) Temperature Range | -50 °C to +80 °C (-58 °F to +176 °F) |
Remote Channel Temperature Resolution | 0.1 °C (0.18 °F) |
Remote Channel Temperature Calibrated Accuracy | ±0.5 °C |
-
-
-
