Mark-10 EKE-200-1

Product Highlights

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications.

• Measure real time and peak push and pull forces
• Measuring range: 200 lbF (1000 N)
• Accuracy: ±0.2% of full scale
• Sampling rate: 7,000 Hz
• USB data output
• High / low limit indicators, for pass / fail and minimum force testing
• Averaging mode calculates average force over a period of time
• 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESURTM Lite data collection software.
• Statistical calculations for saved data points
• Includes an AC adapter/charger, rechargeable battery, MESURTM Lite software, MESURTMgauge 90-day trial, USB cable, USB driver, carrying case, and NIST-traceable certificate of calibration with data

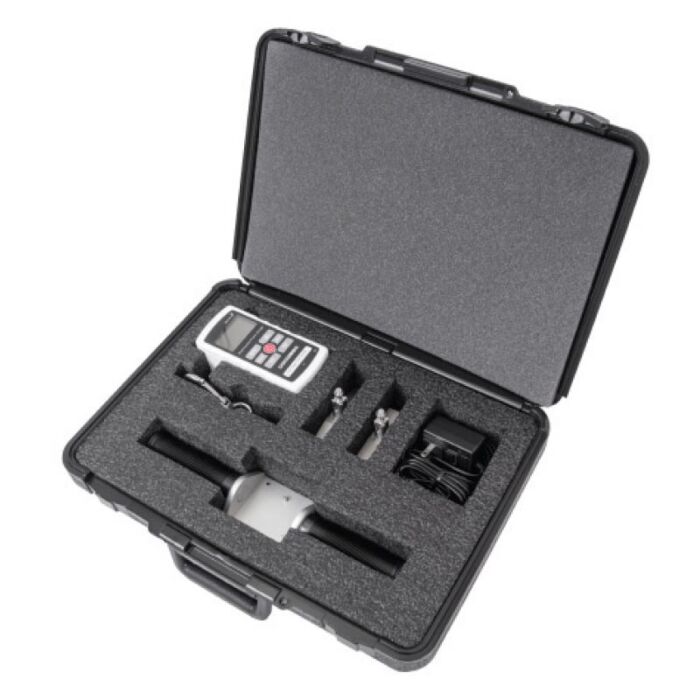

Each Unit Includes

• ME-200 Force Gauge
• E1003 Padded attachment, rectangular
• E1004 Padded attachment, curved
• E1006 Clasp hook
• E1009 Double handle grip
• E1000 Carrying case, large
