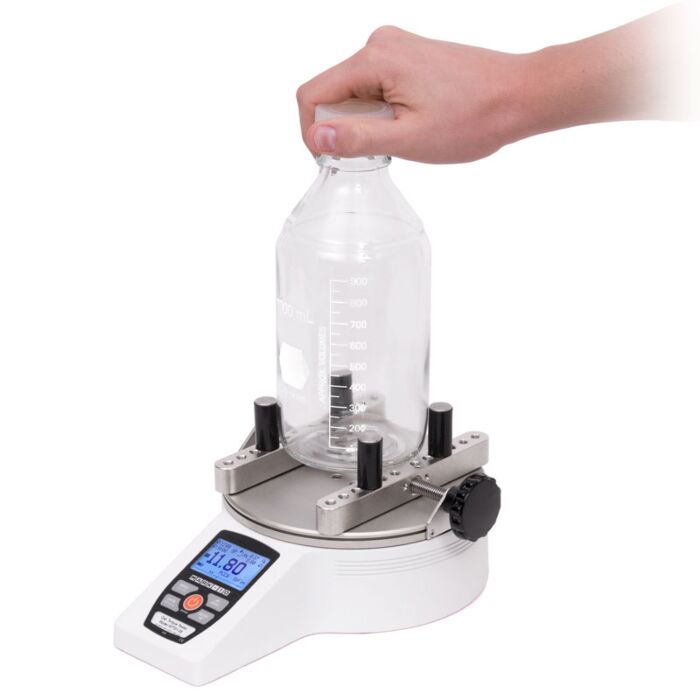

Used Mark-10 MTT01-50 Digital Cap Torque Tester, 50 lb/in
Digital Cap Torque Tester 50 lb/in

Order #: MTT01-50-USED

Mfg #: MTT01-50-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,250.00

Used Mark-10 MTT01-50 Digital Cap Torque Tester, 50 lb/in

Digital Cap Torque Tester 50 lb/in

Order #: MTT01-50-USED

Mfg #: MTT01-50-USED

$1,250.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item is available as RENTAL at
Call for price
Shop now
This item has NEW version starting at
Special Price $1,529.50 Regular Price $1,610.00
Shop now

Product Highlights

Cap torque tester, 50 lbFin / 800 ozFin / 58 kgFcm / 570 Ncm / 5.7 Nm

  • Moveable 1.25" (31 mm) length posts accommodate a wide range of sample shapes and sizes
  • Available extended post lengths and other gripping options
  • USB, RS-232, Mitutoyo, and analog outputs
  • Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
  • First / second peak detection for slip and breakaway torques in tamper evident closures
  • 1,000-point data memory with statistics and outputs
  • Password protection prevents unauthorized changes
  • Programmable set point indicators and outputs for pass/ fail determination
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • Configurable audio alarms and key tones
  • 5 selectable units of measurement
  • MESUR® Lite data collection software included
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Accuracy: ±0.3% of full scale
Sampling rate: 7,000 Hz
Bottle diameter range: Ø0.5 - 7.5 in [12.7 - 189.4 mm]
With CT001 optional jaws: Ø0 - 5.9 in [0 - 149.9 mm]
With CT003 optional jaws: Ø0 - 4.6 in [116.8 mm]
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units: ozFin, lbFin, kgFcm, Nm, Ncm
Output: USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Configurable settings: Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: 8.4 lb [3.8 kg]
Environmental requirements: 40°F - 100°F [5°C - 45°C], < 96% humidity (non-condensing)
Country of origin: USA
