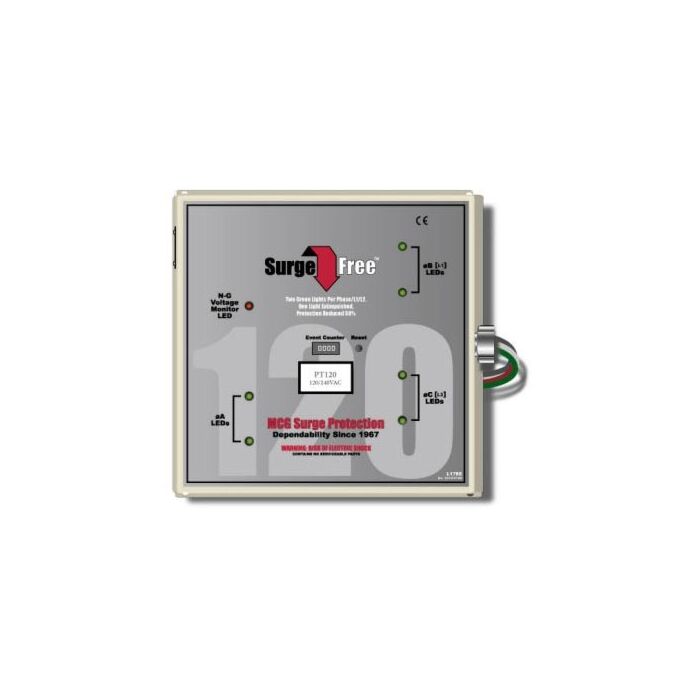

MCG Surge Protectors PT120
Surge Protector, 120VAC, 1- phase, 2 wires+GND, 120KA/phase

Order #: PT120-120S

Mfg #: PT120-120S

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,709.00

MCG Surge Protectors PT120

Surge Protector, 120VAC, 1- phase, 2 wires+GND, 120KA/phase

Order #: PT120-120S

Mfg #: PT120-120S

$1,709.00
Availability: Ships in 3-4 weeks

Product Highlights

  • 120KA Service Entrance AC Surge Protector
  • I peak=250,000A/Phase (8x20μs waveform)
  • UL1449 4th Edition Listed
  • Triple redundant - three fused surge paths/phase
  • Remote 1 Form C relay contacts with status LED
  • Neutral to ground voltage monitor
  • Front panel protection status LEDs
  • Low profile design
  • All modes protected
  • Filtering standard
  • Thermally protected MOVs
  • Event surge counter (Standard)
  • 20 YEAR NO-NONSENSE WARRANTY
