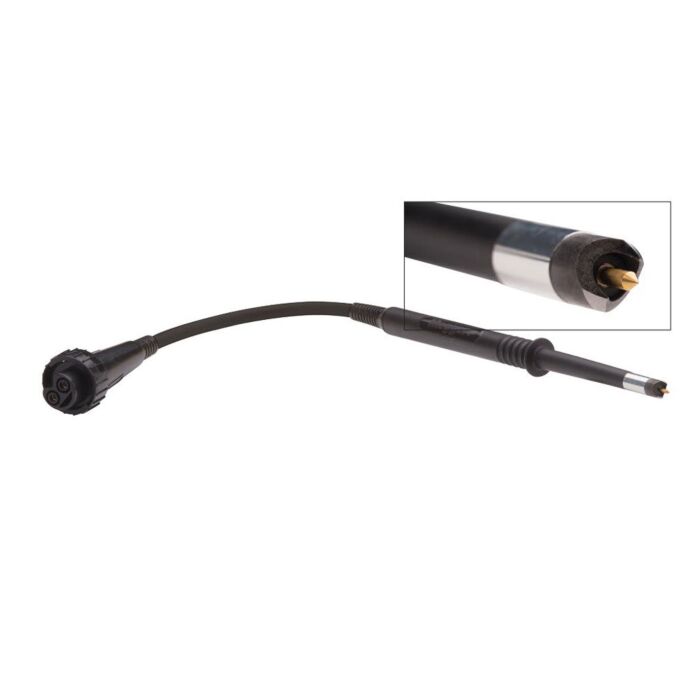

Megger 1006-448 CP1-C Concentric Probe-Connect (x1) Probe Only, No Lead

Product Highlights

CP1-C Concentric Probe-Connect (x1) Probe Only - No Lead (Also connects to BT51)

• 1006-448 CP1-C Concentric Probe-Connect (X1)
• Maximum current rating: 10 A
• Connector to probe tip resistance: 10m ohm
• Probe tip spacing: Between two outer C tips 7.6 mm
• For use with any duplex connect test lead and extension lead
• Simple push and twist for quick change from lead
• Sprung loaded potential tip provides 1.3 kg of force using a stainless steel spring
• Replaceable, hardened needle point with gold plating ensures excellent low resistance contact

The Megger 1006-448 CP1-C Duplex Connect Concentric Probe features a handspike with sprung loaded potential tip, which is fitted with a connector socket for easy connection to any connector test lead.

The C connection is made via an outer hardened and tempered steel crown with two contact points or tips.

The replaceable central potential probe tip has a hardened needle point, gold plated for excellent low resistance contact. The P tip is sprung to provide 1.3kg of force and uses a stainless steel spring.

The CP1-C Duplex Connect Concentric Probe is ideal for general applications where a good reliable connection is required on none coated or corroded surfaces. The long probe length and small diameter makes this probe ideal for reaching deeply recessed terminal screws. There are also applications where a connection to rivet heads or screw/bolt heads are required.
