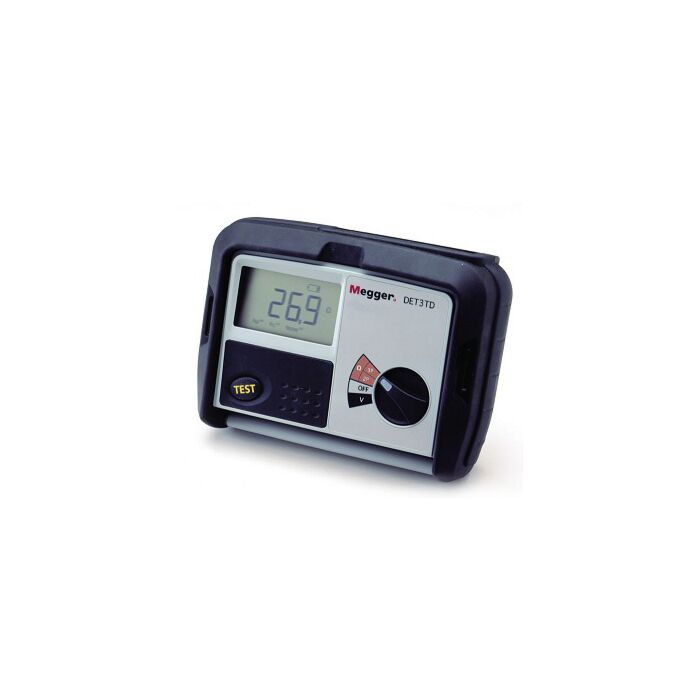

Megger DET3TD Digital Ground Tester
Digital Ground Tester

Order #: 45440EL

Mfg #: DET3TD

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,300.00

Megger DET3TD Digital Ground Tester

Digital Ground Tester

Order #: 45440EL

Mfg #: DET3TD

$1,300.00

The new ground testing instrument family from Megger offers a unique solution to your ground rod testing needs. The complete kit of instrument, test leads, stakes, batteries and calibration certificate are delivered in a tough polypropylene carry case everything you need to start testing in one kit.
Be sure to Login to transcat.com for preferred member pricing.

Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

Product Highlights

  • IP54 rated
  • 2 and 3 point testing
  • Selectable 25 V or 50 V output
  • Complete with lead and stake kit
  • Simple one button operation
  • Hardwearing carry case
  • Delivered with calibration certificate
  • Dimensions: 203 x 148 x 78 mm (8 x 5.7 x 3.2 inches)

The DET3TD Digital earth resistance tester is ideal for basic requirements as it provides digital ground testing and bond test capabilities. Similar to the DET3TC, this instrument comes with a complete kit: instrument, test leads, stakes, batteries, calibration certificate, and a tough polypropylene carry case.

As with the DET3TC, the DET3TD is easy to use, with the earth rod tester rated to IP54, making it a hardy outdoor instrument. Using the optional clamp around the earth rod connection allows the testing of the rod without the need for disconnection, leaving the earthing system intact during testing (ART). A large, clear, easy-to-read LCD display and thumb-sized test button also makes the instrument particularly suited outdoor conditions.

In addition to its ease of use, the DET3TD (and the DET3TC) also automatically checks the connection and condition of the P and C spike, indicating the status on the display. The instrument also includes a voltmeter to allow you to measure the ground voltage and can measure resistance from 0.01 Ω through to 2000 Ω and earth voltages up to 100 V. To allow accurate testing in noisy environments, the instrument is capable of rejecting noise of up to 40 V peak to peak.

Each Unit Includes

  • Hard carry case 1007-167
  • Replacement 3-wire lead set (15m red wire, 10m yellow wire, 4m green wire) 1000-525
  • Ground test stakes (x2) (200mm, 8mm dia) 1000-523
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Megger MCC1010 Current Clamp, CAT IV 600 V to 1000 A AC
    Megger MCC1010 Current Clamp, CAT IV 600 V to 1000 A AC
    Current Clamp, CAT IV 600 V to 1000 A AC

    Order #: MCC1010

    Mfg #: 1010-516

    Availability: Ships in 3-4 weeks
    $480.00

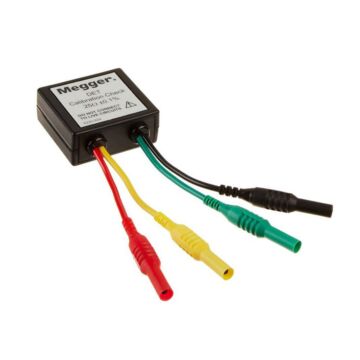

  2. Megger 1000-435 25ohm Calibration Check Box
    Megger 1000-435 Calibration Check Box, 25ohm
    25ohm Calibration Check Box

    Order #: 1000-435

    Mfg #: 1000-435

    Availability: Ships in 3-4 weeks
    $149.00
  3. Megger 6220-804 Replacement ground test stakes (x2), 200mm, 8mm diameter
    Megger 6220-804 Replacement ground test stakes (x2), 200mm, 8mm diameter
    Replacement ground test stakes (x2), 200mm, 8mm dia

    Order #: 6220-804

    Mfg #: 6220-804

    Availability: Ships in 3-4 weeks
    $49.00

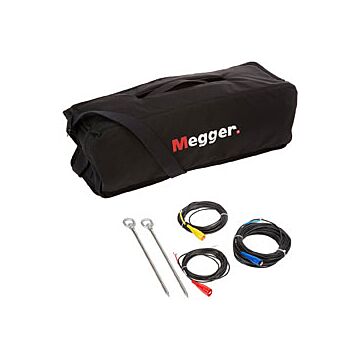

  4. Megger 250581-KIT
