Order #: DLRO-10HD
Mfg #: 1006-603

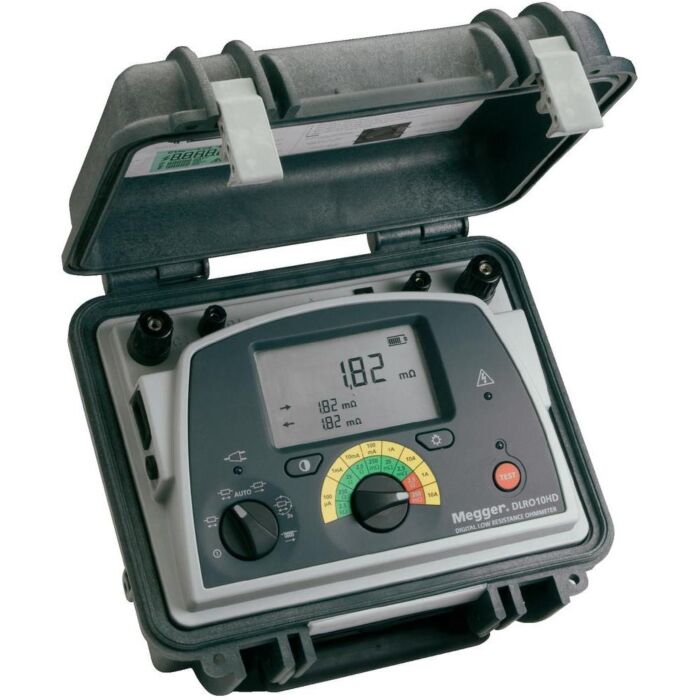

Megger DLRO10HD Digital Low Resistance Ohmmeter, 10-Amp
Order #: DLRO-10HD
Mfg #: 1006-603
Be sure to Login to transcat.com for preferred member pricing.
Product Highlights
The heavy duty DLRO10HD and DLRO10HDX digital low resistance ohmmeters can deliver a 10 A current into circuits up to 250 mΩ and 1 A into circuits up to 2.5 Ω. The duration of each test can be up to 60 seconds, reducing the time required for cooling. These units have a high and low output power selection for condition diagnosis.
The DLRO10HD and DLRO10HDX instruments can be powered from their own sealed, rechargeable lead-acid battery or via mains power. This makes them suitable for continuous testing in repetitive use environments, such as production lines. Additionally, they come in a rugged case designed for stable ground and bench operation. They are IP54 rated when operational and IP65 when the lid is closed, which is ideal for working in all weather conditions.
Both units have five test modes: bidirectional (whereby current reversal with averaging cancels thermal EMFs), unidirectional, automatic, continuous, and inductive. You select the desired mode through a simple rotary control on the mode selection rotary switch. These rotary switches are easy to operate, even with gloved hands, and the instruments’ large, clear, backlit LCD makes for easy reading even from a distance.
The DLRO10HDX has some additional abilities over the DLRO10HD. It is rated CAT III 300 V (as long as the optional terminal cover is fitted to the instrument) and comes with onboard memory storage for up to 200 test results. The memory functions: ‘delete’, ‘download to PowerDB’, and ‘recalling test results’ are also accessible via the range selection rotary switch on this model.
- High or low output power selection for condition diagnosis
- Rechargeable battery or line power supply, continuous operation, even with dead battery
- 10 A for 60 seconds, less time waiting to cool, great for charging inductance
- High input protection to 600 V, inadvertent connection to line or UPS voltage will not blow a fuse
- Heavy duty case: IP 65 lid closed, IP54 operational (battery operation only)
- Rotary switch selects one of five test modes, including auto start on connection, giving ease of use
- Equally at home in the laboratory, the workshop or in the field, on the bench or on the ground, Megger’s new heavy duty DLRO10HD low resistance ohmmeter combines rugged construction with accuracy and ease of use
- It features an internal rechargeable battery and can also operate from a mains supply, even if the battery is completely flat
Each Unit Includes
- DH4 duplex handspike 1.2m
- Test lead pouch (lid mounted)
- DLRO10HD user guide CD
- Warranty book
- Megger 249001 Calibration Shunt, 1 ohmCalibration Shunt, 1 ohm
Order #: 249001
Mfg #: 249001
Availability: Ships in 3-4 weeks$415.00 - Megger 249002 Calibration Shunt, 0.1ohmCalibration Shunt,0.1ohm
Order #: 249002
Mfg #: 249002
Availability: Ships in 3-4 weeks$425.00 - Megger 249003 Calibration Shunt, 0.01ohmCalibration Shunt,0.01ohm
Order #: 249003
Mfg #: 249003
Availability: Ships in 3-4 weeks$425.00 - Megger IAK Industrial Application Lead Kit CAT III, with Terminal CoverIndustrial Application Lead Kit CAT III, with Terminal Cover
Order #: IAK
Mfg #: 1011-376
Availability: Ships in 3-4 weeks$665.00 - Megger 242011-7 Pair of test leads for 247000, 247001, 247002 DLROsPair of test leads for 247000, 247001, 247002 DLRO's
Order #: 242011-7
Mfg #: 242011-7
Availability:In stock$1,225.00 - Megger 242011-18 Test Leads for 247000, 247001, 247002 DLROsTest Leads for 247000, 247001, 247002 DLROs
Order #: 242011-18
Mfg #: 242011-18

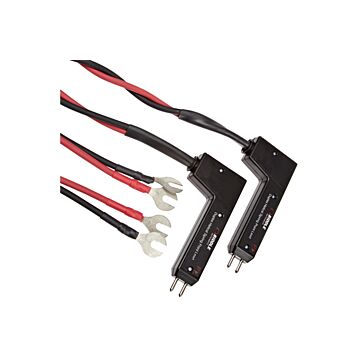

Availability: Ships in 3-4 weeks$1,800.00 - Megger 242011-30 Duplex Hand Spike Assembly, 30'Duplex Hand Spike Assembly,30ft
Order #: 242011-30
Mfg #: 242011-30
Availability: Ships in 3-4 weeks$1,955.00 - Megger 242002-7 Heavy Duty Duplex Handspikes, (2)Duplex Handspikes (2) Heavy Duty
Order #: 242002-7
Mfg #: 242002-7
Availability: Ships in 3-4 weeks$1,190.00 - Megger 242002-18 18' Heavy Duty Fixed Hand Spikes18'Heavy Duty Fixed Hand Spikes
Order #: 242002-18
Mfg #: 242002-18
Availability: Ships in 3-4 weeks$1,400.00 - Megger 242002-30 Duplex Test Leads, Heavy Duty Fixed Point Hand Spikes, 10A, 30'Duplex Test Leads;HD Fixed Point Hand Spikes;10A;30'
Order #: 242002-30
Mfg #: 242002-30

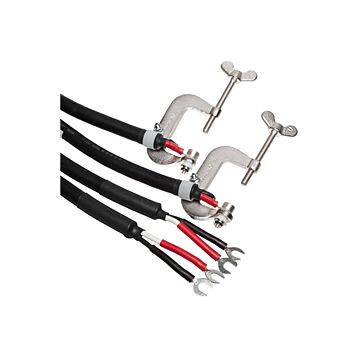

Availability: Ships in 3-4 weeks$1,660.00 - Megger 242004-7 Heavy Duty C-Clamps, 2" (5cm) 7' (2m), 10A maxHeavy Duty C-Clamps,2"(5cm) 7ft.(2m),10A max
Order #: 242004-7
Mfg #: 242004-7
Availability: Ships in 3-4 weeks$870.00 - Megger 242004-18 Heavy Duty C-Clamps, 2" (5cm), 18' (5.5m), 10A maxHeavy Duty C-Clamps,2"(5cm) cm),18ft.(5.5m),10A max
Order #: 242004-18
Mfg #: 242004-18
Availability:In stock$1,070.00 - Megger 242004-30 2" Duplex Test Leads2" Duplex Test Leads
Order #: 242004-30
Mfg #: 242004-30
Availability: Ships in 3-4 weeks$1,805.00 - Megger 242003-7 Replaceable Needle PointsReplaceable Needle Points
Order #: 242003-7
Mfg #: 242003-7
Availability: Ships in 3-4 weeks$1,465.00 - Megger 241005-7 Duplex Test Leads, 0.5" Kelvin Clips, Gold Plated, 10A, 7'Duplex Test Leads;0.5"Kelvin Clips;Gold Plated;10A;7'
Order #: 241005-7
Mfg #: 241005-7
Availability: Ships in 3-4 weeks$1,895.00 - Megger 242005-7 Kelvin Clip/Cable Assembly for 247000, 247001, 247002 DLROsKelvin Clip/Cable Ass'y for 247000, 247001, 247002 DLROs
Order #: 242005-7
Mfg #: 242005-7

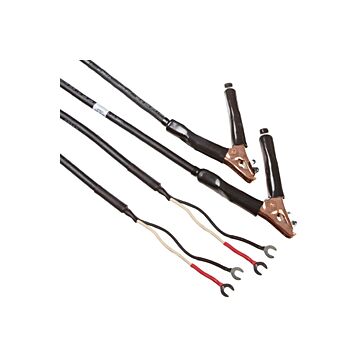

Availability:In stock$320.00 - Megger 242006-7 Kelvin Clip for 247000, 247001, 247002 DLROsKelvin Clip for 247000, 247001, 247002 DLROs
Order #: 242006-7
Mfg #: 242006-7
Availability:In stock$555.00 - Megger 242006-18 1.5" (4 cm) Kelvin Clips1.5" (4 cm) Kelvin Clips
Order #: 242006-18
Mfg #: 242006-18
Availability: Ships in 3-4 weeks$780.00 - Megger 242006-30 Duplex Test Leads 30', 1.5" Kelvin ClipsDuplex Test Leads 30 ft, 1.5 in Kelvin Clips
Order #: 242006-30
Mfg #: 242006-30
Availability: Ships in 3-4 weeks$2,115.00 - Megger 242021-7 Hand Spikes, 7', PotentialHand Spikes, 7 ft, Potential
Order #: 242021-7
Mfg #: 242021-7
Availability: Ships in 3-4 weeks$745.00 - Megger 242021-18 Potential Hand Spike LeadsPotential Hand Spike Leads
Order #: 242021-18
Mfg #: 242021-18

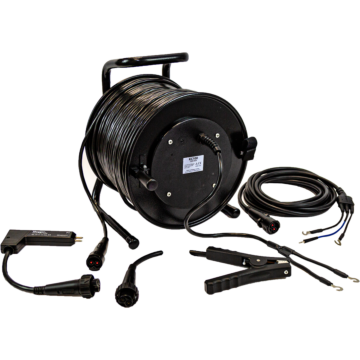

Availability: Ships in 3-4 weeks$1,000.00 - Megger 1000-809 Wind Turbine Lightning Protection 300' Test Lead SetWind Turbine Lightning Protection 300 ft Test Lead Set
