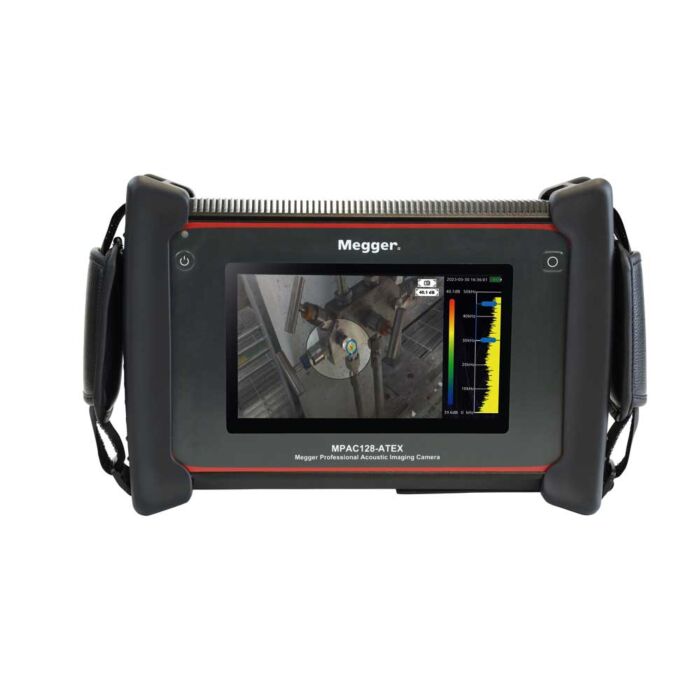

Megger MPAC128 Acoustic Imager

Product Highlights

MPAC128: Locate gas leaks and partial discharge threats swiftly and precisely with Megger's MPAC128. Equipped with 128 sensors, this high-resolution acoustic imager enables clear visualisation of gas, pressure, and vacuum leaks, as well as electrical partial discharge from safe distances up to 120 meters away. With an IP54 rating, it ensures accurate targeting for repairs, preventing safety hazards, production disruptions, and losses, ultimately saving valuable time, energy, and resources. The MPAC128 series also packs impressive reliability with the units ingenious self-check function, meticulously verifying internal components' integrity and guaranteeing flawless operation of the microphone array, providing unwavering performance day in, day out.

• Detects multiple gas types and pressurised gas leaks with ease.
• Simple operation with only two parameters to set.
• Provides leak rate quantification for cost estimation.
• Phase Resolved Partial Discharge (PRPD) for discrimination between different types of partial discharge.
• Focus function reduces unwanted noise in noisy environments.
• Converts ultrasonic monitoring sounds to audible sounds for pinpointing leaks.
• Expandable storage for storing results, images, and videos on site.
• Easy update firmware to latest version via the USB-C memory stick or microSD card.
• Free Acoustic Analysis software.
• Detection frequency: 2 kHz to 48 kHz
• Detection range: 0.3 to 120 m
• Optical camera resolution: 8 megapixels
• Leak detection rate:
  • 1 m 7 bar 0.37 ml/s
  • 10 m 7 bar 0.7 ml/s
• Microphones in array: 128
• Sound image field of view
  • Horizontal: 62°
  • Vertical: 48°
• Meets IP54

Each Unit Includes

• Hand straps
• Shoulder strap
• Universal mains charger
• USB-C charge cable
• Headphone
• Protective box
• 8 GB microSD card
• USB-A microSD card reader
• 8 GB USB-C/USB-A memory stick
• Cleaning tool
