Megger MPQ1000-GOLD KIT for Rent, Power Quality Analyzer, 6000A 27" Flex CT Clamps

Megger MPQ1000 Gold Kit Highlights

The Megger MPQ1000 Power Quality Analyzer is an advanced handheld 3-phase analyzer. It is a highly intuitive analyzer that delivers unmatched capability in a smart ergonomic platform. View RMS data, waveforms, demand data, phase angles, harmonics, unbalance, flicker and more in real time with the MPQ1000 scope mode and DVM mode. When data needs to be recorded the MPQ1000 record verification will automatically identify the current clamps, recognize their range and verify the unit is connected properly. Simply connect it and push the record button. The MPQ1000 can record for extended periods of time because of its massive memory. It utilizes an SD card, which makes expanding the memory as easy as installing a new SD card. The recorded data can be viewed on the MPQ1000 color VGA display or the data can be transferred to the high power Megger PQ Power Quality Analysis software via USB cable, USB stick, Ethernet or directly from the SD card.

• Automatic CT recognition means never having the unit programmed for an incorrect range
• CTs are powered by the unit so there is no need for additional connections
• Connection verification ensures the unit is configured correctly and you get the data you need — no wasted recordings
• On-board data analysis saves time by allowing an immediate examination of data before leaving the site
• Multiple communication methods (USB, Ethernet, USB stick or SD card) allow for flexible and convenient operation
• Removable SD card allows for large recording capabilities and simple memory expansion
• The expanded 1000 V ac range allows for more application; no need for a second unit
• 1000 V dc measurement allows testing and analysis of renewable applications dismissing the need for additional equipment
• CATIV @ 600 V assures a safe unit for all applications
• Full-featured Class A compliant (all parameters) ensures the recording of correct values
• Smart configuration in the Megger PQ software for quick and easy setup
• Phase angle stability measurement lets you easily find tricky phasing problems caused by multiple erratic sources
• Timed waveform capture allows for the taking of PQ events and periodic waveforms at the same time
• Easy intuitive menus allow for simple navigation and operation
• Free software included means no license or dongle required

Applications

Using experience gained from supplying a multitude of analyzers to a large number of utilities, industries and service providers, Megger has designed the most versatile unit available today. Some of the applications include the following:

• Compliance testing to any PQ standard
• Power factor studies
• Load studies and load balancing
• Billing verification
• Substation monitoring
• Capacitor bank sizing
• Transformer analysis and de-rating
• Motor troubleshooting and inrush testing
• Switchgear and component failure
• Tripping breakers
• Equipment tripping offline
• Dimming/surging lighting
• Lamp flicker analysis
• Neutral overheating
• Solar (PV) analysis

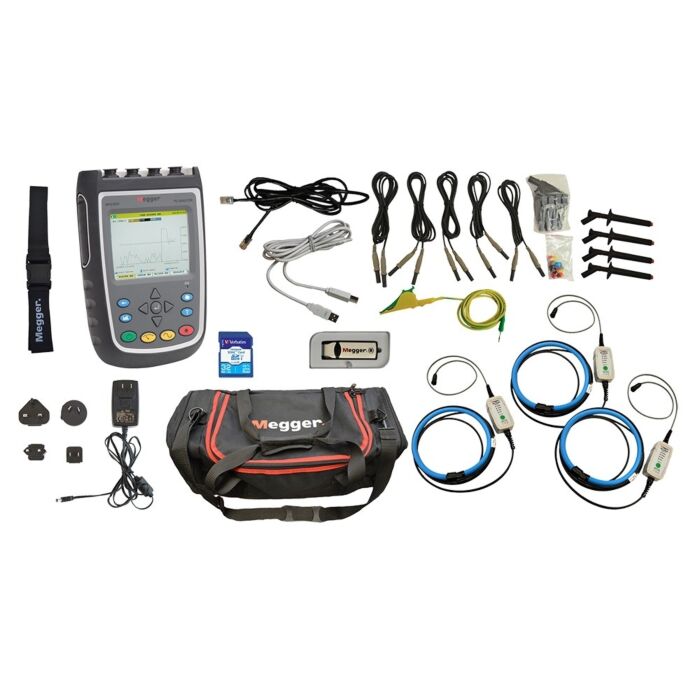

Each Megger MPQ1000 Gold Kit Includes

• PQ Analyzer
• Voltage leads
• SD Card
• USB cable
• Ethernet cable
• universal power adaptor
• soft sided carry bag
• voltage lead plunger clips
• hanging strap
• 3 MCCV6000‐27 (Wide Diameter 27cm ‐ Four Range Flex CT’s)
