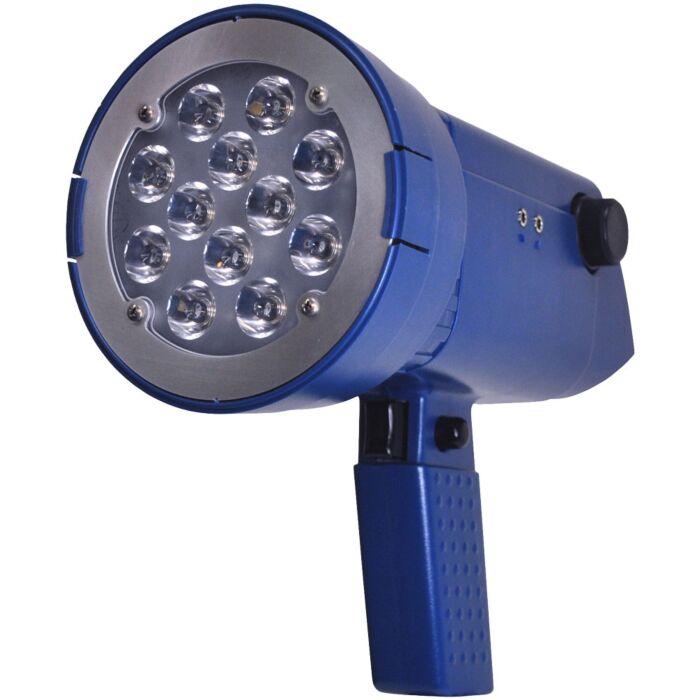

Monarch Instrument 6206-012 for Rent, Nova-Strobe BAX Digital Stroboscope, 230VAC
Order #: 6206-012-RENT1
Mfg #: 6206-012-RENT1
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
The Monarch 6206-012 Nova-Strobe 230V AC line-powered digital stroboscope has a xenon flash tube, a 30 to 10,000 flashes per minute (FPM) range, internal phase shifting, and continuous duty cycle. It is designed for motion analysis, preventive maintenance, printing inspection, harmonics analysis, and speed measurement of repetitive motion. The xenon flash tube has an auto-adjustable 8 to 20 microsecond flash duration to provide crisp images in brightly lit areas. Xenon flash tubes have brighter light output and a shorter flash duration than LED lights. Bright light output is required for quality images in brightly lit areas, and shorter flash durations provide sharper images, especially at high rates of speed. The stroboscope has a flash rate range of 30 to 10,000 FPM and a flash rate accuracy of 0.002% of setting, or + or - least significant digit/0.01 for use in slow-to-medium speed applications. Built-in multiply-by-2 and divide-by-2 functionality allows the operator to distinguish true RPM from harmonics. Internal phase shift functionality allows the operator to manually rotate the target location clockwise or counterclockwise in 5 degree increments. The built-in 1/4" - 20 UNF (Unified Fine) thread mount, continuous duty cycle, and 230V AC power source provide long-term use in permanent installations without the need for cool-down periods. Stroboscopes are used in a variety of settings including manufacturing, printing, education, and photography.
- Cost effective
- Powerful light output (20% brighter than competitive models!)
- Lightweight for easy handling
- Electronic switching provides continuous cool operation
- Tripod mounting bushing in handle
- Internal Rechargeable NiMH batteries or AC powered
Flash rate range | 30 to 10,000 FPM/RPM |
Flash rate accuracy | 0.002% of setting or + or - least significant digit/0.01 FPM |
Flash duration | 8 to 20 microseconds/230mJoules up to 3450 FPM |
Flashtube | Xenon with 100-million flash life span |
Average Power | >13 W above 3450 FPM |
Display | 6-digit LCD |
Duty cycle | Continuous |
Flash rate resolution | 1 FPM |
Power supply | 230V AC, 50 to 400 Hz |
Dimensions | Body: 3.66 x 3.56 x 9"/93 x 90 x 229mm Reflector housing: 4.8"/122mm diameter Handle: 4.35"/108mm |
Weight | 1.5lb |
-
-
