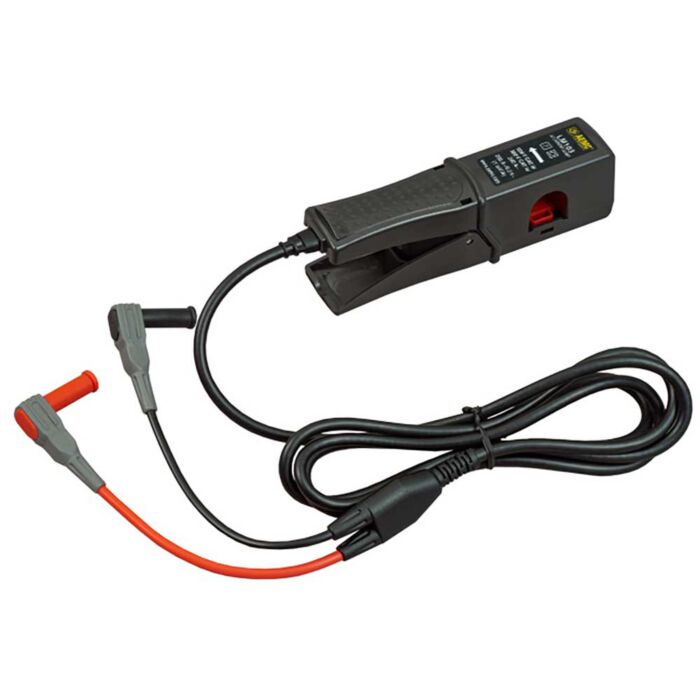

AEMC Instruments LM103 AC Current Probe (200A/1mv/A)
AC Current Probe (200A/1mv/A)
Order #: LM103
Mfg #: 2153.05
Special Price
$293.55
Regular Price
$309.00
AEMC Instruments LM103 AC Current Probe (200A/1mv/A)
AC Current Probe (200A/1mv/A)
Order #: LM103
Mfg #: 2153.05
Special Price
$293.55
Regular Price
$309.00
Availability: Ships in 1-2 weeks
Product Highlights
The LM103 is a general-purpose AC current probe designed for Power analyzer, DMM and other measuring instruments with voltage input. It has an output of 1mV per Amp. The LM103 has integral 5 ft (1.5m) leads terminated by safety 4mm banana plugs.
- Clamping diameter 0.63" (16mm)
- Measurement range from 0.1 to 200 Amps
- Over range up to 350 Amps continuous
- 1ma/A output (model LM102)
- 1mv/A output (model LM103)
- Clothes pin design allows access to tight places
- Frequency response from 48 to 10kHz
- Arrow marker clearly assist in proper orientation for power measurement applications
| Maximum Conductor Size | .63" (16mm) |
| Current Range | 200Arms AC |
| Measurement Range | 0.01 to 350A |
| Output Signal | 1mV/A AC (200mV @ 200A) |
| Transformation Ratio | 1000:1 |
| Output | 5 ft (1.5m) lead with 4mm safety banana plug |
| Accuracy 50/60Hz | 1.5% ± 0.02A |
| Frequency Range | 48Hz to 10kHz |
| Phase Shift at 50Hz | 3° max |
| Load Impedance | ?10K? |
| Overload | 350A continuously up to 1kHz |
| Dimensions (HxWxD) | 5.12 x 1.81 x 1.34" (130.4 x 46 x 34mm) |
| Weight | 8.8 oz (250g) |
| Operating Temperature | 14° to +122°F (-10° to +50°C) |
| Storage Temperature | -40° to +176°F (-40° to +80°C) |
| Operating Humidity | 85% RH |
| Pollution Degree | 2 |
| Ingress Protection (lP) | IP40 |
| EMC | EN 61326-1 |
| Safety Compliance | EN/IEC 61010-2-32, 600V CAT III |
