AEMC Instruments MR6292, 2129.86 AC/DC Current Probe for Model 6292
Order #: 2129.86
Mfg #: 2129.86
Product Highlights
The AC/DC Current Probe Model MR6292 is an accessory for the AEMC® Micro-Ohmmeter Model 6292. The Model MR6292 probe is required for using the Model 6292 to take measurements in BSG (both sides grounded) mode. The probe is designed to meet the latest safety and performance standards. The probe’s hook-shaped jaws enable you to “pry” into or “hook” onto cables (it will accept 2 x 500 MCM) or small bus bars.
The Model MR6292 uses Hall effect technology. All electronics are self-contained in the handle. The output of the probe is 10mV/A. No battery is required; the probe operates via voltage provided by the Model 6292. The probe has a proportional mV output for direct reading on the Model 6292.
-

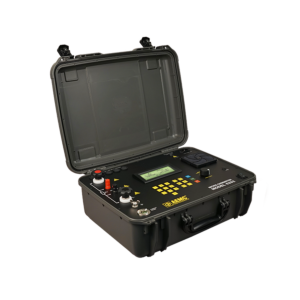

AEMC Instruments 6292 Micro-OhmmeterMicro-Ohmmeter, 5 to 200A (True DC)Order #: 2129.83
Mfg #: 2129.83
Availability: Ships in 1-2 weeksSpecial Price $7,096.50 Regular Price $7,470.00
| Measurement Range | 1 to 50ADC |
| Accuracy | 1 to 50ADC: 1.5% reading ± 0.2A |
| Output Signal | 10mV/ADC |
| Load Impedance | >100kΩ/100pF |
| Insertion Impedance | 0.39mΩ @ 50Hz, 58mΩ @1000Hz |
| Working Voltage | 600Vrms |
| Influence of Adjacent Conductor | <10mA/A at 50Hz at 23mm from the probe |
| Influence of Conductor in Jaw Opening | 0.5% reading |
| Power Source | Powered by Micro-Ohmmeter Model 6292 |
| Jaw Opening | 1.2" (31mm) |
| Maximum Cable Diameter | One 1.18" (30mm) or two 0.95" (24mm) or two bus bars 1.2 x 0.4" (31.5 x 10mm) |
| Output | 4-conductor shielded cable with 5-pin XLR connector |
| Dimensions | 8.8 x 3.82 x 1.73" (224 x 97 x 44mm) |
| Weight | 15 oz (440g) |
| Saftey | EN 61010-2-32, 600V CAT III, Pollution: 2 |
