Keysight N9918B-210 Vector network analyzer, transmission/reflection
Vector network analyzer transmission/reflection
Order #: N9918B-210
Mfg #: N9918B-210
$8,147.00
Keysight N9918B-210 Vector network analyzer, transmission/reflection
Vector network analyzer transmission/reflection
Order #: N9918B-210
Mfg #: N9918B-210
$8,147.00
Availability: Ships in 4-6 weeks
Product Highlights
- Vector network analyzer
- Transmission/reflection (S21, S11), magnitude and phase
- 30 kHz to 4 GHz
- Dynamic range >115 dB
- High output power at 1 GHz > 8 dBm, adjustable in 1 dB steps
Description
A base N9913/4/5/6/7/8B combination analyzer includes a cable and antenna analyzer. Option 210 adds:

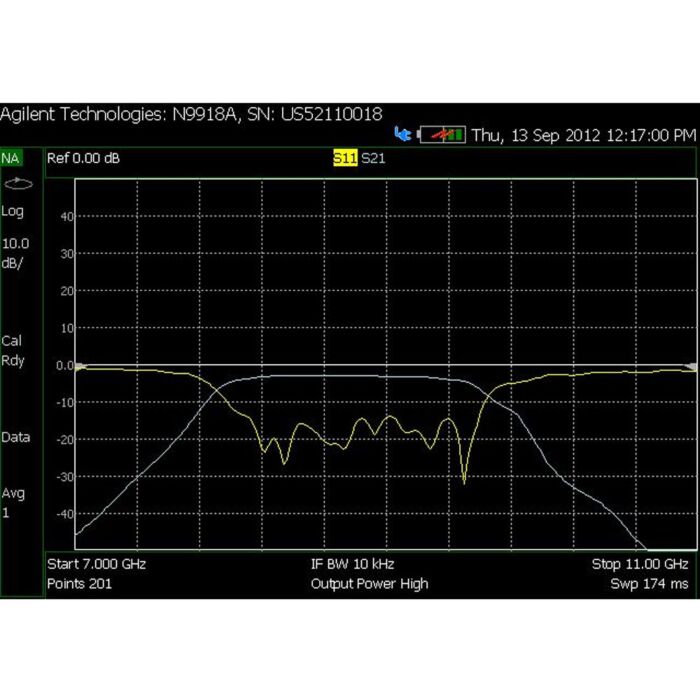

- A vector network analyzer mode with transmission/reflection or S21 and S11 measurements, both magnitude and phase. Available calibrations are CalReady, one-port OSL, response and enhanced response.
- Insertion loss measurement to the base cable and antenna analyzer or CAT mode.
- 2-port transmission measurement to the vector voltmeter mode, available as Option 308.
- Tracking capability to the spectrum analyzer independent source, available as Option 233 (source and spectrum analyzer set to sweep a frequency range, in sync)
