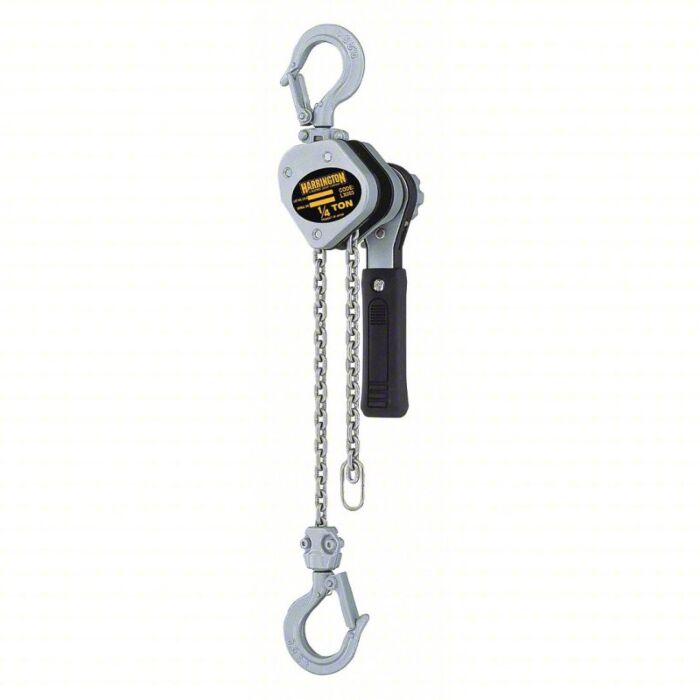

Harrington Hoists and Cranes LX003

LeverChainHoist:500lb Load Cap, 40lb Pull to Lift Rated Load

Order #: LX003-10'

Mfg #: LX003-10

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$384.61

Availability: Ships in 3-4 weeks

Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.

Product Overview

Product Highlights

10 ft. Lift Lever Hook Mounted Chain Hoists Made with all-steel construction, these spring-loaded, free-wheeling devices allow adjustment and safeguard against accidental free wheeling. Features include Weston-style load brakes, dual-stage reduction gearing, and hardened alloy steel, nickel-plated grade 100 load chains. The top and bottom hooks rotate 360° and open slowly without fracturing under overloads.

Specifications

Load Capacity	500 lb
Hoist Lift	10 ft
Min. Between Hooks	8 in
Pull to Lift Rated Load	40 lb
Reeving	1
Lever Length	5-29/32 in
Hook Opening	51/64 in
Brake	Weston Style Load Brake
Chain	Nickel Plated
Chain Length	11 ft
Finish	Electrostatic Enamel
Standards	ASME B30.21; ASMEHST-3
Includes	Load Chain
Hoist Overload Protection	No
Hoist Mount	Hook Mounted - No Trolley

Technical Resources

Harrington Hoists and Cranes LX Series Datasheet

Harrington Hoists and Cranes LX003
