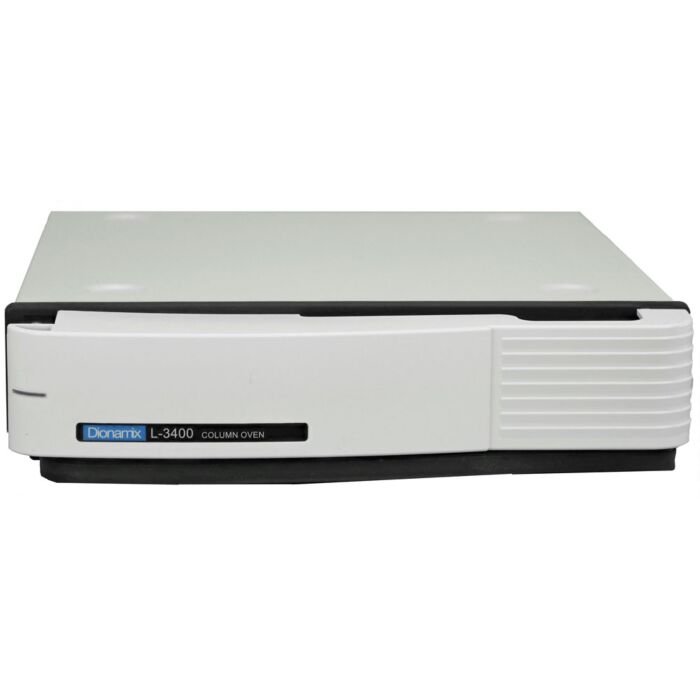

Dionamix L-3400
Temperature controlled column chamber
Order #: L-3400
Mfg #: 3021003400
$4,995.00
Dionamix L-3400
Temperature controlled column chamber
Order #: L-3400
Mfg #: 3021003400
$4,995.00
Availability: Ships in 3-4 weeks
Product Highlights
- Precise mobile phase temperature control
- Improved retention time repeatability
The L-3400 Column oven is designed to accurately control mobile phase temperatures using semiconductor heating and precision temperature control algorithm. Regulating the mobile phase temperatures reduces effect of any temperature variation has on the column and elution, producing more accurate results.
-
Dionamix 2010003743C-type inlet check valve sleeve L-32XX PumpsOrder #: 2010003743
Mfg #: 2010003743
Availability: Ships in 3-4 weeks$49.00
| Specification | ||
| Temperature range | Room temperature +5°C to 70°C | |
| Temperature Stability | ±0.1°C | |
| Temperature Accuracy | ±1°C | |
| Column Capacity | 250 mm | |
| Temperature Rising/ Falling Speed | Rising Speed: ≥ 2°C/min (40°C to 60 °C) | Falling Speed: ≥ 1.5°C/min (60°C to 40 °C) |
| Specification | ||
| Weight | 7.6 kg (16.75 lbs) | |
| Dimension (LxWxH) | 464 x 370 x 90 mm18.3 x 14.6 x 3.6 inches | |
| Voltage | 110 VAC rms - 240 VAC rms | |
| Frequency | 50 Hz - 60 Hz | |
| Power | 170 W max | |
| Operating Temperature | 15°C - 35°C 59°F - 95°F | |
| Operating Humidity | 20% RH - 80% RH |
