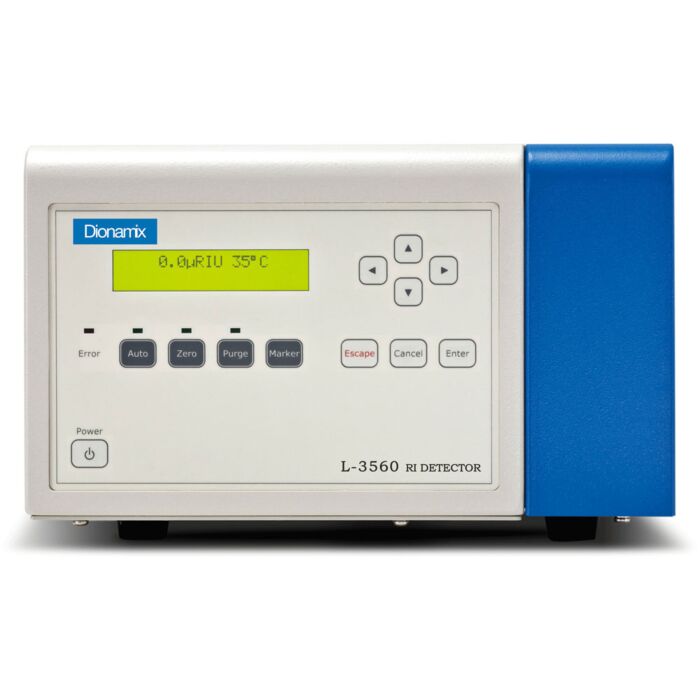

Dionamix L-3560
Refractive Idex Detector
Order #: L-3560
Mfg #: 3021003560
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Product Highlights L-3560 RI Detector is for the analysis of compounds with little or no absorption in the UV range. It is ideal for detection of alcohols, sugars, carbohydrates, fatty acids and polymers with Dionamix HPLC system
Key Features Integrates with Dionamix L-3000 HPLC and Ultrachrom Analytical Software Solution Key Performance Specifications Refractive Index range 1.00 - 1.75 Measuring Range 0.25 - 512
Dionamix 2010003743
C-type inlet check valve sleeve L-32XX Pumps
Order #: 2010003743
Mfg #: 2010003743
Availability: Ships in 3-4 weeks
$49.00
Specification
Construction
Deflection type
Refractive Index Range
1.00 ~ 1.75
Range
1/4 ~ 512 µRIU
Linearity
600 µRIU
Noise
≤2.5 nRIU( Response : 3 seconds )
Response Time
0.1, 0.25, 0.5, 1.0, 1.5, 2, 3, 6 sec.
Polarity
Positive/Negative
Auto Zero
Optical & Electrical Auto-Zero
Auto Zero Range
All Refractive Index Range
Auto Zero Resolution
≤1 (@8mV/µRIU) / 4 (@2mV/µRIU) nRIU
Offset Range
0 to 500mV (same with Integrator output sensitivity)
Offset Resolution
10mV (same with Integrator output sensitivity)
Integrator Output
0 to 1V/FS (Sensitivity: 2mV/mRIU, 8mV/mRIU)
Recorder Output
0 to 10mV/FS
Event Marker Marker out:
≥5% of FS
Temperature Control
OFF, 30 to 55°C (1°C increment): 80°C Thermal Protector
Operator Support
Span Check/Validation Display
External Communication
RS232C
Cell Volume
8µL
Maximum Flow Rate
10 ml/min (mobile phase: pure water)
Pressure Rating
50 kPa (0.5 kgf/cm2)
Internal Volume
Inlet Port / Flow Cell: approx. 60µL
Flow Cell / Outlet Port: approx. 480µL
Total: approx. 540µL
Wetted Material
SST316, Teflon, Quarts Glass
Power Requirement
100 ~ 240VAC +/- 10%: 50-60Hz
Power Consumption
120VA maximum
Dimensions
H 150 x W 260 x D 450 (mm)
Weight
12 kgs (26 lbs)
EMC Standards
EN61326-1,EN61326-2-1
Safety Standards
EN61010-1
