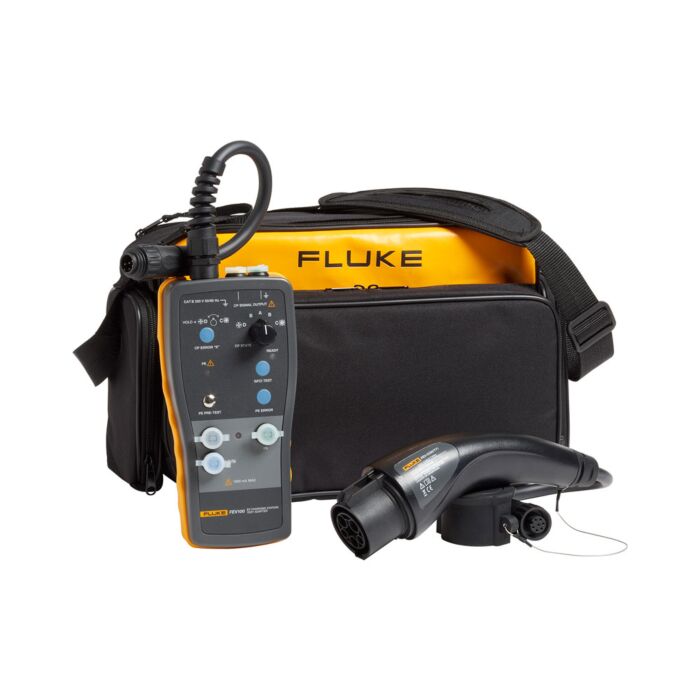

Fluke FEV100/TY1 Test adapter EV charging stations w/type 1 connect & cable

Product Highlights

Fluke FEV100/TY1 is the first Fluke product for the electric vehicle charging segment. It is designed to test function and safety of electric vehicles charging stations, reccomended to comply with SAE-J1772 standards for US stations. Provides critical protective ground testing of the station, GFCI troubleshooting and CP communication stages between vehicle and station.

The Fluke FEV100 is an adaptor that simulates the presence of an electrical vehicle to test the functionality and safety of an electric vehicle AC charging station.

Check that an electric vehicle charging station is correctly wired and that protective earth is functioning properly with the PE pre-test feature.

Perform GFCI troubleshooting of an electric vehicle charging station and verify it is functioning properly for safety.

Test different charging states of an electric vehicle charging station with the turn of a button. Verify the charging voltage using a digital multimeter.

• CP State Simulation: A: ± 12V 1kHz; B: 2.74kΩ +9 V / -12V 1kHz; C: 882Ω +6 V / -12V 1kHz; D: 246Ω +3V / -12V 1kHz
• Output voltage : Max. 250 V / 60 Hz, CAT II 300 V
• Compatibility with other test and measurement tools : Digital multimeter, oscilloscope
• Safety Testing : Protective grounding test (PE), GFCI test

Key Uses of this Product:

Simulates electric vehicle and vehicle faults

Adapter for test and measurement tools

Tests mains supply and grounding

Tests GFCI ground fault circuit interrupter
