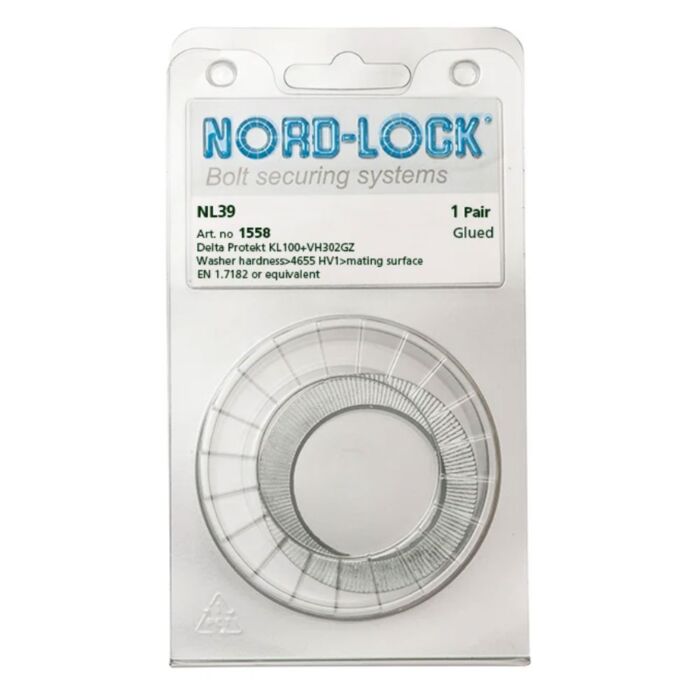

NORD-LOCK NL39
Wedge Locking Washers, 1 1/2", ID 1.59", OD 2 3/10", 25prs/bx
Order #: NL39
Mfg #: NL39DP
$208.52
NORD-LOCK NL39
Wedge Locking Washers, 1 1/2", ID 1.59", OD 2 3/10", 25prs/bx
Order #: NL39
Mfg #: NL39DP
$208.52
Availability: Ships in 1-2 weeks
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
1 1/2"(M39), Steel wedge locking washers, Delta Protekt ID 1.59", OD 2 3/10", 25prs/bx
- Nord-Lock wedge-locking washers secure bolted joints
- Wedge-locking washers suitable for many different tasks and challenges
Product Details
- Bolt size: 39 mm
- Inner diameter (d): 40.4 mm
- Outer diameter (D): 58.5 mm
- Thickness (T): 5.8 mm
- Material: Steel
- Article number: 1558
- Pairs per pack: 25
Technical Specifcations
- Steel Type: EN 1.7182
- Available sizes with normal outer diameter: M3 - M42 (metric) and #5 - 1 1/2" (inches)
- Available sizes with enlarged outer diameter: M3.5 - M36 (metric) and #6 - 1 3/8" (inches)
- Surface coating: Zink flake coating, Delta Protekt
Nord-Lock | Bolt size | Washer size [mm] | |||
Product name | Metric | UNC | Inner diameter (d) | Outer diameter (D) | Thickness (T) |
NL3 | M3 | #5 | 3.4 | 7.0 | 1.8 |
NL3.5 | M3.5 | #6 | 3.9 | 7.6 | 1.8 |
NL3.5sp | M3.5 | #6 | 3.9 | 9.0 | 1.8 |
NL4 | M4 | #8 | 4.4 | 7.6 | 1.8 |
NL4sp | M4 | #8 | 4.4 | 9.0 | 1.8 |
NL5 | M5 | #10 | 5.4 | 9.0 | 1.8 |
NL5sp | M5 | #10 | 5.4 | 10.8 | 1.8 |
NL6 | M6 | 6.5 | 10.8 | 1.8 | |
NL6sp | M6 | 6.5 | 13.5 | 2.5 | |
NL1/4" | 1/4" | 7.2 | 11.5 | 2.5 | |
NL1/4"sp | 1/4" | 7.2 | 13.5 | 2.5 | |
NL8 | M8 | 5/16" | 8.7 | 13.5 | 2.5 |
NL8sp | M8 | 5/16" | 8.7 | 16.6 | 2.5 |
NL3/8" | 3/8" | 10.3 | 16.6 | 2.5 | |
NL3/8"sp | 3/8" | 10.3 | 21.0 | 2.5 | |
NL10 | M10 | 10.7 | 16.6 | 2.5 | |
NL10sp | M10 | 10.7 | 21.0 | 2.5 | |
NL11 | M11 | 7/16" | 11.4 | 18.5 | 2.5 |
NL12 | M12 | 13.0 | 19.5 | 2.5 | |
NL12sp | M12 | 13.0 | 25.4 | 3.4 | |
NL1/2" | 1/2" | 13.5 | 19.5 | 2.5 | |
NL1/2"sp | 1/2" | 13.5 | 25.4 | 3.4 | |
NL14 | M14 | 9/16" | 15.2 | 23.0 | 3.4 |
NL14sp | M14 | 9/16" | 15.2 | 30.7 | 3.4 |
NL16 | M16 | 5/8" | 17.0 | 25.4 | 3.4 |
NL16sp | M16 | 5/8" | 17.0 | 30.7 | 3.4 |
NL18 | M18 | 19.5 | 29.0 | 3.4 | |
NL18sp | M18 | 19.5 | 34.5 | 3.4 | |
NL3/4" | 3/4" | 20.0 | 30.7 | 3.4 | |
NL3/4"sp | 3/4" | 20.0 | 39.0 | 3.4 | |
NL20 | M20 | 21.4 | 30.7 | 3.4 | |
NL20sp | M20 | 21.4 | 39.0 | 3.4 | |
NL22 | M22 | 7/8" | 23.4 | 34.5 | 3.4 |
NL22sp | M22 | 7/8" | 23.4 | 42.0 | 4.6 |
NL24 | M24 | 25.3 | 39.0 | 3.4 | |
NL24sp | M24 | 25.3 | 48.5 | 4.6 | |
NL1" | 1" | 27.9 | 39.0 | 3.4 | |
NL1"sp | 1" | 27.9 | 48.5 | 4.6 | |
NL27 | M27 | 28.4 | 42.0 | 5.8 | |
NL27sp | M27 | 28.4 | 48.5 | 5.8 | |
NL30 | M30 | 1 1/8" | 31.4 | 47.0 | 5.8 |
NL30sp | M30 | 1 1/8" | 31.4 | 55.0 | 5.8 |
NL33 | M33 | 1 1/4" | 34.4 | 48.5 | 5.8 |
NL33sp | M33 | 1 1/4" | 34.4 | 58.5 | 5.8 |
NL36 | M36 | 1 3/8" | 37.4 | 55.0 | 5.8 |
NL36sp | M36 | 1 3/8" | 37.4 | 63.0 | 6.6 |
NL39 | M39 | 1 1/2" | 40.4 | 58.5 | 5.8 |
NL42 | M42 | 43.2 | 63.0 | 5.8 |
