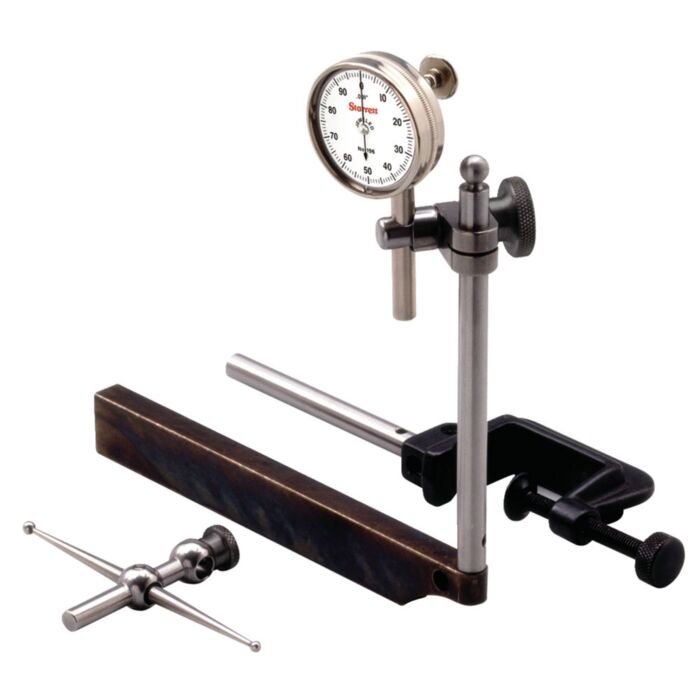

Starrett 196A1Z
Dial Indicator w/Attachments, 0-100 Dial, .001 Grads.

Order #: 196A1Z

Mfg #: 50697

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $334.08 Regular Price $348.00

Starrett 196A1Z

Dial Indicator w/Attachments, 0-100 Dial, .001 Grads.

Order #: 196A1Z

Mfg #: 50697

Special Price $334.08 Regular Price $348.00
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

The Starrett 196 Universal Back Plunger Dial Indicator features graduations to .001" and 0.02mm that handle by far the majority of jobs. Shank diameter is 1/4"" (6.3mm). Antimagnetic models are also available – (inch reading) 196A6Z and 196B6. For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model. Then the contact should be brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation. 0-100 with 3 Contact Points, Adapter, 4 Attachments in Case This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation.
