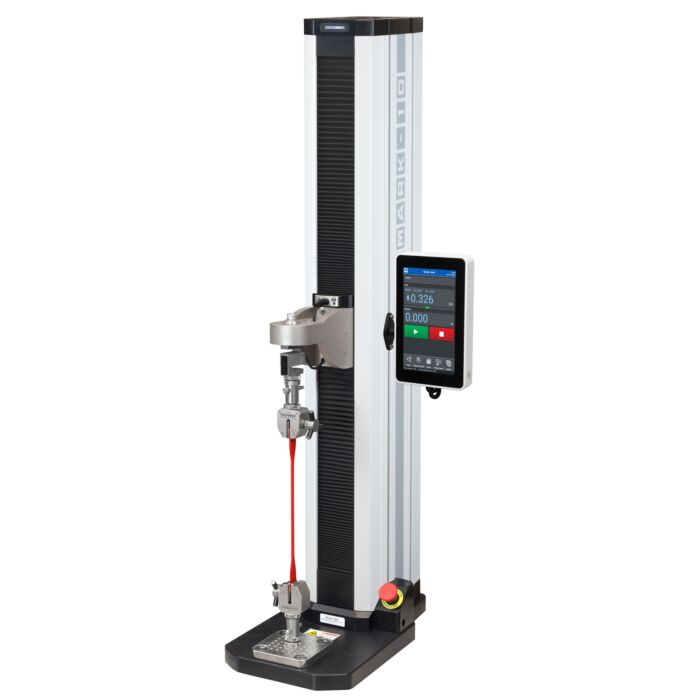

Mark-10 F755-EM Test frame with EasyMESUR control panel, vertical, short, 1, 500lbF

Product Highlights

Series F test frames with EasyMESUR® are engineered to perform a wide range of tension and compression tests, including break testing, cycling, limit testing to a load or distance, load holding, average force testing, and more.

Set up and run tests, export results, and create a report via the integrated, easy-to-use touchscreen interface - no PC or force gauge required. For unique needs, run the tester from a PC with your own custom application utilizing EasyMESUR®'s serial command library.

Sample setup and fine positioning are a breeze with available FollowMe® force-based positioning - using your hand as your guide, push and pull on the force gauge or load cell to move the crosshead at a variable rate of speed.

Engineered around a modular function platform, the EasyMESUR® run screen can be arranged with large, simple controls - or configured for more advanced applications with a selection of optional functions, including distance measurement, graphing, cycling, and more. Purchase functions and packages at time of order or enable them in the field via activation codes. All testers are shipped in a 160-hour evaluation mode, in which all functions are available.

Generous travel, clearance, and depth dimensions accommodate samples of various shapes and properties. Modular mechanical design accommodates single- and double-column extensions for oversized specimens.

Select from a broad range of force sensor capacities and an expansive array of grips and fixtures.

Rigid and precise by design

Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of ±0.006 in / 0.15 mm under any load, at any position.

Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.

The EasyMESUR® integrated control panel centralizes test setup, test frame control, and data collection into one convenient place. Use the 7" touchscreen to create and run a wide range of tests, including:

• Test to a load
• Test to a sample break
• Test to a distance
• Load holding
• Cycle testing
• Average force testing

Each Unit Includes

The F755-EM, F755S-EM, F1505-EM, and F1505S-EM advanced test frames are shipped as shown at left, and includes the following accessories:

• (1) Control panel, mounting bracket, and hardware
• (1) Eye end kit for base
• (2) Lock ring for eye end
• (2) Spanner wrench
• (1) Power cord
• (1) Allen wrench set
