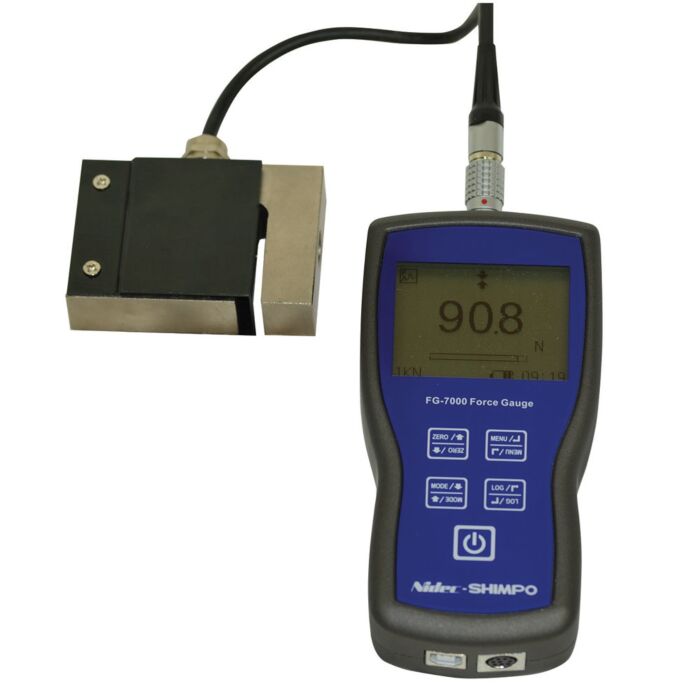

Shimpo FG-7000L-R-10
Digital Force Gauge w/Remote Ring Type Load Cell,2250 lb.

Order #: FG-7000L-R-10

Mfg #: FG-7000L-R-10

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $1,222.00 Regular Price $1,300.00

Shimpo FG-7000L-R-10

Digital Force Gauge w/Remote Ring Type Load Cell,2250 lb.

Order #: FG-7000L-R-10

Mfg #: FG-7000L-R-10

Loading...
Print Save Item Compare
Special Price $1,222.00 Regular Price $1,300.00
Register to view exclusive member pricing
The FG-7000L Series digital force gauges provide additional tension and compression testing flexibility with their external load cell input.
Availability: Ships in 3-4 weeks

 Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.

Product Highlights

  • 1000 Hz Sample Rate combined with +/-0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Four mode operation: Track, Peak, First Peak & Auto-Peak
  • 180° Auto-reversible display, tension/compression icons, and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing
  • 1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering units selection provides flexible user comfort
  • Datalogging/graphing software available for free download on website
  • Accuracy ± 0.2% F.S.
  • Selectable Units kN, N, kgf, tf, lbf and klbf. (Depending on Range)
  • Overload Capacity S beam: 150% of F.S.; Ring & Mini Ring Type 120% of F.S. (LCD flashes beyond 110% of F.S.)
  • Measurement Method Peak, Autopeak, First Peak or Track Mode
  • Data Sampling Rate 1000 Hz
  • Display 160*128 dot matrix LCD with LED Backlight
  • Display Update Rate 10 times/second
  • Memory 1000 data
  • Set Point Programmable high and low limits
  • Battery Indicator Display flashes battery icon when battery is low
  • Power 3.6VDC 800mAH Ni-MH rechargeable batteries
  • Battery Life Approximately 16 hours continuous use per full charge
  • Charger / Adaptor Universal USB/BM charger, Input: 110 ~ 240VAC
  • Temperature EffectsOperating Temperature 14 to 104°F (-10 to 40°C)
  • Storage Temperature -4 to 122°F (-20 to 50°C)
  • Oper. Relative Humidity 5 to 95%
  • Housing Aluminum
  • Outputs USB,Serial Port RS-232, High & Low Limit NPN
  • Dimensions 5.7 x 2.9 x 1.4˝ (145 x 73 x 35.5 mm)
  • Product Weight 1.5 lb (0.7 kg)
  • Package Weight 2.8 lb (1.3 kg)
  • Warranty 1-Year
  • Certifications CE

Each Unit Includes

  • FG-7000L Digital Gauge
  • Remote Ring Type Load Cell 2250 lb (10 kN) Capacity
  • AC Adapter/Charger
  • USB cable
  • Calibration Cert.
