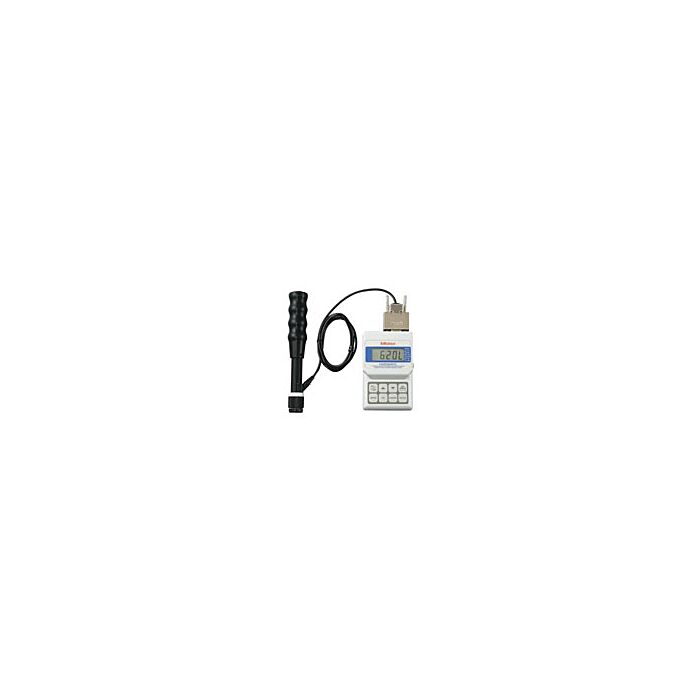

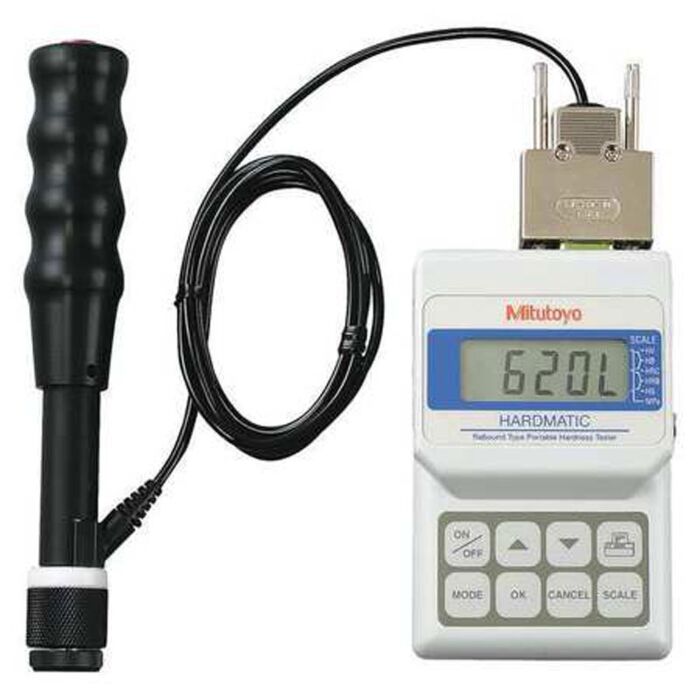

Mitutoyo HH-411
Order #: 810-298-10
Mfg #: 810-298-10
Product Highlights
Compact hardess tester kit, with Type D detector
HH-411 is a compact portable hardness tester that is user-friendly. A single touch of a button performs the non-destructive impact hardness test so it's extremely easy to test workpieces on site.
User-friendly
To make a hardness test, just press the button on the impactor while holding it against the workpiece surface. It is easy and user-friendly.
A choice of impactor
- D type: Standard, general purpose type.
- DC type: For inner walls of pipes.
- D+15 type: For bearings and gears.
- DL type: For narrow features such as small gear teeth and welded corners.
Equipped with data storage function
A maximum 1800 data entries of hardness test results can be stored. This function is very useful for routine tests at work sites.
Hardness testing on narrow surfaces is possible
Only a small surface area is needed for testing hardness with the HH-411. (A small o22mm for the standard type D impactor, and a minute o4mm for the optional type DL impactor.) This feature makes the HH-411 extremely useful for testing the hardness of surfaces such as structural elements, gear teeth, etc.
Equipped with auto angle compensation function
Impact-type hardness measurements are normally affected by gravity, depending on the angle at which the impactor is held, but the HH-411 is equipped with the latest measuring technology that automatically recognizes impactor orientation and compensates for this effect so maximum accuracy is realized in every measurement.
Unit of hardness is selectable for various purposes
The HH-411 produces HL hardness scale results (L hardness: conforming to ASTM A 956), automatically converting to Vickers, Brinell, Rockwell C, Rockwell B, Shore and tensile strength, as required during testing.
Each Unit Includes
- Hardmatic Impact Type Hardness Tester
- Test Block HLD800
- Display Unit
- D Type Impactor UD-411
- Cable
- 2 x AA Alkaline Batteries
| Order No. | 810-298-10 (ASTM Type) |
| Model | HH-411 |
| Impactor | Impact hammer with integrated detector and carbide-ball tip (D type: conforming to ASTM A 956) |
| Display unit | 7-segment LCD |
| Display range | Leeb: 1-999HL Resolution 1HL Vickers: 43-950HV Resolution 1HV Brinell: 20-894HB Resolution 1HB Rockwell C: 19.3-68.2HRC Resolution 0.1HRC Rockwell B: 13.5-101.7HRB Resolution 0.1HRB Shore: 13.2-99.3HS Resolution 0.1 HS Tensile strength: 499-1996MPa Resolution 1MPa (Display range depends on conversion table.) |
| Functions | Auto Angle Compensation Function, Offset function OK/NG judgment function, Conversion function Data storage function: 1800 data entries Statistical analysis (Average, Maximum, Minimum, Dispersion) Auto sleep function, Impact counter display function |
| Testable workpiece limits | Minimum 5mm or more in thickness and 5kg or more in mass (When the sample mass is 0.1kg or more and less than 5kg, fix it against a larger mass to make it testable.) Test points: 5mm or more from the edge of the sample, 3mm or more to each of the tested points. Surface roughness of samples: Ra 10m or less |
| Output | RS-232C, SPC (each 1 output, simultaneous output is possible) |
| Power supply | Alkaline AA battery 2pcs (battery life: approx. 70 hours) AC adapter (optional accessory) |
| Operating environment | Temperature: 0
|
