US
CAN - en Order #: T5-600E
Mfg #: 648227

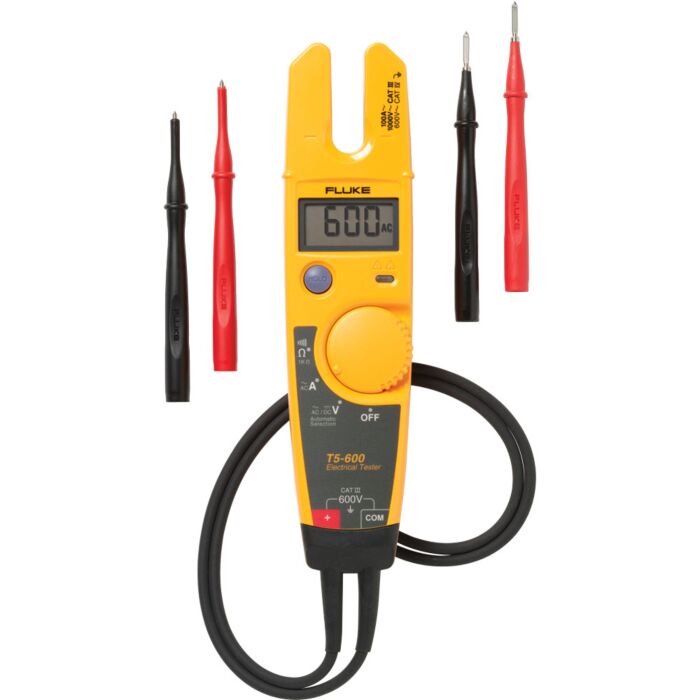

Fluke T5-600 Electrical Tester, Flat
Order #: T5-600E
Mfg #: 648227
Overview
Electrical tester with OpenJaw™ Current
The Fluke T5 Electrical Testers let you check voltage, continuity and current with one compact tool. With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. OpenJaw™ current lets you check current up to 100A - without breaking the circuit. Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach™ test probes are customized for national electrical standards. The test leads accept optional accessories such as clips and specialty probes. The optional H5 holster lets you clip the T5 onto your belt.
Product Highlights
- Checks Current without Breaking Circuit
- Measures AC/DC Voltage to 600V, AC Current to 100A, Resistance to 1000 Ohms
- DCV Accuracy: ±(1% + 1 digit)
- Continuity Beeper
- Test Leads Are Built In
- Compact: 8” High, 10 Oz.
Each Unit Includes
- Probe Tips
- Instructions
Webinars
-
Fluke Toolpak Meter Hanging KitMeter Hanging KitOrder #: TPAK80-4
Mfg #: 1281997
Availability:In stockSpecial Price $46.13 Regular Price $54.99 -
Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability: Call for availabilitySpecial Price $167.79 Regular Price $199.99 -
Fluke TP2 Slim-Reach Test Probes, 2mm DiameterSlim-Reach Test Probes, 2mm Diameter
Order #: TP2E
Mfg #: 650892
Availability:In stockSpecial Price $24.89 Regular Price $29.99 -
Fluke AC285 SureGrip Alligator ClipsSureGrip Alligator Clips
Order #: AC285
Mfg #: 1610159
Availability: Ships in 4-6 weeksSpecial Price $37.34 Regular Price $44.99 -
Fluke C520A Leather Tester CaseLeather Tester Case
Order #: C520E
Mfg #: 1629104
Availability: Ships in 4-6 weeksSpecial Price $74.69 Regular Price $89.99 -
Fluke AC220 SureGrip Alligator ClipsSureGrip Alligator Clips
Order #: AC20
Mfg #: 1610103
Availability:In stockSpecial Price $53.94 Regular Price $64.99 -
Fluke TP1 Slim Reach Flat Blade Probe for Fluke Lead SetsSlim Reach Flat Blade Probe for Fluke Lead Sets
Order #: TP1E
Mfg #: 650887
Availability:In stockSpecial Price $24.89 Regular Price $29.99 -
Fluke H5 Holster for Fluke T2 or T5Holster for Fluke T2 or T5
Order #: H5E
Mfg #: 649365
Availability:In stockSpecial Price $40.66 Regular Price $48.99 -
Fluke C101 Universal Hard Carrying CaseUniversal Hard Carrying Case
Order #: 65117MM
Mfg #: 2437514
Availability:In stockSpecial Price $91.29 Regular Price $109.99 -
Fluke T5-KIT T5 Accessory Starter KitT5 Accessory Starter Kit
Order #: T5-KIT
Mfg #: 2096971
Availability:In stockSpecial Price $73.03 Regular Price $87.99
| Specifications | ||
| Jaw opening | 12.9 mm (0.5 in) | |
| Max wire size | 1/0 THHN Cable | |
| Current range AC rms | 0 to 100.0 A | |
| Accuracy AC current (50/60 Hz) | 3% ± 3 counts | |
| AC response | Averaging | |
| Voltage range AC/DC | 0 to 600 V | |
| Voltage accuracy | AC | 1.5% ± 2 counts |
| DC | 1% ± 1 count | |
| Resistance range | 0 to 1000 Ω | |
| Continuity beeper threshold | On at < 25 Ω, off at > 400 Ω | |
| Volts indicator LED threshold | Guaranteed on by 30 V AC | |
| Environmental Specifications | ||
| Operating temperature | -10°C to 50°C | |
| Storage temperature | -30°C to 60°C | |
| Humidity (without condensation) | 0% to 95% (5°C to 30°C); | |
| 0% to 75% (30°C to 40°C); | ||
| 0% to 45% (40°C to 50°C) | ||
| Dust/water resistance | Yes | |
| Operating altitude | 2000 meters max | |
| Temperature coefficient | 0.1 x (specified accuracy)/°C (< 18°C or > 28°C) | |
| Safety Specifications | ||
| Overvoltage category | CAT III 600 V AC/DC (EN61010-1) | |
| Agency approvals | UL, CSA, and VDE | |
| Maximum voltage | Between any terminal and earth ground | |
| Mechanical and General Specifications | ||
| Size | 30.5 x 51 x 203 mm | |
| Weight | 300 g | |
| Warranty | Two-years | |
| Battery life | 200 hour zinc chloride, 400 hour alkaline | |
| Battery type | 2 x AA | |
| Low battery indicator | Yes | |
| Current sensor opening | 12.9 mm | |
| Calibration cycle | 1 year | |
| Test leads | Type | Heavy duty, flexible leads rated for 1000 V use. |
| Field replaceable leads terminate in male shrouded banana plugs | ||
| Probes | One red, one black. | |
| Detachable Slim-Reach™ probe tips | ||
| Styles | TP1 Slim Reach™ Test Probes | |
Visit our Fluke Clamp Meter Selection Guide
-
Fluke T5-1000 Voltage, Continuity & Current Tester, 1000VVoltage,Continuity & Current Tester,1000VSpecial Price $183.99 Regular Price $199.99
-

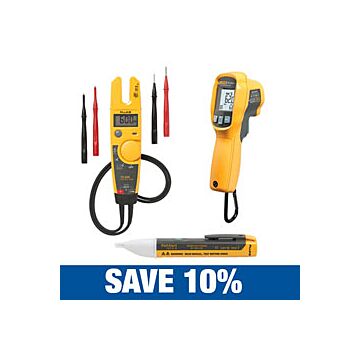

Fluke T5-600/62MAX+/1AC Thermometer, Electrical Tester and Voltage Detector Combo KitThermometer, Electrical Tester and Voltage Detector Combo KitSpecial Price $372.59 Regular Price $404.99
-
