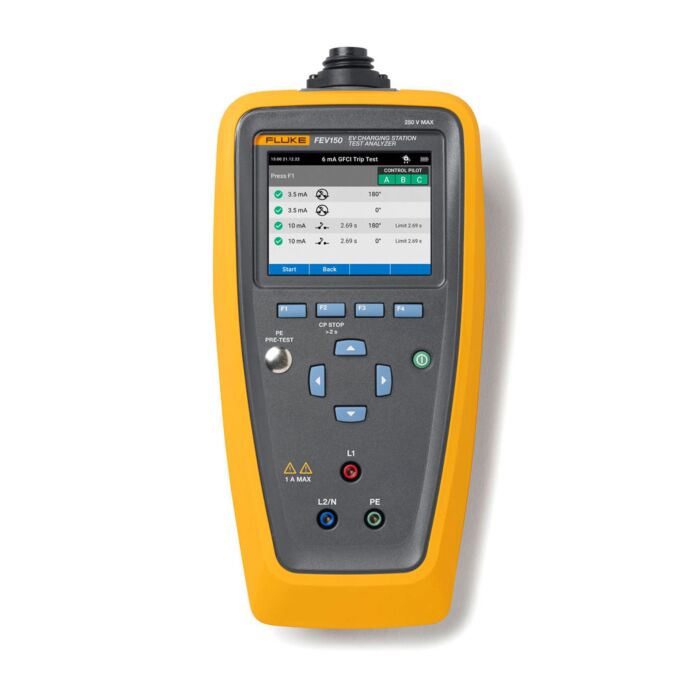

Fluke FEV150/BASIC EV charging station analyzer

Product Highlights

The Fluke FEV150/BASIC EV Charging Station Analyzer is a complete solution for safety and performance testing of AC Electric Vehicle charging stations with Type 1 (J1772) or Tesla type connectors. Deliver uptime reliability with the all-in-one tool that is safe, portable, and efficient. It is designed for technicians required to perform and document multiple tests safely, quickly and efficiently without carrying multiple tools.

The All-in-One Solution—EV Charging Station Analyzer
The color LCD display provides on-screen instructions for an easy walkthrough of tests with a Pass/Fail indication on all test results. Auto Control Pilot simulates various charging states with on-screen feedback of nominal results and waveform analysis. The PE Pre-Test checks if hazardous voltage is present. Other available measurements include Visual Inspection, GFCI Trip and No Trip Test, Nominal Voltage, Auto Control Pilot (CP) with Waveform Analysis, Proximity Pilot, and Error Testing.

TruTest Data Management and Reporting Software with EVSE Module
The all-in-one solution includes TruTest EV Charging software. TruTest is the modern, fast, and reliable software platform to cover reporting and documentation needs. TruTest integrates seamlessly with the FEV150 via Bluetooth connection to provide predetermined test plans, pass/fail indications, and pre-test voltage safety information. Users can perform asset management, data storage, and reporting on a single platform that seamlessly integrates with the FEV150 on any job.

Features

• Advanced measurements to evaluate EVSE performance and functionality
• Compatible with AC EV Charging stations with Type 1 and Tesla Type connectors
• Electrical safety testing of protective devices (6 mA and 20 mA GFCI)
• Integration with TruTest EVSE Software for documentation
• Auto control pilot with Waveform analysis (one-button press)
• All EVSE specific functional and safety tests on one device
• Create and store "projects" directly on device for seamless reporting in TruTest
• Pass/Fail test results

Key Uses:

• Simulates electric vehicle and vehicle faults
• Safety and performance analyzer for Electric Vehicle charging stations
• Tests mains supply and grounding
• Simulate EV Charging Error States
