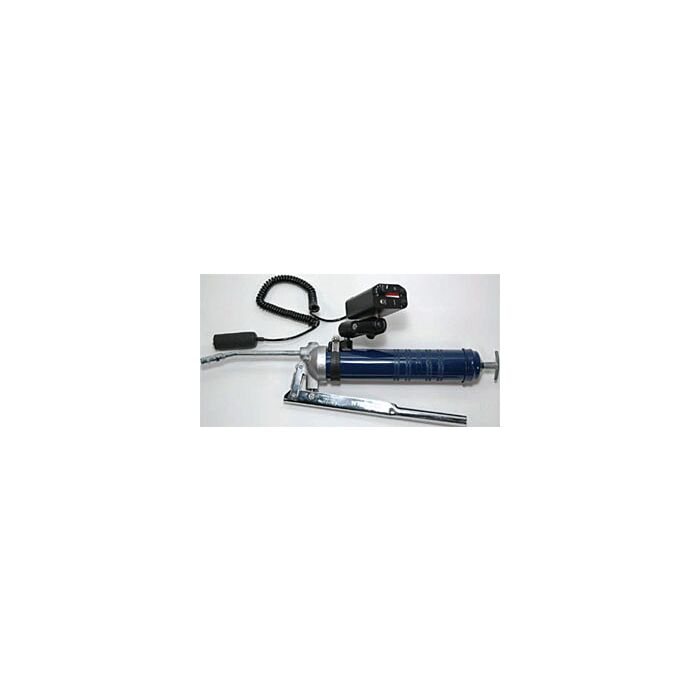

U.E. Systems UP-201

Product Highlights

• Hear when the grease is being applied
• Recognize when to stop greasing
• Prolong equipment life
• Prevent over lubrication
• Save on man-hours
• Save on operating costs
• Improve maintenance efficiencies
• Easy to read LED's provide visual indication of ultrasound amplitude
• Use the LED bar graph as a guide to know when to stop applying grease.
• Built-in front-end lamp to illuminate dark areas
• Swivel Base adjusts to odd angles
• Housing: Attaches directly to the grease gun, gives visual & audible indication for proper lubrication.
• Construction: Aluminum
• Dimensions: 5.25" x 2.65" x 1.25" (13.3 x 6.7 x 4.5 cm) (LWH)
• Operating Temperature: 32°F-140°F (0°- 60°C)
• Relative Humidity: 10-95% non-condensing at up to 86°F (30°C)
• Circuitry: SMD/Solid State heterodyne receiver
• Transducer: Piezoelectric (Acoustically isolated from Grease Gun)
• Frequency Response: Peak response: centered around 38 kHz
• Indicator: 10 Segment LED Bar Graph (red)
• Sensitivity Selection: 8 position precision attenuation
• Power: Rechargeable nickel metal hydride
• Power off: Time delay
• Low Battery Indicator: LED
• Operating Temp. Range: -22 to 167 F (-30 to +75 C)
• Cable: 48" shielded
• Deluxe noise isolating headset for hardhat use. Over 23 dB of noise attenuation. Meets or exceeds ANSI Specifications, & OSHA standards.
• Attachment: Universal: fits most commercially used cartridge grease guns.
• Weight: 16 oz (.45 kg)
• Warranty: 1 year parts/labor standard

Each Unit Includes

• * Grease gun sold separately
