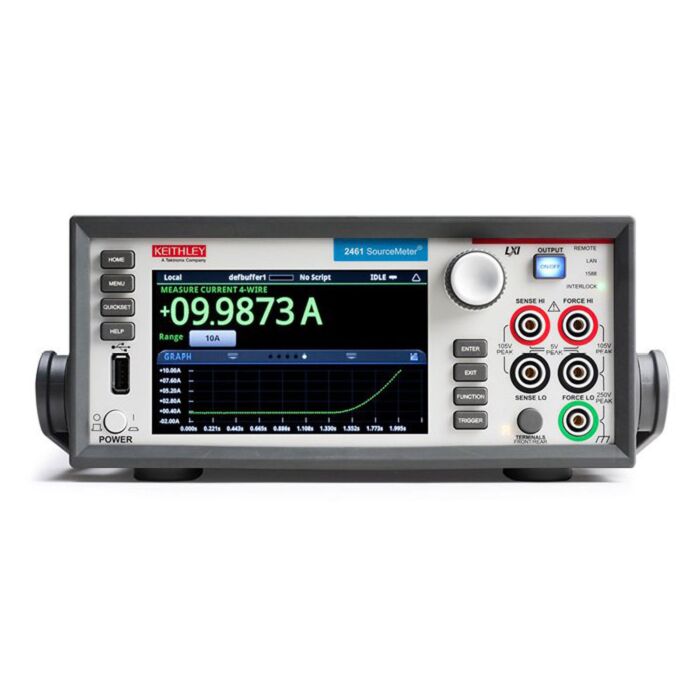

Keithley 2461 Hi Curr Interactive SourceMeter with 10A Pulse & Digitizer
Hi Curr Interactive SourceMeter w/ 10A Pulse & Digitizer
Order #: 2461
Mfg #: 2461
$12,400.00
Keithley 2461 Hi Curr Interactive SourceMeter with 10A Pulse & Digitizer
Hi Curr Interactive SourceMeter w/ 10A Pulse & Digitizer
Order #: 2461
Mfg #: 2461
Product Highlights
- Up to 105 V, 7 A DC, 100 W max; 100 V, 10 A Pulse 100 W max.
- Combines the capabilities of analyzers, curve tracers, and I-V systems
- Dual 1MS/s digitizers for fast sampling measurements
- Five-inch, high-resolution capacitive touchscreen GUI
- 0.012% DCV accuracy with 6-1/2 digit resolution
- Source and sink (4-quadrant) operation
- Four "Quickset" modes for fast setup and measurements
- Context-sensitive help function
- Front panel input banana jacks; rear panel mass termination screw connections
- SCPI and Test Script Processor (TSP®) programming modes
- Front-panel USB 2.0 memory I/O port for transferring data, test scripts, or test configurations
- One-year warranty
Each Unit Includes
- 2460-KIT Rear Panel Mating Mass Terminated Screw Connector, 8608 High Performance Test Leads, USB-B-1 USB Cable (Type A to Type B, 3.3 ft), CS-1616-3 Safety Interlock Mating Connector, CA-180-3A TSP-Link/Ethernet Cable, Documentation CD, 2461 QuickStart Guide, Test Script Builder Software, KickStart Startup Software and LabVIEW and IVI Drivers (Test Script Builder, KickStart and LabVIEW software available at www.tektronix.com)
