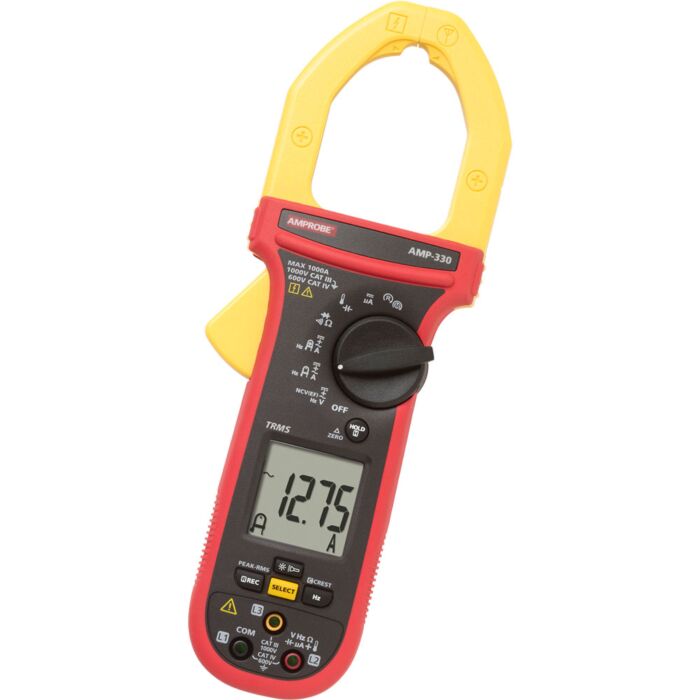

Amprobe AMP-330 1000A ACDC TRMS Clamp with Mo to r Testing

Product Highlights

• Measures AC Current to 600 A and AC/DC Voltage to 600 V
• Measures temperature from -40° to 752°F, (-40° to 400°C)
• Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
• Measures capacitance, test diodes, and features a continuity beeper
• Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
• Monitors inrush current during motor start-up
• Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
• Amp-Tip function delivers precise low AC current measurements – 0 to 60 A
• Includes a low pass filter to accurately measure voltage and current on variable frequency drives
• Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
• Provides data hold, relative zero, and MAX/MIN/AVG mode for quick analysis
• Maximizes battery life with auto power off and low battery indicator
• Backlit display for easy measurement viewing in bright and dim environments
• CAT III 600 V safety rated
• Boasts peak hold and work light
• Accommodates conductors up to 2.0 inches (51mm)

Each Unit Includes

• test leads
• batteries (installed)
• alligator clip set
• banana plug K-type thermocouple
• carrying case
• user manual
