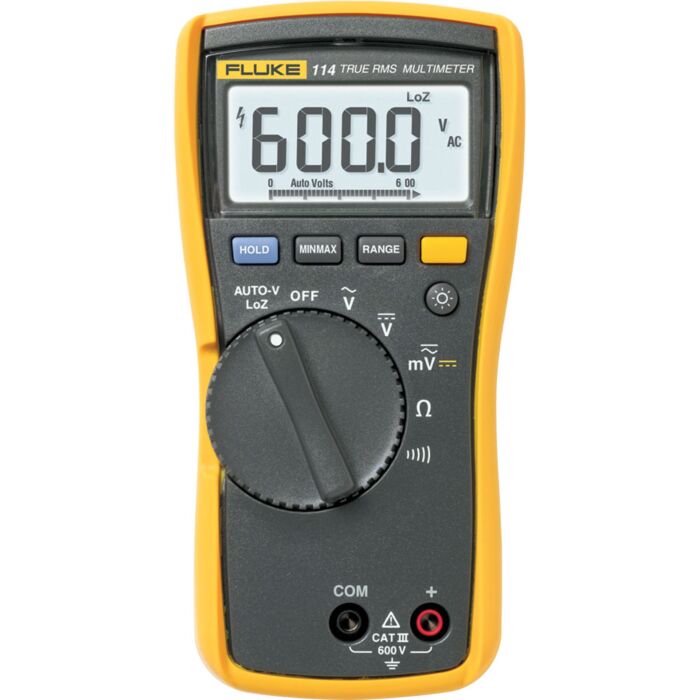

Fluke 114 Electrical Multimeter, 600V
Electrical Multimeter,600V
Order #: 65165MM
Mfg #: 2538783
Special Price
$180.10
Regular Price
$216.99
Fluke 114 Electrical Multimeter, 600V
Electrical Multimeter,600V
Order #: 65165MM
Mfg #: 2538783
Special Price
$180.10
Regular Price
$216.99
Availability:
In stock
Overview
Designed by electricians. Engineered by Fluke
Designed for easy one-hand operation, the Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for “go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called “ghost voltage and prevent false readings.
The Fluke 114 displays true-rms voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes easy.
Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments.
Product Highlights
- AutoVolt: Automatic AC/DC Voltage Selection
- Large white LED backlight to work in poorly lit areas
- Resistance and Continuity
- Min/Max/Average to record signal fluctuations
- CAT III 600 V safety rated
- Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %
- The accuracy specifications take the form of: ± ( [ % of Reading ] + [ Counts ] )
Each Unit Includes
- Holster
- Installed 9 V battery
- Test leads
- User manual
Webinars
-
Fluke C25 Soft Carrying Case for Fluke MetersSoft Carrying Case for Fluke MetersOrder #: C25
Mfg #: 681114
Availability:In stockSpecial Price $45.64 Regular Price $54.99 -
Fluke C115 Soft Carry Case with Shoulder StrapSoft Carry Case w/Shoulder Strap
Order #: C115
Mfg #: 2826063
Availability:In stockSpecial Price $45.64 Regular Price $54.99 -
Fluke TL175 TwistGuard Test LeadsTwistGuard Test Leads
Order #: TL175
Mfg #: 3521976
Availability: Ships in 4-6 weeksSpecial Price $38.17 Regular Price $45.99 -
Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability: Ships in 3-4 weeksSpecial Price $91.29 Regular Price $109.99 -
Fluke TLK-225 SureGrip Master Accessory SetSureGrip Master Accessory Set
Order #: TLK225
Mfg #: 2097031
Availability:In stockSpecial Price $192.96 Regular Price $229.99 -
Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability: Call for availabilitySpecial Price $167.79 Regular Price $199.99 -
Fluke TLK289 Industrial Master Test Lead SetIndustrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability:In stockSpecial Price $199.19 Regular Price $239.99 -
Fluke AC285 SureGrip Alligator ClipsSureGrip Alligator Clips
Order #: AC285
Mfg #: 1610159
Availability: Ships in 4-6 weeksSpecial Price $37.34 Regular Price $44.99 -
Fluke 80PK-9 Type K Lance Tip Probe, T/C Assembly, Molded Plug, 1mType K Lance Tip Probe, T/C Assembly,Moldd.Plug,1m,Bulk
Order #: 80PK-9
Mfg #: 1288229
Availability:In stockSpecial Price $87.14 Regular Price $104.99 -
Fluke 80TK Thermocouple ModuleThermocouple Module
Order #: 80TK
Mfg #: 736736
Availability:In stockSpecial Price $174.29 Regular Price $209.99 -
Special Price $48.96 Regular Price $58.99
-
Fluke CXT170 Rugged Pelican Hard CaseRugged Pelican Hard Case
Order #: CXT170
Mfg #: 3352567
Availability:In stockSpecial Price $219.94 Regular Price $264.99 -
Fluke I-200S 200A AC Oscilloscope Current Probe with BNC200A AC Oscilloscope Current Probe with BNC
Order #: I-200S
Mfg #: 664760
Availability: Ships in 3-4 weeksSpecial Price $265.59 Regular Price $319.99 -
Special Price $37.99 Regular Price $39.99
-
Fluke TL224 SureGrip Silicon Test LeadsSureGrip Silicon Test Leads
Order #: TL24
Mfg #: 1610198
Availability:In stockSpecial Price $36.51 Regular Price $43.99 -
Fluke C125 Case for Fluke 120 Series ScopeMetersCase for Fluke 120 Series ScopeMeters
Order #: C125
Mfg #: 646858
Availability:In stock$55.99 -
Fluke TL40 Retractable Tip Test Lead SetRetractable Tip Test Lead Set
Order #: TL40
Mfg #: 1590606
Availability:In stockSpecial Price $57.26 Regular Price $68.99 -
Fluke TL71 Premium Test Lead SetPremium Test Lead Set
Order #: TL71
Mfg #: 1274382
Availability: Ships in 1-2 weeksSpecial Price $36.51 Regular Price $43.99 -
Fluke AC87 Heavy Duty Bus Bar Clip SetHeavy Duty Bus Bar Clip Set
Order #: AC87
Mfg #: 1278079
Availability: Ships in 1-2 weeksSpecial Price $52.28 Regular Price $62.99 -
Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability:In stockSpecial Price $46.13 Regular Price $54.99 -
Special Price $47.13 Regular Price $56.79
-
Fluke TL75 Hard Point Test Lead SetHard Point Test Lead Set
Order #: TL75
Mfg #: 855705
Availability:In stockSpecial Price $30.70 Regular Price $36.99
| Specifications | ||
| Maximum voltage between any terminal and earth ground | 600 V | |
| Surge protection | 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2 | |
| Display | Digital: 6,000 counts, updates 4 per second | |
| Bar graph | 33 segments, updates 32 per second | |
| Operating temperature | -10°C to + 50°C | |
| Storage temperature | -40°C to + 60°C | |
| Battery type | 9 volt Alkaline, NEDA 1604A / IEC 6LR61 | |
| Battery life | 400 hours typical, without backlight | |
| Accuracy specifications | ||
| DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| DC volts | Range/resolution | 6.000 V / 0.001 |
| V60.00 V / 0.01 | ||
| V600.00 V / 0.1 V | ||
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| Auto volts | Range/resolution | 600.0 V / 0.1 V |
| Accuracy | 2.0% + 3 (DC, 45 Hz to 500 Hz) | |
| 4.0% + 3 (500 Hz to 1 kHz) | ||
| AC millivolts1 True RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
| 2.0% + 3 (500 Hz to 1 kHz) | ||
| AC volts1 True RMS | Range/resolution | 6.000 V / 0.001 |
| V60.00 V / 0.01 | ||
| V600.0 V / 0.1 V | ||
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
| 2.0% + 3 (500 Hz to 1 kHz) | ||
| Continuity | Range/resolution | 600 Ω / 1 Ω |
| Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of | |
| 500 μs or longer. | ||
| Ohms | Range/resolution | 600.0 Ω / 0.1 Ω |
| 6.000 kΩ / 0.001 kΩ | ||
| 60.00 kΩ / 0.01 kΩ | ||
| 600.0 kΩ / 0.1 kΩ | ||
| 6.000 MΩ / 0.001 MΩ | ||
| Accuracy | 0.9% + 1 | |
| Range/resolution | 40.00 MΩ / 0.01 MΩ | |
| Accuracy | 5% + 2 | |
| 1. All ac voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. | ||
| 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. | ||
| 2. Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current. | ||
| 2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F. | ||
| Mechanical & General Specifications | ||
| Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
| Weight | 550 g | |
| Warranty | 3 years | |
