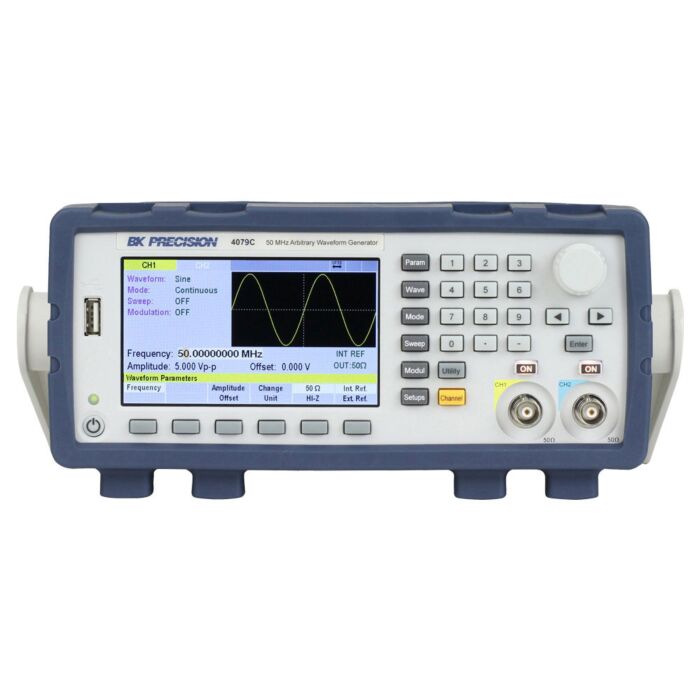

BK Precision 4079C 50 MHz Dual Channel Function/ Arbitrary Waveform Generator

Product Highlights

The 4078C Series Arbitrary/Function Waveform Generators are versatile high-performance dual-channel arbitrary waveform generators comprised of a 30 MHz and 50 MHz model. They provide variable output voltages from 0 to 10 Vp-p into 50 ohms or up to 20 Vp-p into an open circuit, and a DC offset to bias the output signal at a desired level.

With up to 250 MSa/s sampling rate and 16-bit amplitude resolution, these instruments produce high fidelity waveforms without skipping points. Easily generate arbitrary waveforms of up to 4 million points from the front panel using the built-in editor tool. Additional features include AM, FM, and FSK modulation, frequency sweep capabilities, and variable edge pulse generation.

Features

• Generate waveforms up to 30 MHz (4078C) and 50 MHz (4079C)
• 2 channels with dedicated output ON/OFF buttons for each channel
• Up to 250 MSa/s sampling rate
• Waveform length up to 4 Mpts/ch
• 16-bit amplitude resolution
• Linear and logarithmic sweep
• Modulation techniques include: AM, FM, PM, BPSK, and FSK
• Continuous, triggered, burst, and gate modes
• Internal/external triggering and programmable markers
• Variable DC offset ± 5 V
• Low jitter < 25 ps
• 4.3-inch LCD and internal memory to store/recall instrument setups
• USB (USBTMC-compliant) and LAN interfaces standard
• Overload protection of outputs
• cTUVus certification marks fulfills CSA and UL safety standards
