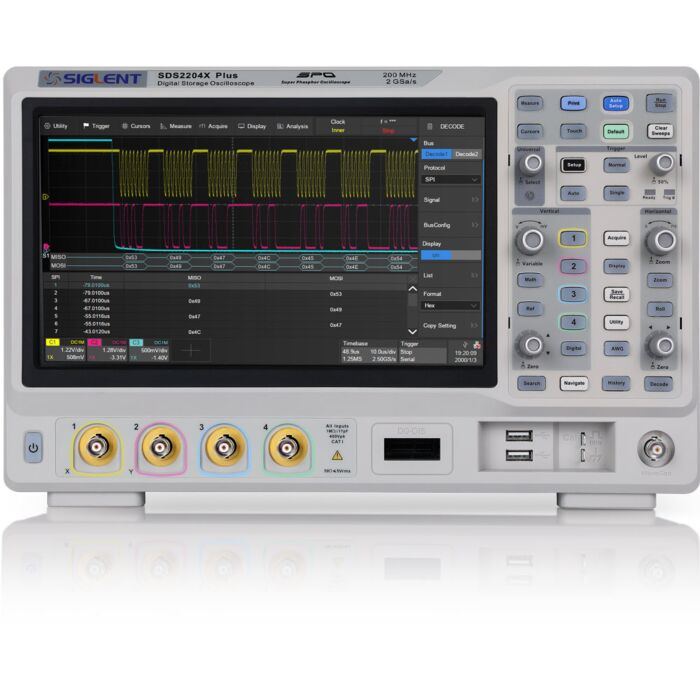

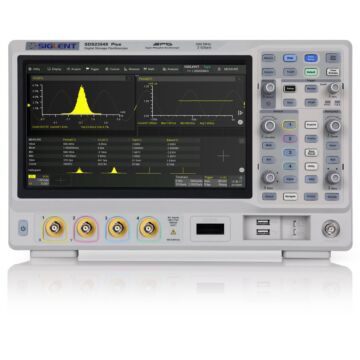

Siglent SDS2204X PLUS

Product Highlights

• 10.1" display with 1024x600 resolution
• Capacitive touch screen, supports multi-touch gestures, traces can be moved or sea led efficiently by a finger touch
• Built-in web server supports remote control over the LAN port using a web browser
• External mouse and keyboard support
• 350 MHz, 200 MHz, 100 MHz models with real-time sample rate up to 2 GSa/s. A 500 MHz bandwidth upgrade option is available for 350 MHz models.
• SPO technology
  • Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color temperature display modes
  • Record length up to 200 M pts/ch, 400 Mpts in totaI for aII 4 channels
  • DigitaI trigger system
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported). Trigger zone helps to simplify advanced triggering
• SeriaI bus triggering and decoder, supports l2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, l2S, and MIL-STD- 1553B (optional) protocols
• Low background noise, features 0.5 mV/div to 10 V/div voltage scales
• 10-bit mode provides higher resolution and lower noise
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
• History waveform record (History) function for up to 90,000 triggered waveforms (frames)
• Automatic measurement function on 50+ para meters, supports statistics with histogram and trend
• Two Math traces, support 2 Mpts FFT, +, -, x, ~, d/dt, f dt, f, average, ERES, and formula editor
• Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter
• 16 digital channels (optional)
• Built-in 50 MHz waveform generator (optional)
• Capacitive touch screen supports multi-touch gestures
• Multiple interfaces: USB Host, USB Device (USBTMC), LAN(VXl-11/Tel net/Socket) , Pass/Fa ii, Trigger Out
• Built-in web server supports remote control by the LAN port using a web browser; Supports SCPI remote control commands

Each Unit Includes

• USB Cable
• Quick Start
• Passive Probe x 2 (2 Ch) x 4 (4 Ch)
• Certificate of Calibration
• Power Cord
