Siglent SDS5054X
500 MHz; 4 ch, 5 GSa/s; 250 M, 500,000 wfm/s, oscilloscope

Order #: SDS5054X

Mfg #: SDS5054X

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,890.00

Siglent SDS5054X

500 MHz; 4 ch, 5 GSa/s; 250 M, 500,000 wfm/s, oscilloscope

Order #: SDS5054X

Mfg #: SDS5054X

New
Loading...
Print Save Item Compare
$5,890.00
Register to view exclusive member pricing
Availability: Ships in 3-4 weeks

 Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.
Tariff fees or manufacture imposed surcharges may be applicable.

Product Highlights

  • 1 GHz, 500 MHz, 350 MHz models with real-time sample rate up to 5 GSa/s
  • SPO technology
    • Waveform capture rates up to 110,000 wfm/s (normal mode), and 480,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Record length up to 250 Mpts
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified and Video (HDTV supported). Trigger zone helps to simplify advanced triggering
  • Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD 1553B
  • Low background noise, supports 0.5 mV/div to 10 V/div voltage scales
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 100,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function, the maximum recorded waveform length is 100,000 frames
  • Automatic measurement function on 39 parameters, supports statistics with histogram, Gating measurement, Math measurement, History measurement and Ref measurement
  • Math function (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root), supports math on math
  • Search and Navigate
  • Digital Voltmeter
  • Waveform Histogram
  • High Speed hardware-based Average, Eres (Enhanced Resolution)
  • High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels (optional) with maximum waveform capture rate up to 1.25 GSa/s, record length up to 62.5 Mpts
  • 25 MHz function / arbitrary waveform generator, built-in multiple predefined waveforms
  • Large 10.1in TFT-LCD display with 1024 x 600 resolution; Capacitive touch screen supports multi-touch gestures Supports external mouse and keyboard
  • 10 types of one-button shortcuts
  • Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11, telnet, socket, web), Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA output
  • Built-in web server supports remote control by the LAN port using a web browser
  • Supports SCPI remote control commands

    • EachUnit Includes

    • USB cable x1
    • Quick start x1
    • Passive probe x2 (2-ch model); x4 (4-ch model), SP2035A for 350 MHz models and SP3050A for 500 MHz / 1 GHz models
    • Certificate of calibration x1
    • Power cord x1

    Recently viewed

    1. Fluke Networks LIQ-KIT-VFL-FBRLRT LinkIQ Kit with Fiber VFL & Live Fiber Detector
      LinkIQ Kit with Fiber VFL & Live Fiber Detector
      As low as $3,498.99
    2. Fluke Networks LIQ-KIT-FQM-100MIC LinkIQ Kit with MM Fiber Fault location, Inspection & Cleaning
      LinkIQ Kit w/ MM Fiber Fault location, Inspection & Cleaning
      As low as $8,035.99

    Related Products

    1. Emerson AMS TREX Communicator
      As low as $5,395.00

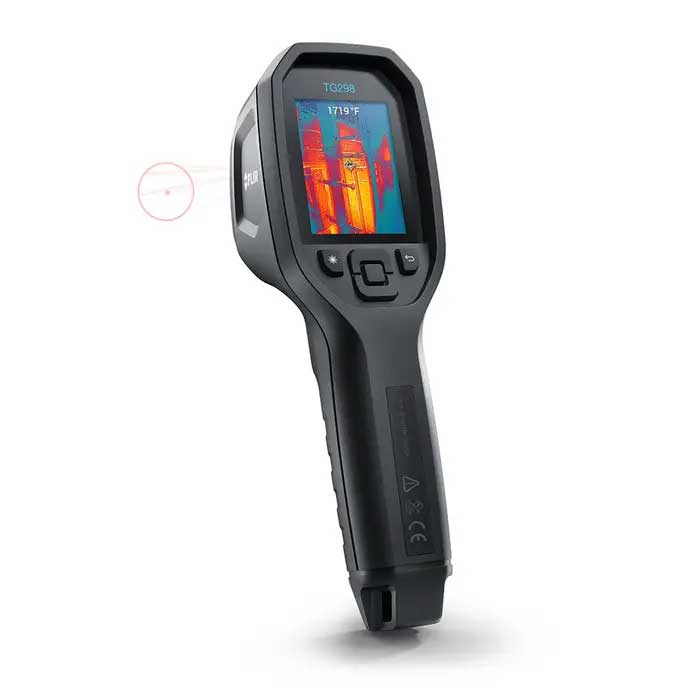

    2. FLIR TG298 High Temp Spot Thermal Camera, 160x120
      High Temp Spot Thermal Camera 160x120
      As low as $899.00
    3. Additel ADT680A Digital Pressure Test Gauge
      Digital Pressure Test Gauge
      As low as $840.00

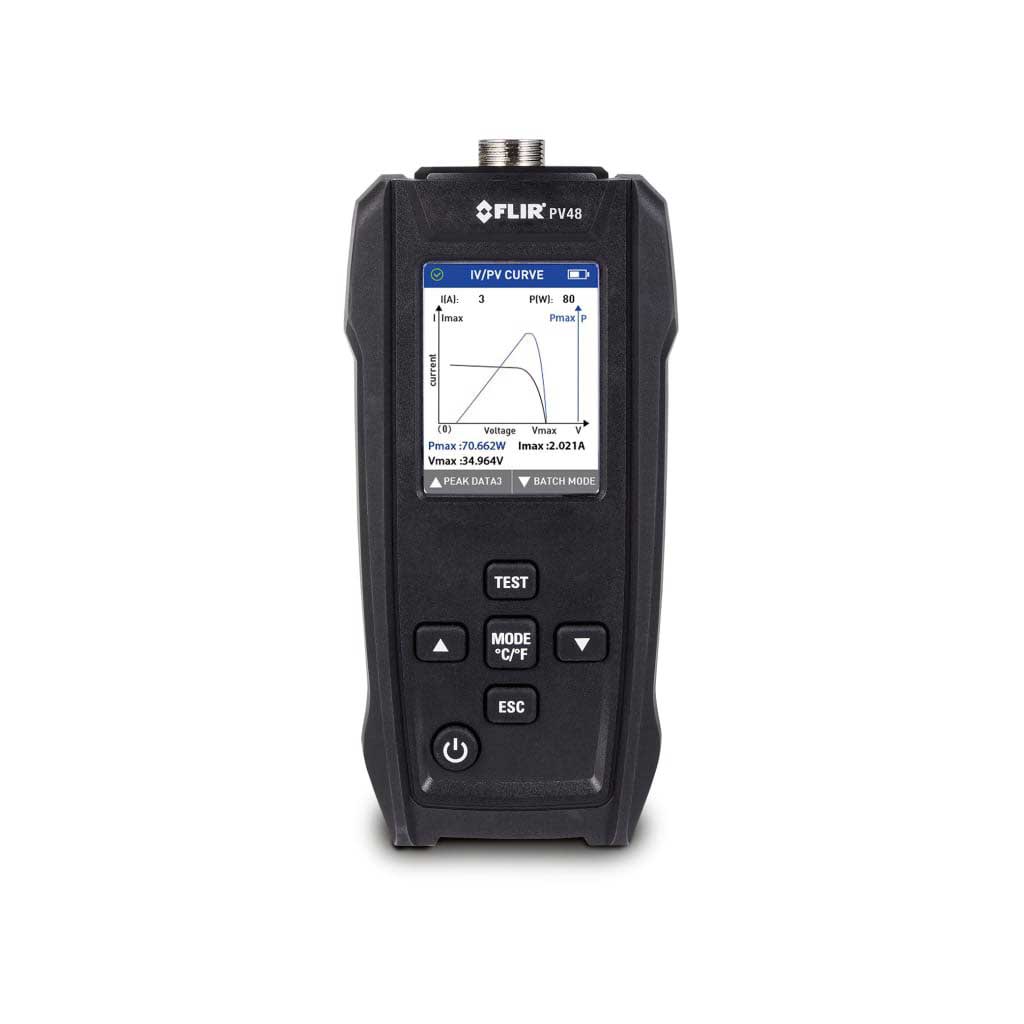

    4. FLIR PV48 Solar Panel I-V Curve Tracer
      Solar Panel I-V Curve Tracer
      As low as $189.99

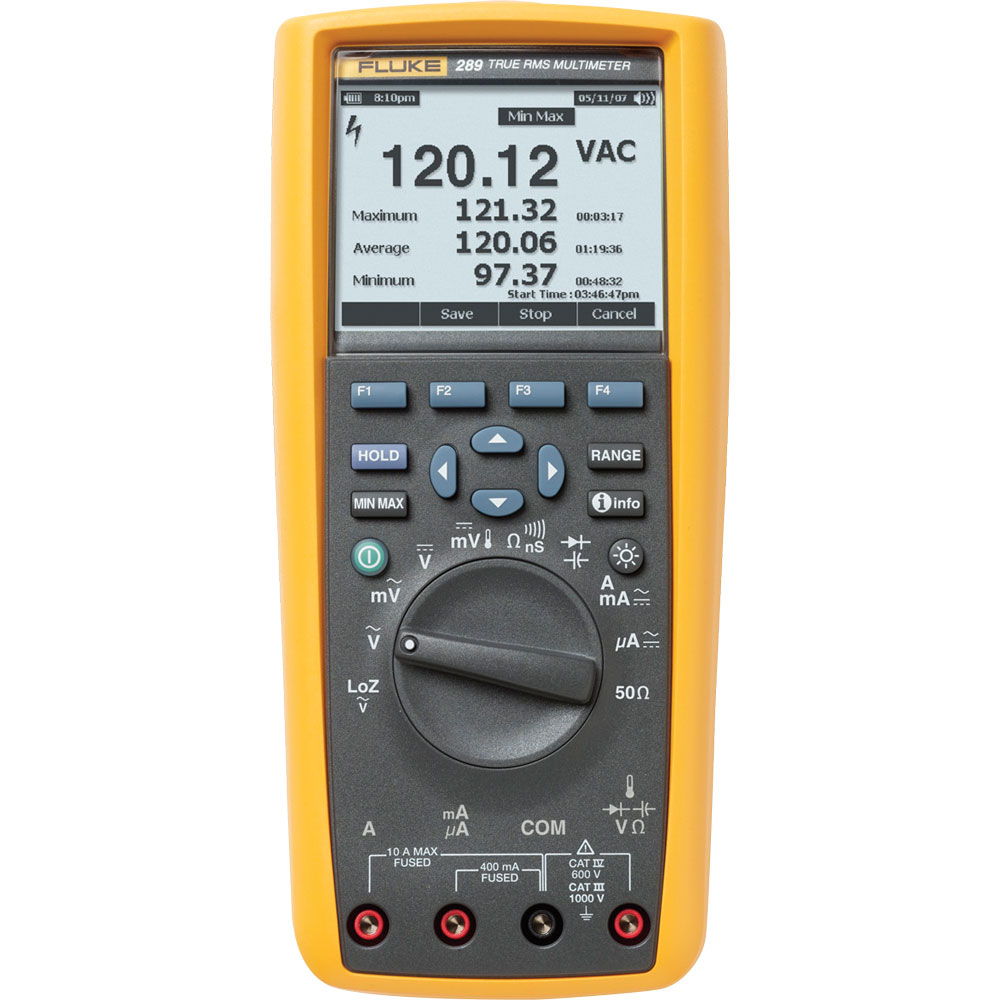

    5. Fluke 289 50,000 Count True-RMS Logging Multimeter with TraceCapture
      50,000 Count True-RMS Logging Multimeter w/TraceCapture
      As low as $755.09
    6. Fluke 754 Documenting Process Calibrator with HART Instrument
      Documenting Process Calibrator with HART Instrument
      As low as $9,361.90

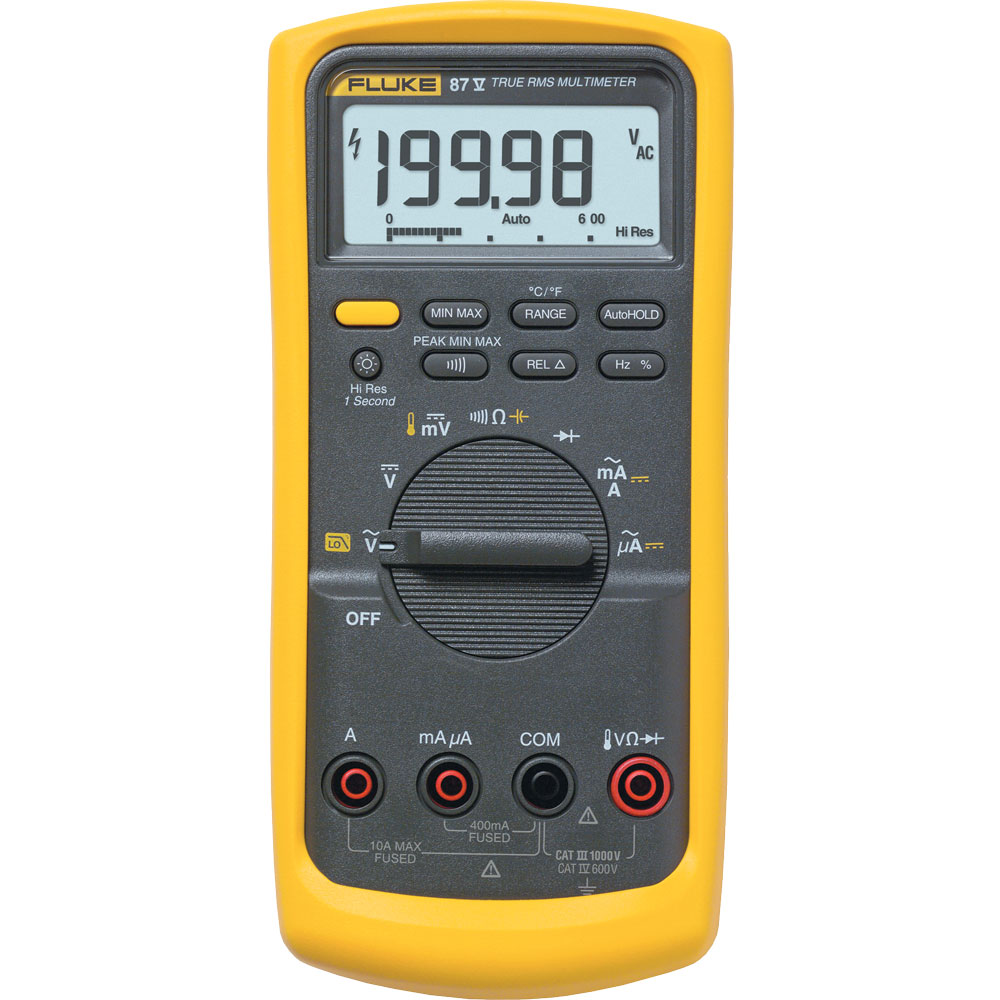

    7. Fluke 87-5 Industrial True RMS Multimeter with Temperature
      Industrial True RMS Multimeter with Temperature
      As low as $444.66
    8. FLIR TG268 Spot Thermal Camera 160x120 with MSX
      Spot Thermal Camera 160x120 with MSX
      As low as $499.00
    9. FLIR PV-KIT-1 Solar Troubleshooting Kit
      Solar Troubleshooting Kit
      As low as $1,099.99

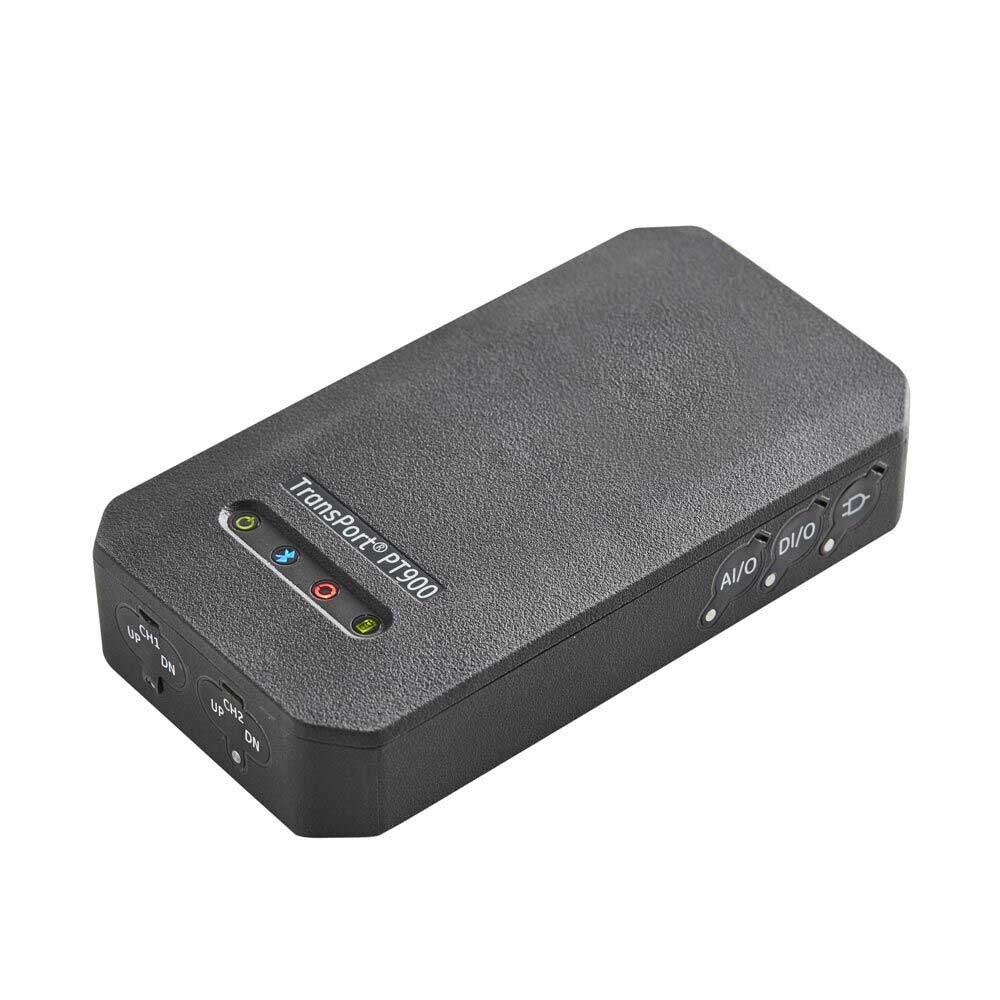

    10. Panametrics PT900 Portable Ultrasonic Flow Meter for Liquids
