AEMC Instruments OX9062 IV 60MHz Hand-Held Oscilloscope

Hand-Held Oscilloscope 60MHz, 2-Channel

Order #: OX9062-IV-60MHZ

Mfg #: 2150.31

New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Special Price $3,306.00 Regular Price $3,480.00

Availability: Ships in 1-2 weeks

Ships Free Over $100

Product Overview

Product Highlights

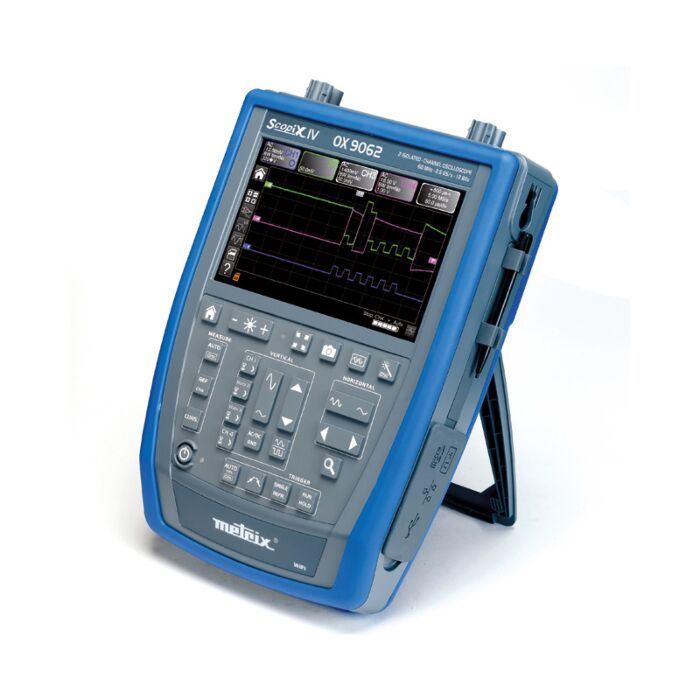

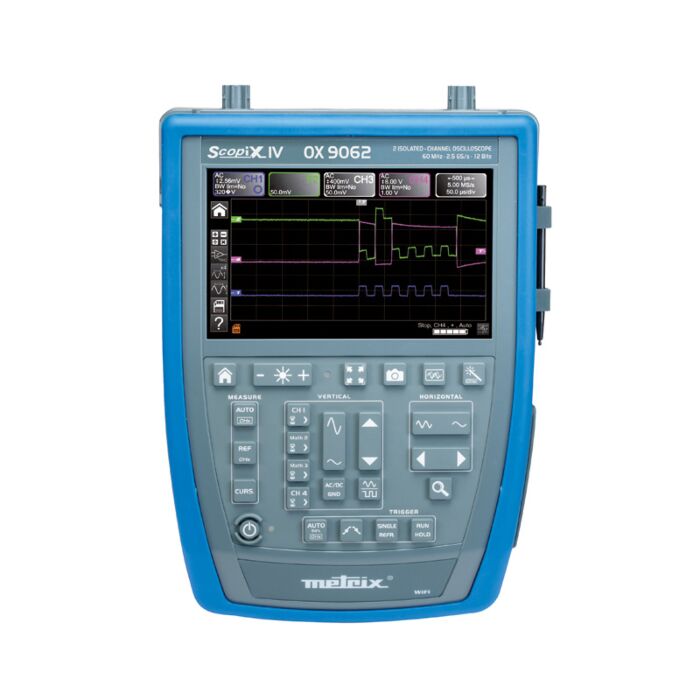

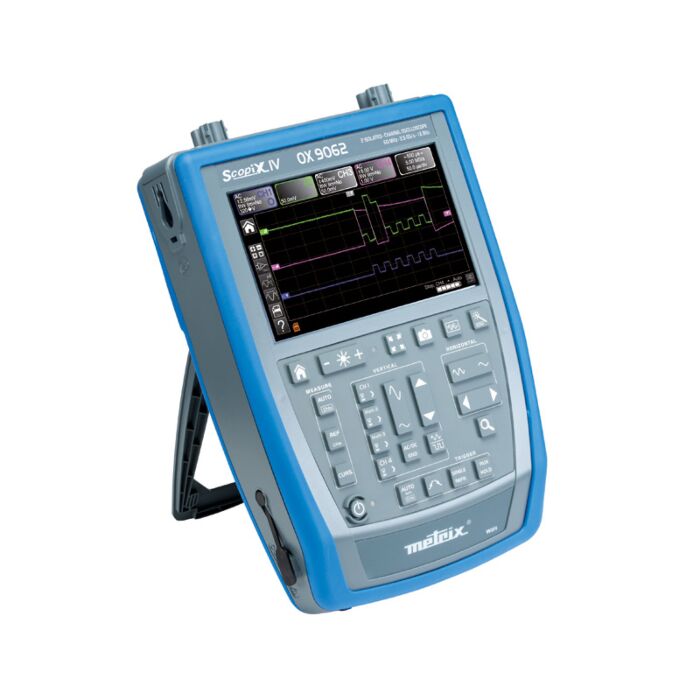

The Model OX 9062 Oscilloscope is a rugged, ergonomic, self-contained, hand-held, two-channel oscilloscope with 60MHz bandwidth, 2 channel DMM 8000 cts, FFT function and recording mode, and power measurement.

Large touch screen 7" color LCD display

Ideal for both laboratory and field use, the Model OX 9062 utilizes the patented system of "plug-and-play" accessories, individual isolation of each of the measurement channels, and a range of remote management capabilities. The Ethernet link and Wi-Fi lets you remotely control the oscilloscope without loading any software to your PC.

Each Unit Includes

Scope in carrying case with shoulder strap
set of two 5 ft color-coded leads
alligator clips and test probes
10 ft USB cable
µSD memory card
1-PROBIX Banana Plug Adapter
set of 5 stylus pens
LI-ION 5.8 Ah battery pack
PA40W-2 power adapter with 110V power cord

Specifications

CHANNELS
Inputs / Bandwidth	2 Isolated channels
Input Impedance	1MΩ ± 0.5%, approx. 12pF
INTERFACE
Screen Specifications	Color 7" WVGA TFT LCD touch screen, 800 x 480
Display Mode	Vectors with interpolation - 2500 real acquisition points on screen
Traces On Screen	2 Traces + 2 References (split screen and full screen modes)
Front Panel Control	32 keys
Screen Control	Touch screen - ANDROID type icons and graphical commands
VERTICAL
Vertical Sensitivity	16 ranges from 2.5mV - 200V/div and up to 156µV/div om vertical zoom mode (12-bit converter) - Accuracy ±2%
Max Input Voltage	600V/CAT III (1000V per Probix) - from 50 to 400 Hz - Probix connectors
Vertical Zoom	"One click Winzoom" system (direct graphical zoom onscreen) x 16 max
HORIZONTAL
Time Base Speed	35 ranges from 1ns/div. - accuracy ±[50 ppm + 500 ps] - Roll mode from 100 ms to 200 s/div
Horizontal Zoom	"One click Winzoom" system (direct graphical zoom onscreen) x 100 max
TRIGGER
Mode	Auto, Triggered, One-shot, Auto-level 50% on all channels
Type	Edge, Pulse width (16ns - 20s), delay (48ns - 20s), counting (3 to 16,384 events) Continuous adjustment of Trigger position
Coupling	AC, DC GND, HFR, LFR, noise - Level and Hold-Off adjustable from 64ns to 15s
Autoset	Complete <5s with recognition of channels - Frequency >30Hz
Cursors	Two or three cursors: V and T with auto measurement: T1, T2, Dt, 1/Dt, dBV, Ph
DIGITAL MEMORY
Max. Sampling Rate	2.5GS/s in one-shot mode on each channel (100GS/s max. in ETS mode) 12 bits resolution
Memory Depth	100kpts per channel and file viewer in the manager
Memory Capacity	Internal = 1GB to store the files: trace, text, configuration, math functions, System memory: .pdf print files, .png image files + high-capacity removable microSD-Card: SD 2GB, SDHC 4-32GB and SDXC >32GB
GLITCH Mode	Duration ≥ 2ns - 500,000 Min/Max pairs
Display Modes	Envelope, vector, accumulation -, averaging (factors 2 to 64) - XY (vector) and Y(f)=FFT
OTHER FUNCTIONS
FFT Analyzer & Math Functions	FFT (Lin or Log) with measurement cursors - Functions, +, - x, / and mathematical function editor
Automatic Measurement	Simultaneously with waveform, 20 automatic measurements per channel and on the 4 channels simultaneously with scroll
Multimeter Mode	2 channels, 8000 counts + Min/Max/Frequency/relative - TRMS - Time stamp graphic recording in logger mode
AC, DC, AC+DC Voltages	600mV to 600VRMS, 800mV to 800VDC: accuracy 0.5% Bandwidth 200kHz
Power and PF	Active, Reactive, and Apparent power values plus Power Factor simultaneously with the U & I measurements
Resistance, Temperature, Capacitance, Frequency, and Diode Test on channel 1 only
Acquisition	Duration: 20,000s - Interval: 0.2s - Files: 100,000 measurements
Harmonic Analyzer Mode
Multi-Channel Analysis	2, 61 orders, fundamental from 40 to 450Hz in auto or manual mode
Simultaneous measurement	Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms)
GENERAL FEATURES
Interface	Isolated USB, WiFi, and Ethernet, SD micro card for direct transfer to PC. Web server/client with cursor and automatic measurements
Batteries	Rechargeable Li-Ion 6,900mAh 40W battery pack, External charger
Charging Time	98 to 264VAC (50/60Hz) 2 hours when OFF
Battery life	Approx. 8 hours
Dimensions (L x W x H)	11.5 x 8.29 x 2.6" (292.5 x 210.6 x 66.2mm)
Weight	4.7 lbs. (2.1kg)
Altitude Operating	2000m (6560ft)
Operating Temperature	32° to 104°F (0 to 40°C) ≤80% RH
Storage Temperature	-4° to 140°F (-20 to 60°C)
IP Rating	IP54 per IEC 60529
Safety	IEC/EN 61010-2-30 (1000V CAT II; 600V CAT III), IEC 1326-1
