AEMC Instruments OX9102 IV 100MHz Handheld Oscilloscope
Hand-Held Oscilloscope 100MHz, 2-Channel
Order #: OX9102-IV-100MHZ
Mfg #: 2150.32
Special Price
$3,895.00
Regular Price
$4,100.00
AEMC Instruments OX9102 IV 100MHz Handheld Oscilloscope
Hand-Held Oscilloscope 100MHz, 2-Channel
Order #: OX9102-IV-100MHZ
Mfg #: 2150.32
Special Price
$3,895.00
Regular Price
$4,100.00
Availability: Ships in 1-2 weeks
Product Highlights

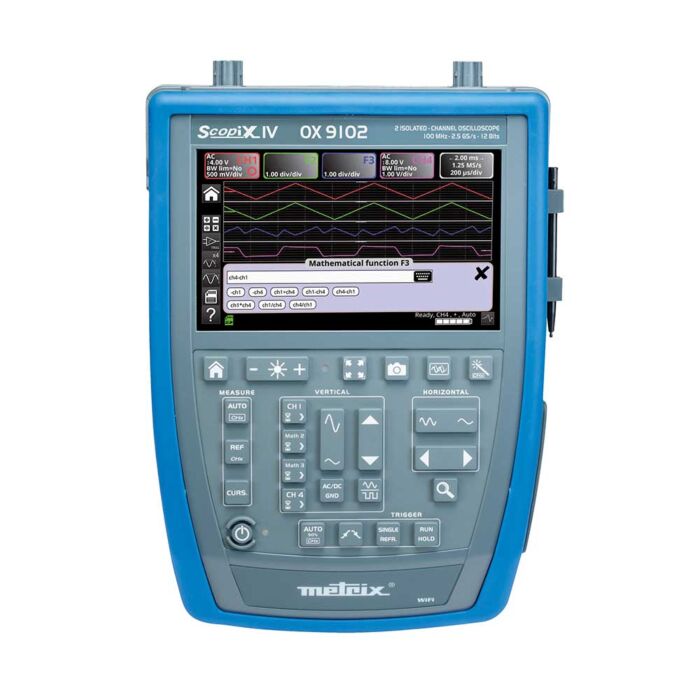

The Model OX 9102 Oscilloscope is a rugged, ergonomic, self-contained, hand-held, two-channel oscilloscope with 100MHz bandwidth, 2 channel DMM 8000 cts, FFT function and recording mode, and power measurement.
Large touch screen 7" color LCD display
Ideal for both laboratory and field use, the Model OX 9102 utilizes the patented system of "plug-and-play" accessories, individual isolation of each of the measurement channels, and a range of remote management capabilities. The Ethernet link and Wi-Fi lets you remotely control the oscilloscope without loading any software to your PC.
Each Unit Includes
- Scope in carrying case with shoulder strap
- set of two 5 ft color-coded leads
- alligator clips and test probes
- 10 ft USB cable
- µSD memory card
- 1-PROBIX Banana Plug Adapter
- set of 5 stylus pens
- LI-ION 5.8 Ah battery pack
- PA40W-2 power adapter with 110V power cord
| CHANNELS | |
| Inputs / Bandwidth | 2 Isolated channels |
| Input Impedance | 1MΩ ± 0.5%, approx. 12pF |
| INTERFACE | |
| Screen Specifications | Color 7" WVGA TFT LCD touch screen, 800 x 480 |
| Display Mode | Vectors with interpolation - 2500 real acquisition points on screen |
| Traces On Screen | 2 Traces + 2 References (split screen and full screen modes) |
| Front Panel Control | 32 keys |
| Screen Control | Touch screen - ANDROID type icons and graphical commands |
| VERTICAL | |
| Vertical Sensitivity | 16 ranges from 2.5mV - 200V/div and up to 156µV/div om vertical zoom mode (12-bit converter) - Accuracy ±2% |
| Max Input Voltage | 600V/CAT III (1000V per Probix) - from 50 to 400 Hz - Probix connectors |
| Vertical Zoom | "One click Winzoom" system (direct graphical zoom onscreen) x 16 max |
| HORIZONTAL | |
| Time Base Speed | 35 ranges from 1ns/div. - accuracy ±[50 ppm + 500 ps] - Roll mode from 100 ms to 200 s/div |
| Horizontal Zoom | "One click Winzoom" system (direct graphical zoom onscreen) x 100 max |
| TRIGGER | |
| Mode | Auto, Triggered, One-shot, Auto-level 50% on all channels |
| Type | Edge, Pulse width (16ns - 20s), delay (48ns - 20s), counting (3 to 16,384 events) Continuous adjustment of Trigger position |
| Coupling | AC, DC GND, HFR, LFR, noise - Level and Hold-Off adjustable from 64ns to 15s |
| Autoset | Complete <5s with recognition of channels - Frequency >30Hz |
| Cursors | Two or three cursors: V and T with auto measurement: T1, T2, Dt, 1/Dt, dBV, Ph |
| DIGITAL MEMORY | |
| Max. Sampling Rate | 2.5GS/s in one-shot mode on each channel (100GS/s max. in ETS mode) 12 bits resolution |
| Memory Depth | 100kpts per channel and file viewer in the manager |
| Memory Capacity | Internal = 1GB to store the files: trace, text, configuration, math functions, System memory: .pdf print files, .png image files + high-capacity removable microSD-Card: SD 2GB, SDHC 4-32GB and SDXC >32GB |
| GLITCH Mode | Duration ≥ 2ns - 500,000 Min/Max pairs |
| Display Modes | Envelope, vector, accumulation -, averaging (factors 2 to 64) - XY (vector) and Y(f)=FFT |
| OTHER FUNCTIONS | |
| FFT Analyzer & Math Functions | FFT (Lin or Log) with measurement cursors - Functions, +, - x, / and mathematical function editor |
| Automatic Measurement | Simultaneously with waveform, 20 automatic measurements per channel and on the 4 channels simultaneously with scroll |
| Multimeter Mode | 2 channels, 8000 counts + Min/Max/Frequency/relative - TRMS - Time stamp graphic recording in logger mode |
| AC, DC, AC+DC Voltages | 600mV to 600VRMS, 800mV to 800VDC: accuracy 0.5% Bandwidth 200kHz |
| Power and PF | Active, Reactive, and Apparent power values plus Power Factor simultaneously with the U & I measurements |
| Resistance, Temperature, Capacitance, Frequency, and Diode Test on channel 1 only | |
| Acquisition | Duration: 20,000s - Interval: 0.2s - Files: 100,000 measurements |
| Harmonic Analyzer Mode | |
| Multi-Channel Analysis | 2, 61 orders, fundamental from 40 to 450Hz in auto or manual mode |
| Simultaneous measurement | Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms) |
| GENERAL FEATURES | |
| Interface | Isolated USB, WiFi, and Ethernet, SD micro card for direct transfer to PC. Web server/client with cursor and automatic measurements |
| Batteries | Rechargeable Li-Ion 6,900mAh 40W battery pack, External charger |
| Charging Time | 98 to 264VAC (50/60Hz) 2 hours when OFF |
| Battery life | Approx. 8 hours |
| Dimensions (L x W x H) | 11.5 x 8.29 x 2.6" (292.5 x 210.6 x 66.2mm) |
| Weight | 4.7 lbs. (2.1kg) |
| Altitude Operating | 2000m (6560ft) |
| Operating Temperature | 32° to 104°F (0 to 40°C) ≤80% RH |
| Storage Temperature | -4° to 140°F (-20 to 60°C) |
| IP Rating | IP54 per IEC 60529 |
| Safety | IEC/EN 61010-2-30 (1000V CAT II; 600V CAT III), IEC 1326-1 |
