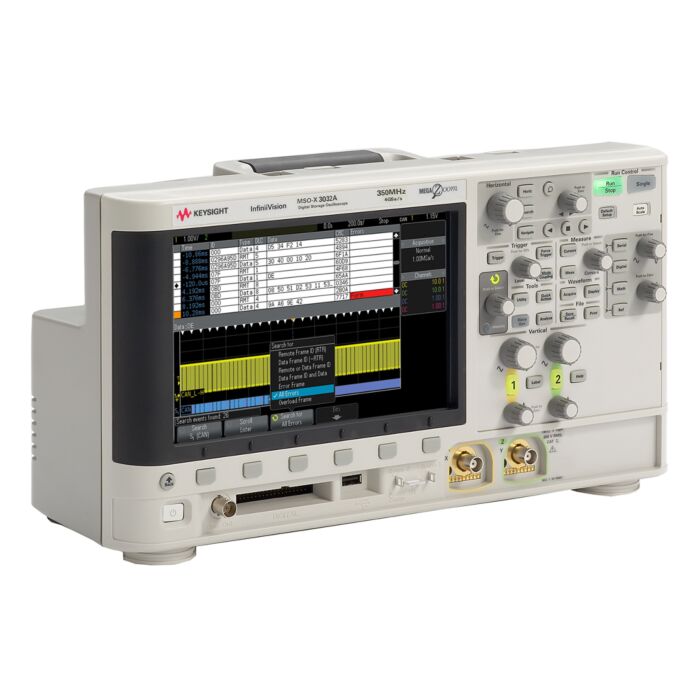

Keysight MSOX3032A Oscilloscope, MixedSignal, 350MHz 2+16-Channel

Product Highlights

• High resolution 8.5-inch display
• Up to 1,000,000 wfms/s update rate
• Fast, responsive MegaZoom IV deep memory, up to 4 M
• Best-in-class oscilloscope
• Integrated 16 digital channel mixed signal oscilloscope (MSO)
• Serial protocol analyzer (optional)
• Industry-exclusive WaveGen built-in function generator (optional)
• Upgradable bandwidth
• Upgradable MSO
• Upgradable WaveGen built-in function generator
• Upgradable measurement applications
• Bandwidth 100 MHz, 200 MHz, 350 MHz, 500 MHz
• Channels 2 or 4 analog channels (DSO) +16 digital channels (MSO)
• Sample rate Up to 4 GSa/s
• Memory Up to 4 M
• Display 8.5-inch WVGA (800 x 480)
• Update rate 1,000,000 wfms/s
• Upgradable Bandwidth, MSO, measurement applications and WaveGen
• Warranty Standard 3-year
• Connectivity USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
• Includes BV0004B Oscilloscope app
