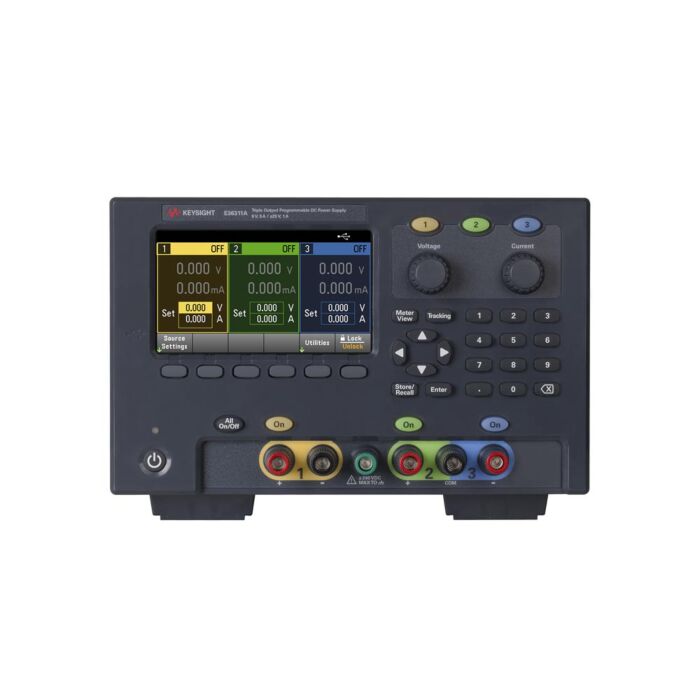

Keysight E36311A DC Power Supply, triple-output, 6V, 5A & +/-25V, 80W: USB
DC Power Supply, triple-output, 6V, 5A & +/-25V, 80W: USB

Order #: E36311A

Mfg #: E36311A

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,551.00

Keysight E36311A DC Power Supply, triple-output, 6V, 5A & +/-25V, 80W: USB

DC Power Supply, triple-output, 6V, 5A & +/-25V, 80W: USB

Order #: E36311A

Mfg #: E36311A

$1,551.00
Availability:
In stock

Choose Your Options:

This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item is available as RENTAL at
Call for price
Shop now

Product Highlights

Output Rating: 80 W

  • Output 1: 0 to 6 V, 0 to 5 A
  • Output 2: 0 to +25 V, 0 to 1 A
  • Output 3: 0 to -25 V, 0 to 1 A

Programming Accuracy ±(% of output + offset)

  • Voltage: 0.1% + 5 mV, 0.05% + 20 mV, 0.05% + 20 mV
  • Current: 0.1% + 10 mA, 0.1% + 4 mA, 0.1% + 4 mA

Ripple and Noise (20 Hz to 20 MHz)

  • Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p
  • Normal-mode current: <2 mA rms, <500 µA rms, <500 µA rms

Readback Accuracy ±(% of output + offset)

  • Voltage: 0.1% + 5 mV, 0.05% + 10 mV, 0.05% + 10 mV
  • Current: 0.1% + 10 mA, 0.1% + 4 mA, 0.1% + 4 mA

The 80-Watt E36311A is a clean, reliable bench power supply for general purpose applications. It provides three outputs in a compact, intuitive package. The E36311A is the most basic of the three models in this product family. More advanced capabilities such as data logging, output sequencing, list mode, and auto parallel/serial explore the E36312A (80 W) and the E36313A (160 W) models.

Each Unit Includes

  • AC power cord
