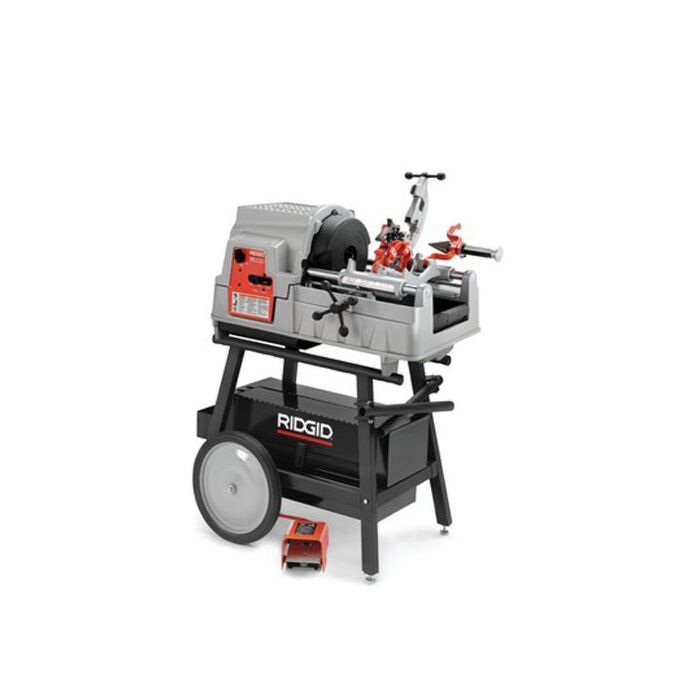

Ridgid Tools 535A

Product Highlights

• 1/2" - 2" NPT Automatic Chuck Machine
• Automatic chuck.
• Large 6.6 l (1.75 gallon) oil reservoir.
• Large chip tray.
• Generous top cover area for keeping tools and fittings handy.
• High clearance carriage.
• Can be used with geared threader Model 141.
• Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads.
• Length gauge for quick, accurate cut-off.
• Pipe Capacity 1/8"-2" (3 mm-50 mm) 2 1/2"-4" (62 mm-100 mm) with 141 geared threader.
• Bolt Capacity 1/4"-2” (8 mm-50 mm).
• Switches Forward/off/reverse and integral safety foot switch.
• Chuck Automatic with four reversible forged jaws.
• Rear Centering Device Automatic, centering only.

Each Unit Includes

• 11931 - Thread Cutting Oil
• 44185 - Wheel, Cutter E1032
• 97065 - 811A 1/8” - 2” NPT Die Head, Self-Opening, RH
• 47765 - 1/2" - 3/4" Pipe Dies for use in Universal Die Heads (Nos. 504A, 711, 713, 811A, 815A, 816, 817 and 842)
• 47770 - 1" - 2" Pipe Dies for use in Universal Die Heads (Nos. 504A, 711, 713, 811A, 815A, 816, 817 and 842)
• 42365 - 341 Reamer Assy
• 42390 - 820 Cutter Assy
• 46030 - 3/16" Hex Key
• 46015 - Key, Hex 5/32
• One Gallon Extreme Performance Threading Oil
• Diehead, 811A QO L/Die
