Gedore Tools 1.07/3-E

Product Highlights

• Clamping spread -max- external pulling (a, a1): 250 mm
• Clamping spread -min- internal pulling (a2): 100 mm
• Clamping spread -max- internal pulling (a2): 400 mm
• Clamping reach: 200 mm
• Spindle size (Thread x Length): G 3/4 x 280
• Hydraulic spindle: 1.06/HSP2
• Width Across Flat / Actuating Hexagon: 27 mm
• Width of hooked foot (c): 36 mm
• Depth of hooked foot (d): 28 mm
• Thickness of hooked foot at tip (e): 6.5 mm
• Loading max. t: 7.5 t
• Weight: 9.2kg

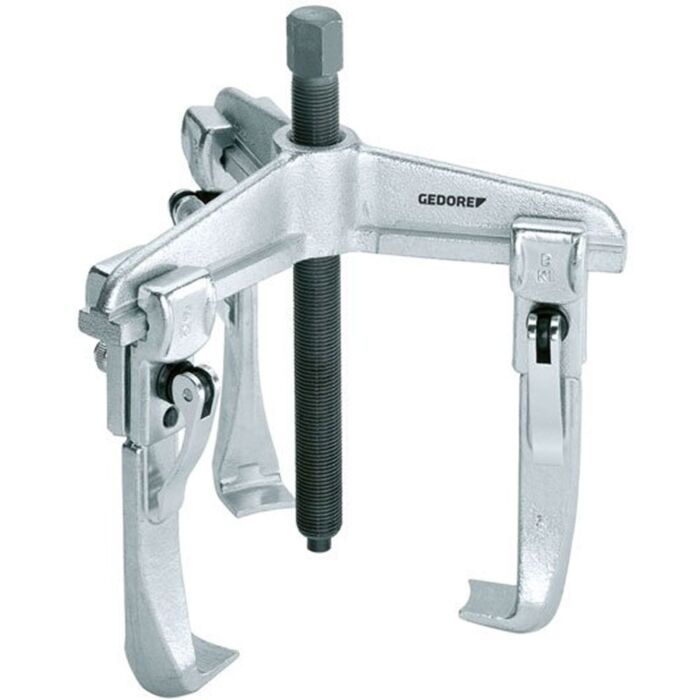

• Gedore 1.07/3-E Quick-release puller, 3-arm pattern 250x200 mm
• Quick release legs for fast, easy set-up and adjustment
• By reversing the legs, this tool can be used as an internal or external puller
