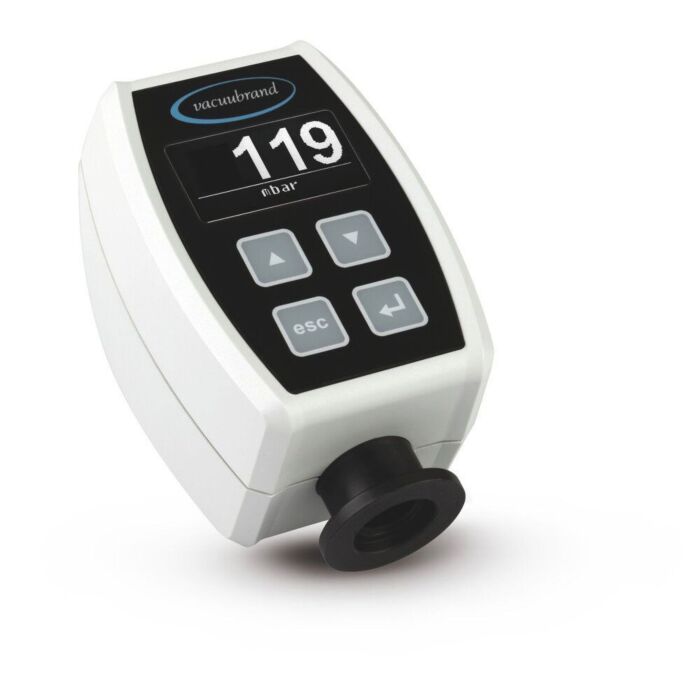

BrandTech Scientific VACUU-VIEW
Vacuum gauge, 1100 - 0.1 mbar, 100-230 V/50-60 Hz
Order #: 20683220
Mfg #: 20683220
Special Price
$1,534.50
Regular Price
$1,705.00
BrandTech Scientific VACUU-VIEW
Vacuum gauge, 1100 - 0.1 mbar, 100-230 V/50-60 Hz
Order #: 20683220
Mfg #: 20683220
Special Price
$1,534.50
Regular Price
$1,705.00
Availability: Ships in 3-4 weeks
Product Highlights
For the monitoring of your vacuum processes in the rough vacuum range, the new vacuum gauges VACUUVIEW are perfect! Chemically resistant ceramic diaphragm sensor for measurement in the rough vacuum range. VACUUVIEW provides gas-independent pressure indication with precise capacitive readout.
- Highest precision in the range from atmosphere down to 0.1 mbar, perfect gauge for all rough vacuum applications
- Compact design with integrated sensor for useful setup in laboratory and process
- Chemically resistant ceramic diaphragm sensor, highly reliable in harsh laboratory conditions even with aggressive chemicals
- Illuminated display, easy to read
- Display with menu-driven handling, easy to use e.g., for unit settings
Technical data and graphs
| Upper Measuring Limit in mbar/hPa | 1100 mbar |
| Upper Measuring Limit in Torr | 825 torr |
| Lower Measuring Limit in mbar/hPa | 0.1 mbar |
| Lower Measuring Limit in Torr | 0.075 torr |
| Measurement Principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure |
| Accuracy of Measurement | < ± 1 mbar/hPa/torr / ± 1 digit (after adjustment, constant temp.) mbar/hPa/torr |
| ATEX Conformity | II 3/- G Ex h IIC T4 Gc X Internal Atm. only |
| Temperature Coefficient | < 0.07 mbar/hPa/0.05 torr /K mbar/hPa/torr /K |
| Vacuum Connection | Small flange KF DN 16 and hose nozzle DN 6/10 mm |
| Lower Ambient Temperature (Storage) | -10 °C |
| Upper Ambient Temperature (Storage) | 60 °C |
| Lower Ambient Temperature (Operation) | 10 °C |
| Upper Ambient Temperature (Operation) | 40 °C |
| Max. Media Temperature for Continuous Operation | 40 °C |
| Max. Media Temperature Short Term | 80 °C |
| Material of Outer Housing | Robust plastic housing with good chemical resistance |
| Venting Valve | No |
| Protection Class IEC 60529 | IP 54 |
| Protection Class UL50E | Type 5 |
| Protection Class Front Side IEC 60529 | IP 54 |
| Weight | 0.19 kg |
| Dimension L in mm | 50 mm |
| Dimension B in mm | 62 mm |
| Dimension H in mm | 103 mm |
| Vacuum Sensor | Integr. |
| Cable Length Connection in m | 2 m |
| NRTL Certification | Yes |
| Items Supplied | Vacuum gauge with integrated vacuum sensor, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual. |
Each Unit includes
- Vacuum gauge complete with integrated vacuum sensor
- kit hose nozzle DN 6/10 mm
- wall-plug power supply
- manual
