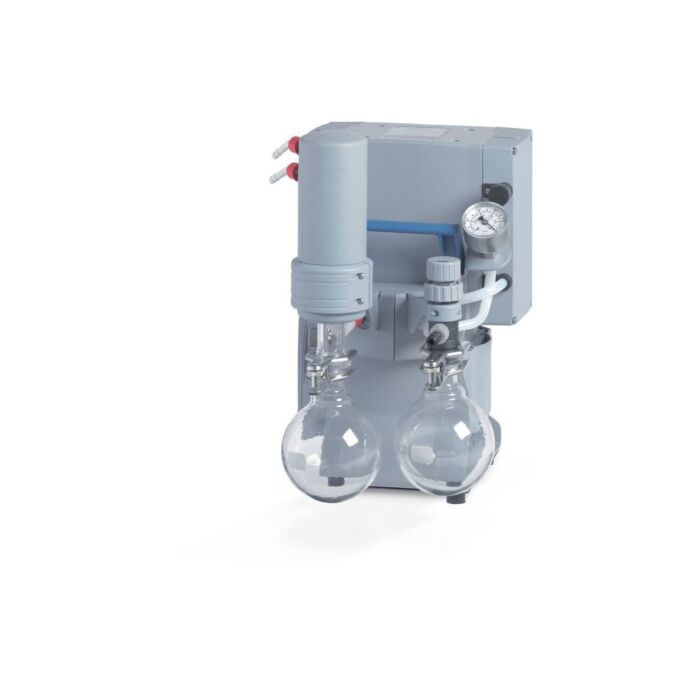

BrandTech Scientific PC 201 NT
Chemistry pumping unit, 100-120V/50-60Hz, NRTL
Order #: 20737003
Mfg #: 20737003
Special Price
$8,433.00
Regular Price
$9,370.00
Availability: Ships in 3-4 weeks
Product Highlights
This chemistry pumping unit has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. Typical applications are rotary evaporators, vacuum concentrators and vacuum drying ovens with high boiling solvents. The manual flow control valve regulates the effective pumping speed at the vacuum connection; the vacuum manometer offers an analog vacuum display. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The exhaust waste vapor condenser enables near-100-percent solvent recovery.
- Outstanding chemical resistance and superior vapor tolerance
- Exceptionally high performance even at low vacuum
- Excellent ultimate vacuum even with gas ballast
- Manual vacuum control, analog vacuum display
- Excellent environmental friendliness due to efficient solvent recovery
Technical data and graphs
| Max. pumping speed 50 Hz | 3.4 m3/h |
|---|---|
| Max. pumping speed 60 Hz | 2.2 cfm |
| Ultimate vacuum | 1.5 mbar / 1.1 torr |
| Ultimate vacuum with gas ballast | 3 mbar / 2.2 torr |
| Number of heads | 4 |
| Number of stages | 3 |
| Vacuum controller | Manometer |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 8-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Coolant connection | 2 x hose nozzle DN 6-8 mm |
| Rated motor power | 0.25 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |
| Dimension L in mm | 326 mm |
| Dimension B in mm | 243 mm |
| Dimension H in mm | 402 mm |
| Weight | 17.5 kg |
| Noise (sound pressure level) in dBA | 45 dBA |
| NRTL certification | Yes |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
| Rated mains voltage range 1 | 100-115 V |
| Rated mains voltage range 2 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Mains frequency 2 | 60 Hz |
