Siglent SDS7000A-CT-100BASE-T
Order #: SDS7000A-CT-100BASE-T
Mfg #: SDS7000A-CT-100BASE-T
![Loading...](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
- 100Base-TX compliance testing option
- Compatible with SDS7000A oscilloscopes
- FX-ETH test fixture sold separately
Features
100Base-TX Compliance Testing Option for SDS7000A Oscilloscopes

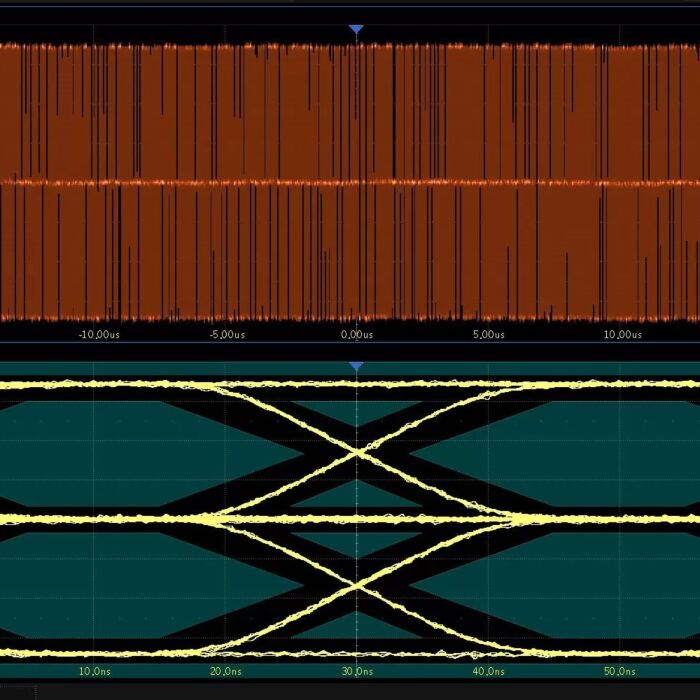

The Siglent SDS7000A-CT-100BASE-T is the 100Base-TX compliance testing option for SDS7000A oscilloscopes. It tests the following items: AOI Template, Peak Voltage (POS, NEG, Signal Amplitude Symmetry), Overshoot (POS, NEG), Rise/Fall Times (POS Rise Time, Pos Fall Time, POS Rise/Fall Symmetry, NEG Rise Time, NEG Fall Time, NEG Rise/Fall Symmetry, Overall Rise/Fall Symmetry), Duty Cycle Distortion, Peak to Peak Transmit Jitter, Return Loss (Transmitter Return Loss, Receiver Return Loss)
Several versions available
Siglent offers several compliance testing software options for use with its SDS7000A oscilloscope series. The chart below outlines each protocol and the corresponding part numbers for software and test fixtures.
Protocol | Software Part Number | Test Fixture |
---|---|---|
USB 2.0 | SDS7000A-CT-USB2 | FX-USB2 |
100Base-TX | SDS7000A-CT-100BASE-T | FX-ETH |
1000Base-T | SDS7000A-CT-1000BASE-T | FX-ETH |
100Base-T1 | SDS7000A-CT-100BASE-T1 | FX-AMETH |
1000Base-T1 | SDS7000A-CT-1000BASE-T1 | FX-AMETH |
When the user sets up the environment according to the prompts, by using the related test fixture, the oscilloscope and related instruments can be automatically set up and related measurement, calculation, decoding, and other functions will be used for testing, helping the user to complete each test project quickly and efficiently, and reports are generated automatically.
