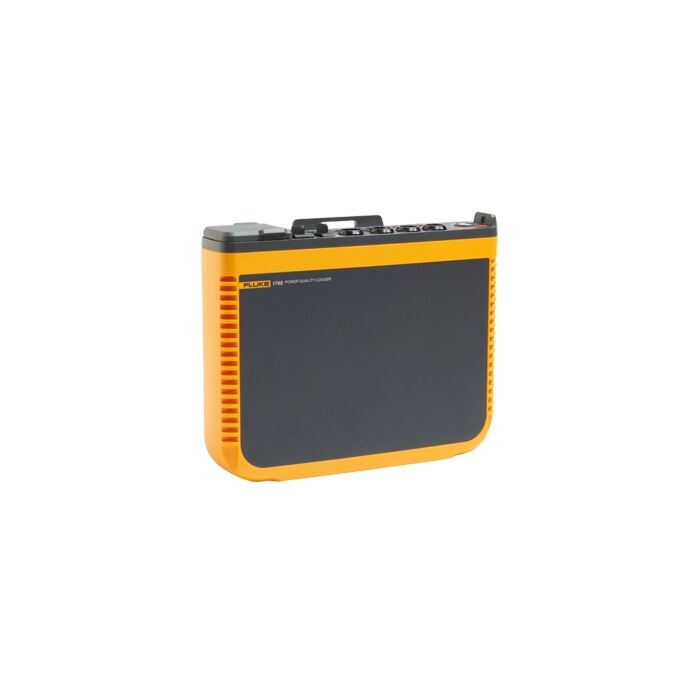

| Power Supply |
| Voltage range |
100 V to 500 V using safety plug input when powering from the measurement circuit |
| 100 V to 240 V MA-C8 and using standard power cord (IEC 60320 C7) |
| Power consumption |
Maximum 50 VA (max. 15 VA when powered using MA-C8 adapter) |
| Efficiency |
≥ 68.2% (in accordance with energy efficiency regulations) |
| Maximum no-load consumption |
< 0.3 W only when powered using IEC 60320 input |
| Mains power frequency |
50/60 Hz ±15% |
| Battery |
Li-ion 3.7 V, 9.25 Wh, customer-replaceable |
| On-battery runtime |
Typically 4 hours |
| Charging time |
< 6 hours |
| Data Acquisition |
| Resolution |
16-bit synchronous sampling |
| Sampling frequency |
10.24 kHz at 50/60 Hz, synchronized to mains frequency |
| Input signal frequency |
50/60 Hz (42.5 to 69 Hz) |
| Circuit types |
1-Φ, 1-Φ IT, split phase, 3-Φ delta, 3-Φ wye, 3-Φ wye IT, 3-Φ wye balanced, 3-Φ Aron/Blondel (2-element delta), 3-Φ delta open leg, currents only (load studies) |
| Data storage |
Internal flash memory (not user replaceable) |
| Memory size |
Typical 20 logging sessions of 4 weeks with 1-minute intervals and 500 events |
| Basic Interval |
| Measured parameters |
Voltage, current, aux, frequency, THD V, THD A, power, power factor, fundamental power, DPF, energy |
| Averaging interval |
User selectable: 1 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min |
| Averaging time min/max values |
Voltage, Current: Full cycle RMS updated every half cycle (URMS1/2 according to IEC61000-4-30 Aux, Power: 200ms) |
| Demand Interval (Energy Meter Mode) |
| Measured parameters |
Energy (Wh, varh, VAh), PF, maximum demand, cost of energy |
| Interval |
User selectable: 5 min, 10 min, 15 min, 20 min, 30 min, off |
| Power Quality Measurements |
| Measured parameter |
Voltage, frequency, unbalance, voltage harmonics, THD V, current, harmonics, THD A, TDD, voltage interharmonics, TID V, current interharmonics, TID A, Flicker, Mains Signaling, under/over deviation |
| Averaging interval |
10 min for all parameters
2 hrs (long term Flicker PLT)
150/180 cycles (3 s) for harmonics (requires software license IEEE519/REPORT) |
| Individual harmonics |
2nd to 50th harmonic
Grouping according to IEC 61000-4-7 user configurable depending on application: Sub-grouped (harmonics + interharmonics), grouped or harmonic bins only |
| Interharmonics |
1st to the 50th interharmonic |
| Total harmonic distortion |
Calculated on 50 voltage harmonics |
| Events |
Voltage: dips, swells, interruptions, current: inrush current
1748: mains signaling, transients (low frequency) |
| Triggered recordings |
RMS profile: Full cycle RMS updated every half cycle of voltage and current up to 11 s (URMS1/2 according to IEC 61000-4-30) |
| Waveform of voltage and current up to 200 ms, 10/12 cycles |
| Mains signaling: 10/12 cycle RMS recording of the configured frequencies up to 120s |
| Inrush |
RMS profile based on 1/2 cycle RMS steady state triggering |
| Flicker |
In accordance with IEC 61000-4-15 and IEEE 1453 |
| Mains signaling |
Two user defined frequencies up to 3 kHz |
| PQ Health |
Summarizes power quality measurements in one table. Detailed data available for each parameter |
| EN 50160 |
Compliance with standard |
| Programmable PQ limits |
Enables user defined limits for local standards compliance |
| Standards Compliance |
| Harmonics |
IEC 61000-4-7: Class 1 |
| IEEE 519 (short time and very short time harmonics) |
| Power quality |
IEC 61000-4-30 Class A, IEC 62586-1, IEC 62586-2 (PQI-A-PI device) |
| Power |
IEEE 1459 |
| Power quality compliance |
EN 50160 |
| Safety |
General: IEC 61010-1: Pollution Degree 2 |
| Measurement: IEC 61010-2-033: CAT IV 600 V / CAT III 1000 V |
| Power Supply: Overvoltage Category IV, Pollution Degree 2 |
| Li-ion Battery: IEC 62133 |
| Interfaces |
| USB-A |
File transfer via USB flash drive, firmware updates, max. supply current: 120 mA |
| WiFi |
File transfer and remote control via direct connection or WiFi infrastructure |
| Bluetooth |
Read auxiliary measurement data from Fluke Connect® 3000 series modules (requires supported USB to BLE or WiFi/BLE adapter, check for availability) |
| USB-mini |
Data download device to PC |
| Voltage Inputs |
| Number of inputs |
4 (3 phases referenced to neutral) |
| Maximum input voltage |
1000 Vrms, CF 1.7 |
| Input impedance |
10 MΩ |
| Bandwidth |
42.5 Hz to 3.5 kHz |
| Scaling |
1:1 and variable |
| Measurement category |
1000 V CAT III/600 V CAT IV |
| Current Inputs |
| Number of inputs |
4 (3 phases and neutral), mode selected automatically for attached sensor |
| Input voltage |
Clamp input: 500 mVrms/50 mVrms; CF 2.8 |
| Rogowski coil input: 150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4 all at nominal probe range |
| Range |
1 A to 150 A/10 A to 1500 A with thin flexible current probe i17XX-flex1500 IP 24 |
| 3 A to 300 A/30 A to 3000 A with thin flexible current probe i17XX-flex3000 IP 24 |
| 6 A to 600 A/60 A to 6000 A with thin flexible current probe i17XX-flex6000 IP 36 |
| 40 mA to 4 A/0.4 A to 40 A with 40 A clamp i40s-EL |
| Bandwidth |
42.5 Hz - 3.5 kHz |
| Scaling |
1:1 and variable |
| Auxiliary Inputs |
| Number of inputs |
2 (Analog with auxiliary adapter, or up to 2 BLE devices simultaneously) |
| Input range |
0 to ± 10 V dc, or 0 to ± 1000 V dc (with optional adapter), 1 reading/s |
| Scale factor |
Format: mx + b (gain and offset) user configurable |
| Displayed units |
User configurable (7 characters, for example, °C, psi, or m/s) |
| Wireless Bluetooth connection (check for availability) |
| Number of inputs |
2 |
| Supported modules |
Fluke Connect® 3000 series |
| Acquisition |
1 reading/s |
| Environmental Specifications |
| Operating temperature |
-25 °C to +50 °C (-13 °F to 122 °F)1 |
| Storage temperature |
Without battery: -25 °C to +60 °C (-13 °F to 140 °F), with battery: -20 °C to +50 °C (−4 °F to 122 °F) |
| Operating humidity |
IEC 60721-3-3: 3K6: |
| -25 °C to +30 °C (-13 °F to +86 °F): ≤ 100 % |
| 40 °C (104 °F): 55 % |
| 50 °C (122 °F): 35 % |
| Operating altitude |
2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV) |
| Storage altitude |
12,000 m |
| Enclosure |
IEC 60529: IP50 |
| IEC 60529: IP65 with IP65 rated voltage connector |
| Vibration |
IEC 60721-3-3 / 3M2 |
| Electromagnetic compatibility (EMC) |
EN 61326-1: Industrial CISPR 11: Group 1, Class A |
| IEC 61000-6-5 Power station environment |
| Korea (KCC): Class A Equipment (industrial broadcasting and communication equipment) |
| USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 |
| General Specifications |
| Warranty |
Two-years (battery not included) |
| Accessories: one-year |
| Calibration cycle: two-years |
| Dimensions |
23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in) |
| Weight |
Instrument: 1 kg (2.2 lb) |
| Tamper protection |
Accept securing cables (max. Φ 6mm) |
| 1Warm up the product to -10 °C (+14 °F) before you power the unit on |
| i17XX-FLEX1.5KIP Flexible Current Probe Specifications |
| Measuring range |
1 to 150 A ac/10 to 1500 A ac |
| Probe cable length |
610 mm (24 in) |
| Probe cable diameter |
7.5 mm (0.3 in) |
| Weight |
170 g (0.38 lb) |
| Minimum bending radius |
38 mm (1.5 in) |
| Nondestructive current |
100 kA (50/60 Hz) |
Temperature coefficient over
operating temperature range |
0.05 % of reading/°C (0.028 % of reading/°F) |
| Working voltage |
1000 V CAT III, 600 V CAT IV |
| Output cable length |
2.0 m (6.5 ft) |
| Probe cable material |
TPR |
| Weight |
115 g |
| Probe cable material |
TPR |
| Coupling material |
POM + ABS/PC |
| Output cable |
TPR/PVC |
| Operating temperature |
-20 °C to +70 °C (-4 °F to 158 °F) temperature of conductor under test shall not exceed 80 °C (176 °F) |
| Temperature, non-operating |
-40 °C to +80 °C (-40 °F to 176 °F) |
| Relative humidity, operating |
15% to 85% non-condensing |
| IP rating |
IEC 60529: IP65 |
| Warranty |
One-year |
