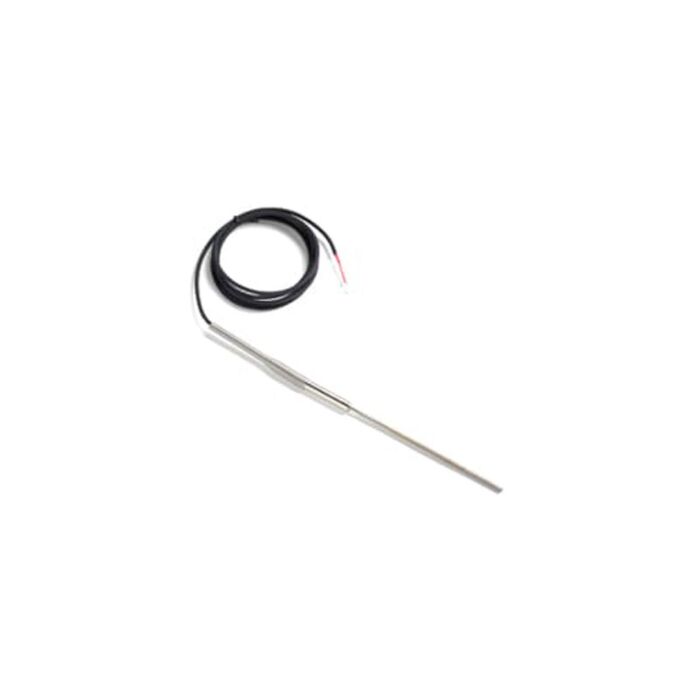

Fluke Calibration 5627A-12-P RTD Industrial Probe, 12" x 1/4"
RTD Industrial Probe, 12" x 1/4" OD

Order #: 5627A-12-P

Mfg #: 3377081

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,199.00

Fluke Calibration 5627A-12-P RTD Industrial Probe, 12" x 1/4"

RTD Industrial Probe, 12" x 1/4" OD

Order #: 5627A-12-P

Mfg #: 3377081

$1,199.00
Availability:
In stock
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The Fluke Calibration 5627A12P Precision Industrial RTD Probe with INFO-CON for 1523/1524, 12 in. x 1/4 in., -200 °C to 420 °C has a temperature range of up to 420 °C and an accuracy as good as ± 0.025 °C. This precision thermometer is shipped with its ITS-90 coefficients and a calibration table in 1 °C increments. One of the best features of the 5627A-12-P sensor is that it conforms to the standard 385 curve, letting you use your DIN/IEC RTD meters fully.

The 5627A-12-P is manufactured using a coil suspension element design for increased shock and vibration resistance. It has a mineral-insulated sheath with a minimum bend radius of 19 mm (3/4-inch) for flexibility and durability. It is individually calibrated and includes a NVLAP-accredited report of calibration from the manufacturer with lab code 200706-0.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.

Specifications

Resistance Nominal 100 Ω
Temperature Coefficient 0.00385 Ω/Ω/ °C nominal
Temperature Range ?200 °C to 420 °C (5627A-6 and 5627A-9 to 300 °C; transition and cable temperature: 0 °C to 150 °C)
Drift Rate (k=2) ± 0.04 °C at 0 °C after 100 hours at 420 °C
Sheath Material 316 Stainless Steel
Leads PTFE-insulated, nickel-plated stranded copper, 22 AWG
Termination Specify. See Ordering Information.
Time Constant Four seconds maximum for 63.2 % response to step change in water moving at 3 fps.
Bending Radius Sheath may be ordered with a bend on a minimum radius of 19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip. (Fluke lab requires 20 cm [8 in] of unbent sheath to re-calibrate.)
Calibration Includes manufacturer's NVLAP-accredited (lab code 200706-0) calibration and table with R vs. T values in 1 °C increments from -196 °C to 500 °C (to 300 °C for 5627A-6 and 5627A-9).
ITS-90 coefficients included.
Immersion At least 100 mm (4 in) recommended
Calibrated Accuracy
