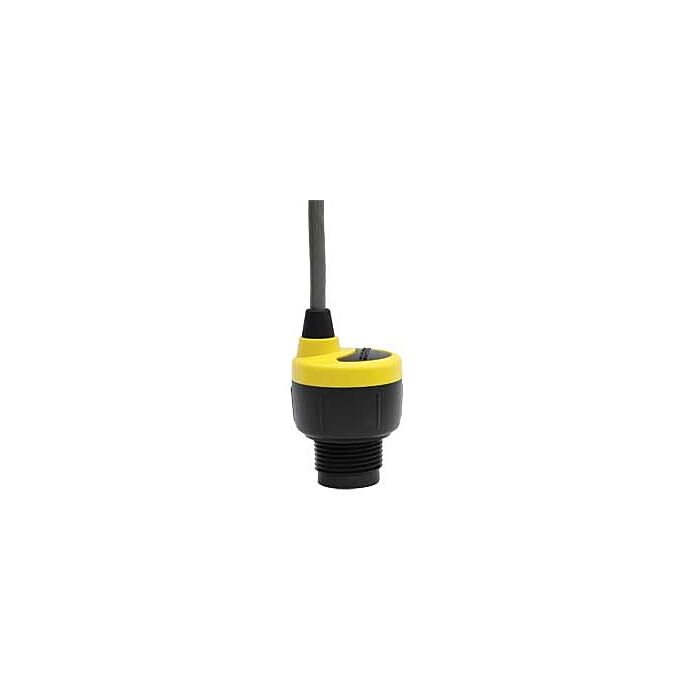

Flowline DL14-00
EchoPod Ultrasonic Level Switch NPT,4/A Relays,24VDC
Order #: DL14-00
Mfg #: DL14-00
$450.00
Flowline DL14-00
EchoPod Ultrasonic Level Switch NPT,4/A Relays,24VDC
Order #: DL14-00
Mfg #: DL14-00
$450.00
Availability: Ships in 4-6 weeks
![Loading...](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
- Without FOB
- Switch and control functions with continuous level measurement output up to 49.2”
- Configuration is fast and easy via WebCal Software and USB adapter
- Narrow 2” beam width and short 2” dead band optimized for small tanks
- Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail safety
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
- Range: 49.2" (1.25m)
- Accuracy: 0.125" (3mm)
- Resolution: 0.019" (0.5mm)
- Dead band: 2" (5cm)
- Beam width: 2" (5cm)
- Configuration: WebCal® PC Windows® USB 2.0 USB 2.0
- Memory: Non-volatile
- Supply voltage: 24 VDC (loop)
- Consumption: 0.5W
- Loop resist.: 400O max
- Signal output: 4-20 mA, two-wire
- Signal invert: 4-20 mA or 20-4 mA
- Signal fail-safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last
- Contact type: (4) SPST relays
- Contact rating: 60 VA, 1A maximum
- Contact fail-safe: Power loss: Hold last Power on: Open, close or hold last
- Hysteresis: Selectable
- Process temp.: F: 20° to 140°/C: -7° to 60°
- Temp. comp.: Automatic
- Ambient temp.: F: -31° to 140°/C: -35° to 60°
- Pressure: MWP = 30 PSI (2 bar)
- Enclosure rating: Type 6P, encapsulated, corrosion resistant & submersible
- Encl. material: Polycarbonate
- Strain relief mat.: Santoprene
- Trans. material: PVDF
- Cable jacket mat.: Polyurethane
- Cable type: 9-conductor, shielded
- Cable length: 48" (1.2m)
- Process mount: 1" NPT (1" G)
- Mount gasket: Viton®
- Classification: General purpose
- Compliance: CE, RoHS
- Approvals: cFMus
Each Unit Includes
- Multi-Function Ultrasonic Level Transmitter
- Quickstart Guide
